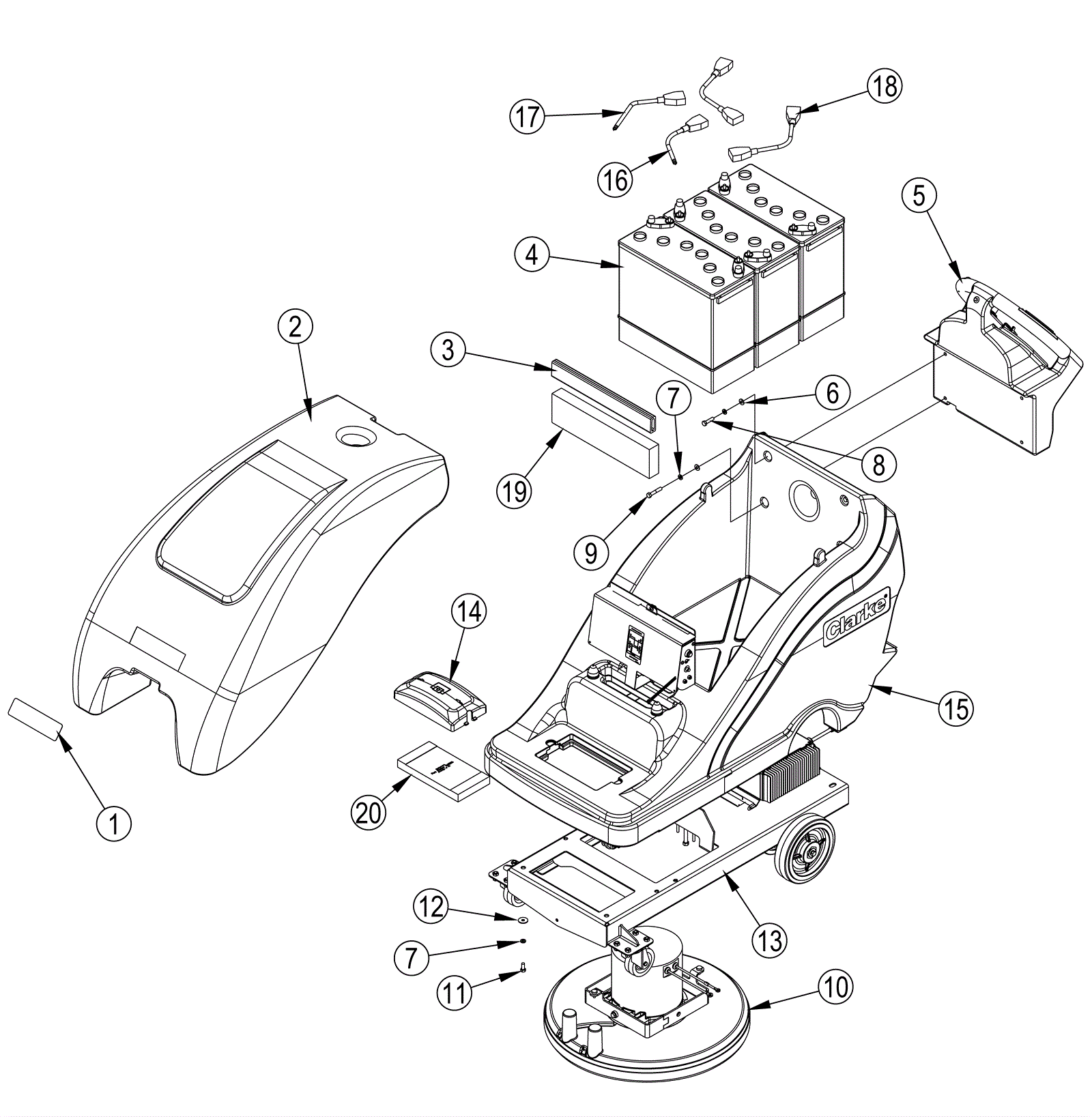

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
372-1262
|
Ultra speed decal |
1 |
|
|
2 |
270-0619
|
Top cover |
1 |
|
|
3 |
272-7441
|
Battery spacer |
1 |
|
|
4a |
162-0002
|
12V 185Ah wet battery (SNSR) |
3 |
|
|
4b |
162-0045
|
12V 140Ah AGM battery |
3 |
|
|
5 |
N/A
|
Not available |
1 |
(Handle) |
|
6 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
|
7 |
999-0028
|
Washer 5/16 split lock plain finish |
8 |
|
|
8 |
170-3357
|
Screw 5/16-18x1 1/4 hex head |
2 |
|
|
9 |
999-0551
|
Bolt 5/16-18 x 1 3/4 hex head stainless steel |
2 |
|
|
10 |
N/A
|
Not available |
1 |
(Head assembly) |
|
11 |
999-0132
|
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
4 |
|
|
12 |
999-0160
|
Washer 1/4 x 1 1/4 fender zinc plated |
4 |
|
|
13 |
N/A
|
Not available |
1 |
(Frame assembly) |
|
14 |
272-8219
|
Dust bag cover |
1 |
|
|
15 |
N/A
|
Not available |
1 |
(Body assembly) |
|
16 |
272-8514
|
Positive battery cable |
1 |
|
|
17 |
272-8515
|
Negative battery cable |
1 |
|
|
18 |
272-8585
|
Battery jumper cable |
2 |
|
|
19 |
272-7420
|
Battery spacer |
1 |
|
|
20 |
172-3066
|
Vacuum bag (pkg of 10) |
1 |
|
|
N/S |
370-2294
|
KIT 36V BTY MAINT. SYSTEM (OBSOLETE) |
1 |
|
|
N/S |
272-8517
|
Burnishing pad (tan) (pkg of 5) |
1 |
|
|
N/S |
272-8518
|
Burnishing pad (aqua) (pkg of 5) |
1 |
|
|
N/S |
272-8519
|
Burnishing pad (natural blend) (pkg of 5) |
1 |
|
|
