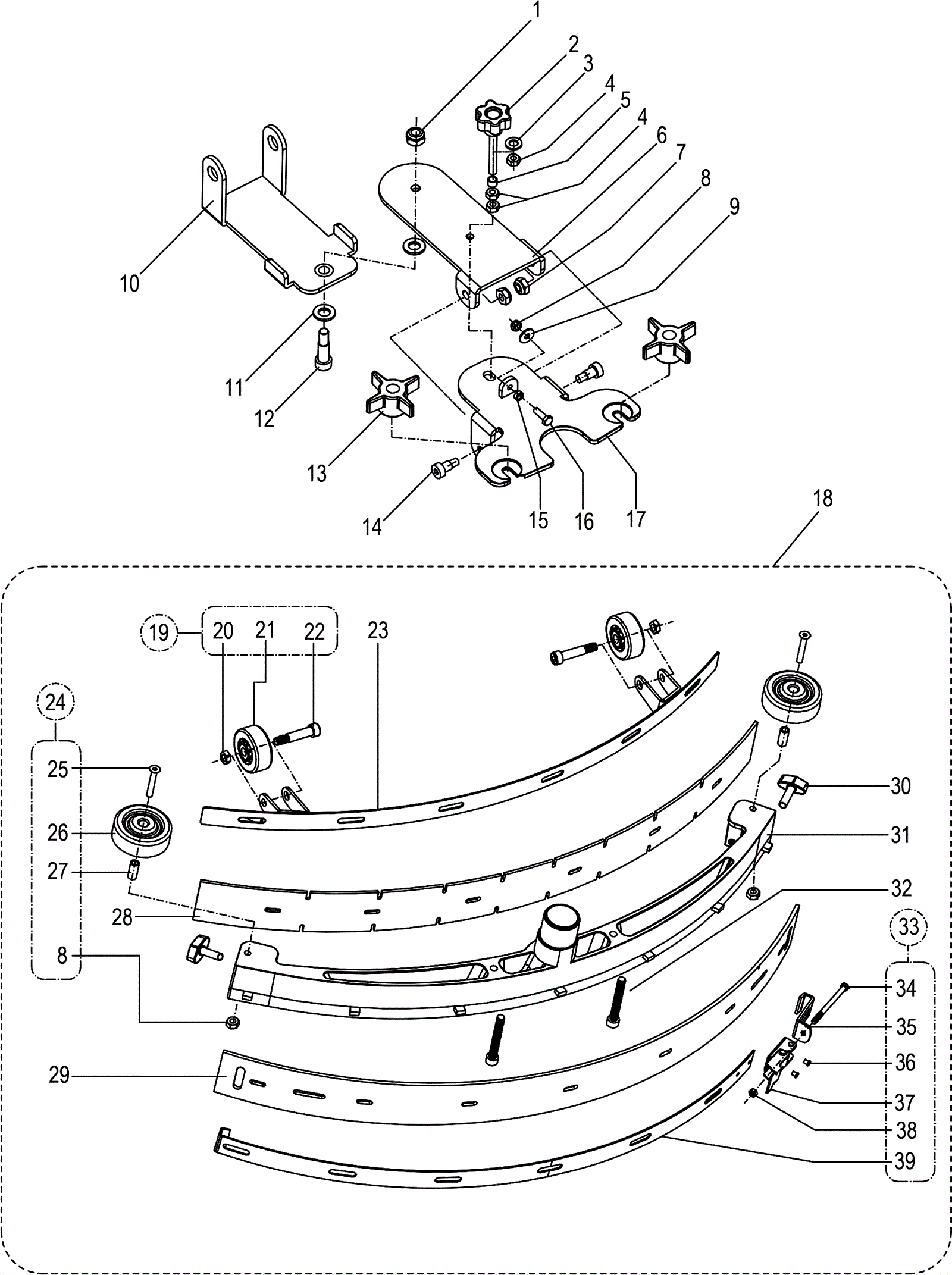

CA30 17E Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 240-2125 Nut M10 lock $11.32 1 usually ships 13-18 days
2 240-2115 Knob M8 x 55mm $11.32 1 usually ships 13-18 days
3 240-5375 WASHER 8.4X 18X 2 $11.32 1 usually ships 13-18 days
4 240-2118 Nut M8 $11.32 3 usually ships 13-18 days
5 240-6074 SPACER $11.32 1 usually ships 13-18 days
6 240-6063 BACK-SQUEEGEE-SUPPORT $33.51 1 usually ships 13-18 days
7 240-2120 Nut M8 lock $11.32 2 usually ships 13-18 days
8 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 3 ships same day
9 999-1261 Washer M6 flat stainless steel $0.99 1 ships same day
10 240-6064 FRONT-SQUEEGEE-SUPPORT $56.30 1 usually ships 13-18 days
11 240-2114 Washer $11.32 2 usually ships 13-18 days
12 240-6073 SCREW SHOULDER $11.32 1 usually ships 13-18 days
13 240-0532 Knob M8 $16.93 2 ships same day
14 240-2121 Screw M8 x 10 x 11.5mm shoulder $11.32 2 usually ships 1-5 days
15 240-0513 Bushing $11.32 1 usually ships 13-18 days
16 240-0357 Screw M6 x 20mm $11.32 1 usually ships 13-18 days
17 240-6062 SQUEEGEE-SUPPORT $41.22 1 usually ships 13-18 days
18 240-6075 17 IN SQUEEGEE KIT $270.07 1 (includes 8, 19-39) usually ships 13-18 days
19 240-1148 Squeegee Roll Wheel Kit $18.72 2 (includes 20-22) ships same day
20 240-0348 Nut 5/16 locking $11.32 2 usually ships 13-18 days
21 240-0524 2 inch wheel $14.95 2 ships same day
22 240-0523 Bolt M9.5 x 31.5mm shoulder $16.93 2 usually ships 13-18 days
23 240-6057 17 IN STRAP-SQUEEGEE FRONT $27.91 1 usually ships 13-18 days
24 240-2279 Bumper roller wheel kit $13.13 2 (includes 8, 25-27) usually ships 13-18 days
25 240-5430 SCREW-SHOULDER M6X40 $11.32 2 usually ships 13-18 days
26 240-5922 BUMPER ROLLER $11.32 2 usually ships 13-18 days
27 240-5923 SPACER $11.32 2 usually ships 13-18 days
28 240-6058 17 inch front blade $24.31 1 ships same day
29 240-6059 17 inch rear blade $29.72 1 ships same day
30 240-2143 Thumb screw $11.32 2 ships same day
31 240-6056 SQUEEGEE 17 IN $80.75 1 usually ships 13-18 days
32 240-6070 SQUEEGEE SCREW $11.32 2 usually ships 13-18 days
33 240-6077 17 IN STRAP-SQUEEGEE BACK KIT $35.28 1 (includes 34-39) usually ships 13-18 days
34 240-2119 Screw M5 x 60mm $11.32 1 usually ships 13-18 days
35 240-6069 HOOK $11.32 1 usually ships 13-18 days
36 240-0521 Rivet M4 x 5mm $11.32 2 usually ships 13-18 days
37 240-5786 LATCH HOOD $37.94 1 usually ships 13-18 days
38 240-0522 Nut M5 lock $8.53 1 ships same day
39 240-6060 17 IN STRAP-SQUEEGEE BACK $18.72 1 usually ships 13-18 days
