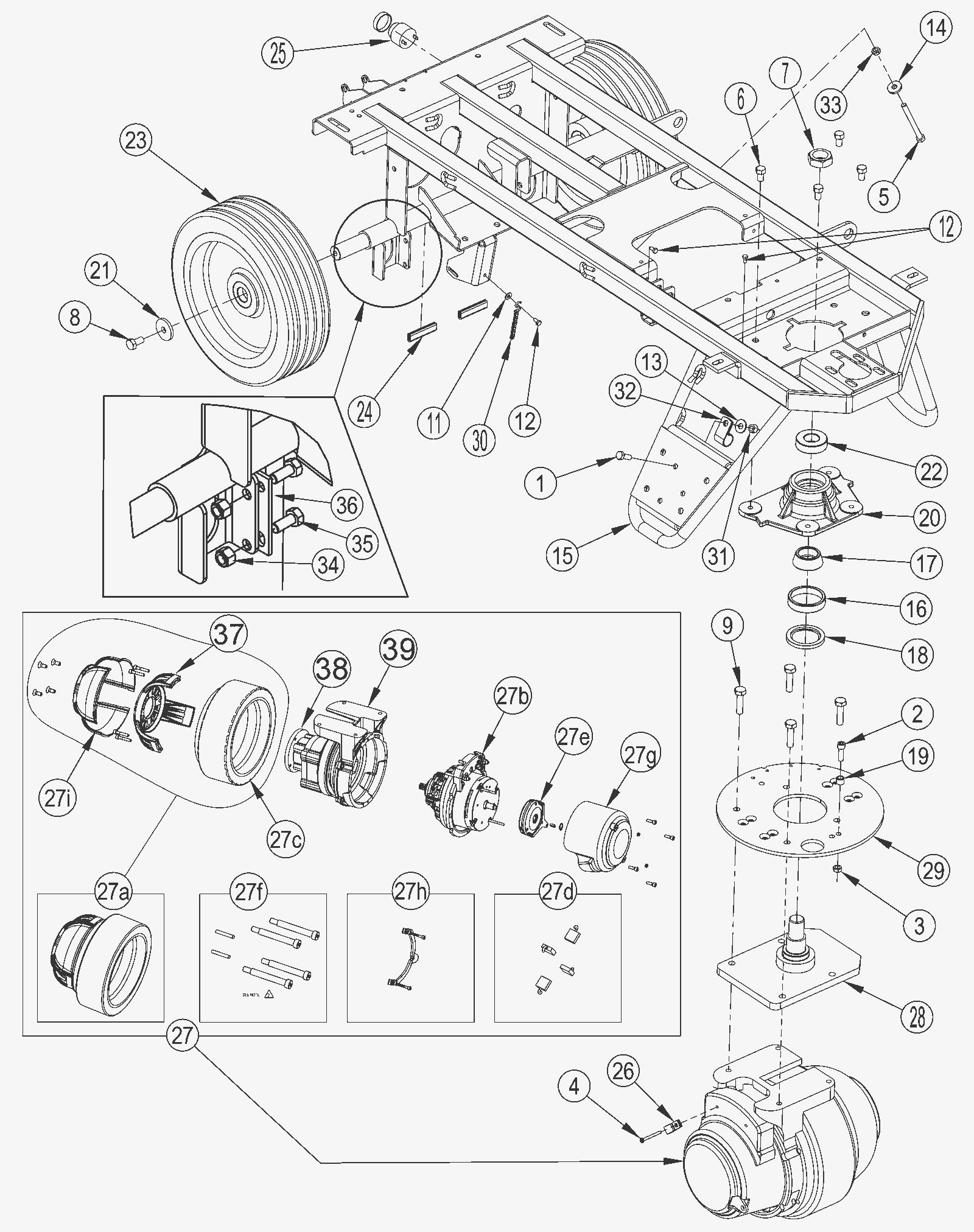

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
472-4798
|
HARDWARE KIT-CHASSIS SYSTEM |
1 |
(Screw 5/16-18 x .88) (only available in kit) |
|
2 |
999-0546
|
Screw 5/16-18 x 1 socket head alloy plain finish |
1 |
|
|
3 |
472-4746
|
PLATE KIT-STEERING |
1 |
(Nut) (only available in kit) |
|
4 |
472-4746
|
PLATE KIT-STEERING |
1 |
(Screw) (only available in kit) |
|
5 |
472-4798
|
HARDWARE KIT-CHASSIS SYSTEM |
1 |
(Screw 5/16-18 x 3 1/2 thread to head hex) (only available in kit) |
|
6 |
272-7447
|
Bearing block assembly |
4 |
(Screw) (only available in kit) |
|
7 |
999-1867
|
Nut 1-14 hex lock zinc finish |
1 |
|
|
8 |
272-1605
|
Bolt M10-1.5 x 20mm hex head nylon lock |
2 |
|
|
9 |
999-0775
|
Screw M10-1.5 x 40mm hex head stainless steel |
4 |
|
|
11 |
472-4748
|
CHAIN KIT-GROUND |
1 |
(Washer) (only available in kit) |
|
12 |
472-4748
|
CHAIN KIT-GROUND |
3 |
(Screw) (only available in kit) |
|
13 |
999-1964
|
Washer 5/16 SAE flat zinc |
1 |
|
|
14 |
472-4798
|
HARDWARE KIT-CHASSIS SYSTEM |
1 |
(Washer) (only available in kit) |
|
15 |
272-6330
|
Chassis weldment |
1 |
|
|
16a |
N/A
|
Not available |
1 |
(Bearing cup) (only available in kit) |
|
16b |
272-7447
|
Bearing block assembly |
1 |
(Bearing cup) (only available in kit) |
|
17a |
N/A
|
Not available |
1 |
(Bearing cone) (only available in kit) |
|
17b |
272-7447
|
Bearing block assembly |
1 |
(Bearing cone) (only available in kit) |
|
18a |
N/A
|
Not available |
1 |
(Seal) (only available in kit) |
|
18b |
272-7447
|
Bearing block assembly |
1 |
(Seal) (only available in kit) |
|
19 |
472-4746
|
PLATE KIT-STEERING |
1 |
(Bushing) (only available in kit) |
|
20 |
272-7447
|
Bearing block assembly |
1 |
(Bearing block) (only available in kit) |
|
21 |
272-1606
|
Washer flat |
2 |
|
|
22a |
N/A
|
Not available |
1 |
(Bearing ball) (only available in kit) |
|
22b |
272-7447
|
Bearing block assembly |
1 |
(Bearing ball) (only available in kit) |
|
23a |
172-3283
|
Wheel and bearing assembly |
2 |
|
|
23b |
172-2466
|
Wheel kit (OBSOLETE) |
2 |
|
|
24 |
172-8803
|
Edge trim |
2 |
|
|
25 |
172-8839
|
Backup alarm |
1 |
|
|
26 |
472-4746
|
PLATE KIT-STEERING |
1 |
(Clamp) (only available in kit) |
|
27 |
272-8807
|
Drive wheel motor |
1 |
(includes 27a-27i) |
|
27a |
272-5562
|
Tire with hub |
1 |
|
|
27b |
272-8808
|
Replacement drive motor |
1 |
|
|
27c |
272-8809
|
Tire |
1 |
|
|
27d |
272-8810
|
Carbon brush kit |
1 |
|
|
27e |
272-8811
|
Parking brake |
1 |
|
|
27f |
272-8604
|
Tire puller kit |
1 |
|
|
27g |
272-8598
|
Drive motor cover |
1 |
|
|
27h |
272-8813
|
Brake lever kit |
1 |
|
|
27i |
272-8597
|
Gearbox motor cover |
1 |
|
|
28 |
472-4747
|
SPINDLE KIT-MOTOR |
1 |
(Spindle weldment) (only available in kit) |
|
29 |
472-4746
|
PLATE KIT-STEERING |
1 |
(Steering plate) (only available in kit) |
|
30 |
472-4748
|
CHAIN KIT-GROUND |
1 |
(Chain) (only available in kit) |
|
31 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
|
32 |
472-4798
|
HARDWARE KIT-CHASSIS SYSTEM |
1 |
(Clamp) (only available in kit) |
|
33 |
999-1019
|
Nut 5/16-18 hex jam stainless steel |
1 |
|
|
34 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
2 |
(after November 2017) |
|
35 |
N/A
|
Not available |
2 |
(Screw 5/16-18 x 3/4 hex nylon lock) (after November 2017) |
|
36 |
N/A
|
Not available |
1 |
(Bracket) (after November 2017) |
|
37 |
N/A
|
Not available |
1 |
(Aluminum casting) |
|
38 |
N/A
|
Not available |
1 |
(Gear box) |
|
39 |
N/A
|
Not available |
1 |
(Bracket) |
|
N/S |
472-4746
|
PLATE KIT-STEERING |
1 |
(includes 2-4,9,19,26, and 29) |
|
N/S |
472-4747
|
SPINDLE KIT-MOTOR |
1 |
(includes 7 and 28) |
|
N/S |
472-4748
|
CHAIN KIT-GROUND |
1 |
(includes 11,12, and 30) |
|
N/S |
472-4798
|
HARDWARE KIT-CHASSIS SYSTEM |
1 |
(includes 1,5,13,14,31-33) |
|
N/S |
N/A
|
Not available |
1 |
(includes 16a,17a,18a, and 22a) |
|
N/S |
272-7447
|
Bearing block assembly |
1 |
(inlcudes 6,16b,17b,18b, and 22b) |
|
