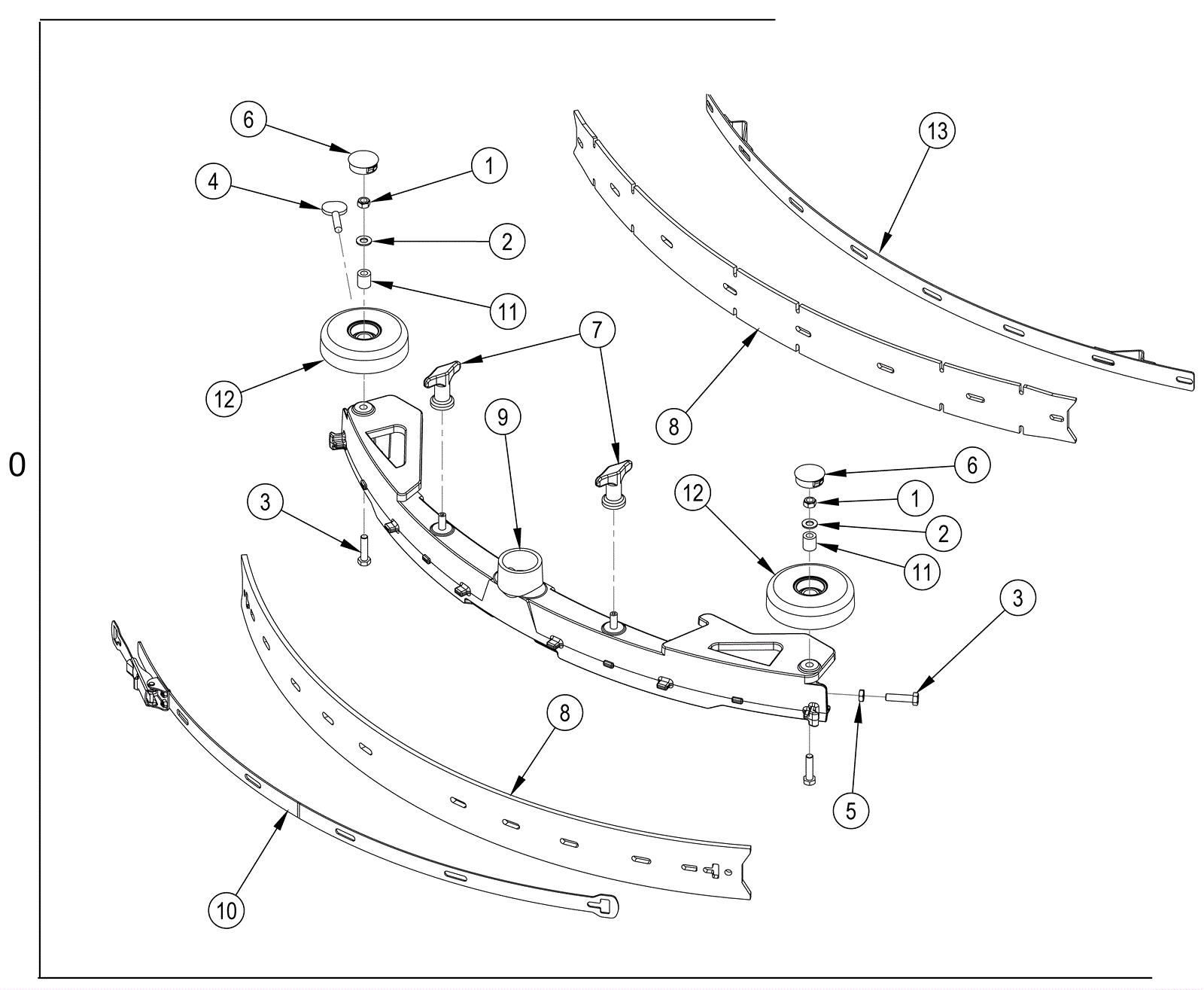

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
272-3656
|
28 inch squeegee assembly |
1 |
(includes 1-13) |
|
1 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
2 |
|
|
2 |
999-9004
|
Washer 5/16 SAE flat stainless steel |
2 |
|
|
3 |
999-0688
|
Bolt 5/16-18 x 1 1/4 hex head stainless steel |
3 |
|
|
4 |
272-3671
|
Screw 5/16-18 x 1 1/4 thumb stainless steel |
1 |
|
|
5 |
999-1019
|
Nut 5/16-18 hex jam stainless steel |
1 |
|
|
6 |
272-9868
|
Button plug |
2 |
|
|
7 |
172-4099
|
Nut 5/16-18 thumb |
2 |
|
|
8a |
372-4042
|
Squeegee blade kit 28 inch gum rubber |
1 |
(standard) |
|
8b |
172-4688
|
Squeegee blade kit 34 inch gum rubber |
1 |
(standard)
(standard) |
|
8c |
272-3673
|
Squeegee blade kit 28 inch urethane |
1 |
(optional) |
|
8d |
572-8127
|
Polyurethane squeegee blade kit (L) |
1 |
(optional) |
|
8e |
272-3675
|
Squeegee blade kit 28 inch Linatex (red) |
1 |
(optional) |
|
8f |
272-3682
|
Squeegee blade kit 34 inch gum rubber (red) |
1 |
(optional) |
|
9a |
272-3656
|
28 inch squeegee assembly |
1 |
(28 inch squeegee casting) (28B and 28D)
(only available in kit) |
|
9b |
272-7245
|
34 inch squeegee assembly |
1 |
(34 inch squeegee casting) (34D)
(only available in kit) |
|
10a |
272-3679
|
Band clamp |
1 |
(28B and 28D) |
|
10b |
272-3686
|
Band clamp |
1 |
(34D) |
|
11 |
272-9882
|
Bushing |
2 |
|
|
12 |
272-9881
|
Wheel |
2 |
|
|
13a |
272-3677
|
Front strap |
1 |
(28B and 28D) |
|
13b |
272-3683
|
Front strap |
1 |
(34D) |
|
