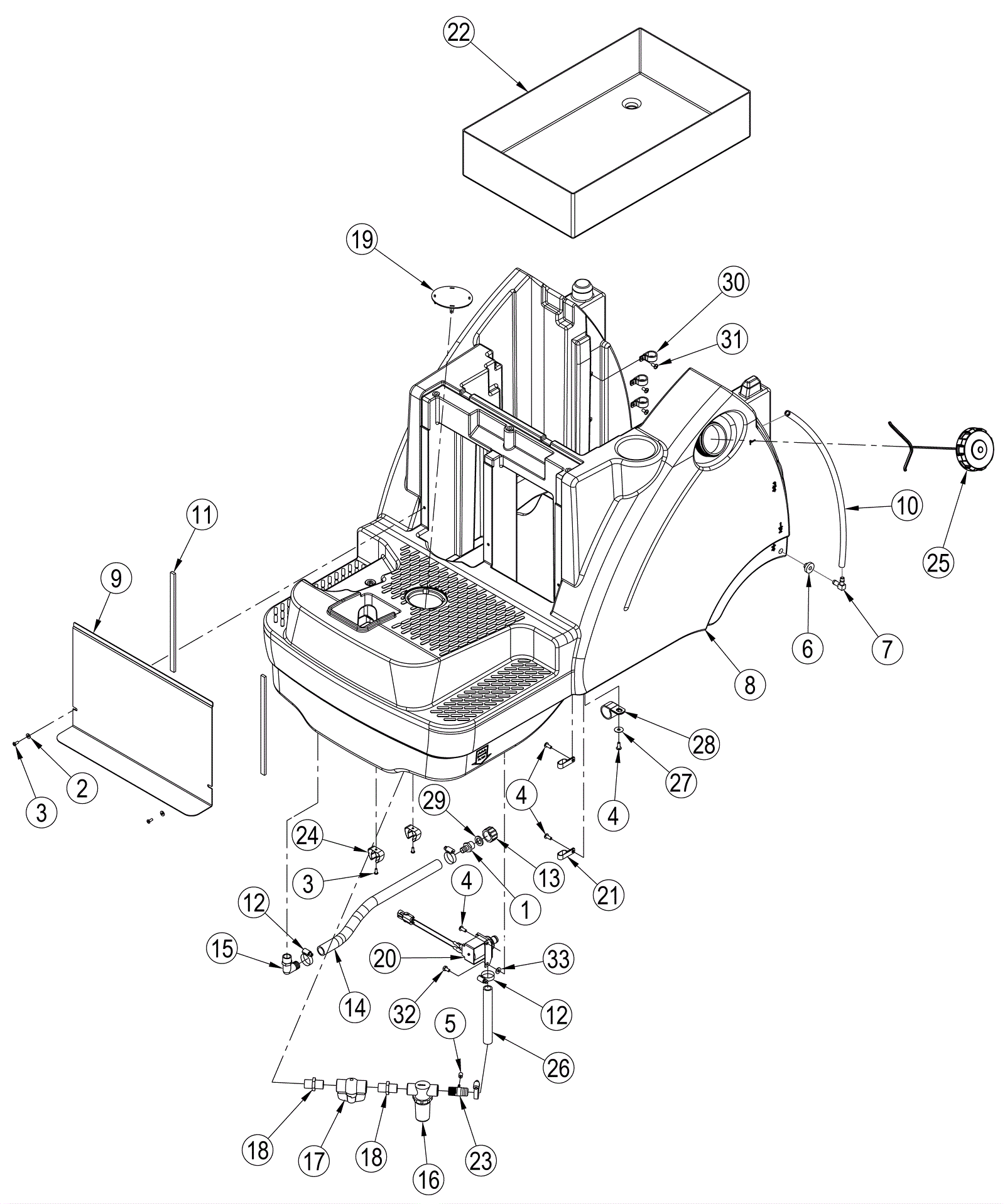

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
472-4749
|
HOSE KIT-DRAIN |
1 |
(Barb) (only available in kit) |
|
2 |
999-1862
|
Washer #10 flat SAE stainless steel |
2 |
|
|
3 |
999-0267
|
Screw 10-24 x 1/2 pan head phillips zinc |
4 |
|
|
4 |
472-4750
|
VALVE AND FILTER KIT |
3 |
(Screw) (only available in kit) |
|
5 |
472-4750
|
VALVE AND FILTER KIT |
1 |
(Rubber tip) (only available in kit) |
|
6 |
472-4751
|
SIGHT GAUGE KIT |
1 |
(Grommet) (only available in kit) |
|
7 |
472-4751
|
SIGHT GAUGE KIT |
1 |
(90 degree hose barb) (only available in kit) |
|
8 |
472-4665
|
TANK-SOLUTION |
1 |
|
|
9 |
472-4705
|
COVER-ELECTRICAL |
1 |
|
|
10 |
472-4751
|
SIGHT GAUGE KIT |
1 |
(PVC tube) (only available in kit) |
|
11 |
472-4735
|
GASKET-.25 X .50 X 11 |
2 |
|
|
12a |
472-4749
|
HOSE KIT-DRAIN |
4 |
(Hose clamp) (only available in kit) |
|
12b |
472-4749
|
HOSE KIT-DRAIN |
1 |
(Hose clamp) (only available in kit) |
|
13 |
472-4749
|
HOSE KIT-DRAIN |
1 |
(Nylon pipe cap) (only available in kit) |
|
14 |
472-4749
|
HOSE KIT-DRAIN |
1 |
(Hose) (only available in kit) |
|
15 |
472-4749
|
HOSE KIT-DRAIN |
1 |
(Elbow barb) (only available in kit) |
|
16 |
272-2342
|
Solution filter |
1 |
|
|
17 |
472-4750
|
VALVE AND FILTER KIT |
2 |
(Valve) (only available in kit) |
|
18 |
472-4750
|
VALVE AND FILTER KIT |
1 |
(Nipple) (only available in kit) |
|
19 |
172-8869
|
Spindle cap |
1 |
|
|
20 |
272-9265
|
Solenoid valve |
2 |
|
|
21 |
472-4750
|
VALVE AND FILTER KIT |
1 |
(Hose clamp) (only available in kit) |
|
22 |
272-8863
|
Battery box |
1 |
|
|
23 |
472-4750
|
VALVE AND FILTER KIT |
2 |
(Special tee) (only available in kit) |
|
24 |
472-4749
|
HOSE KIT-DRAIN |
1 |
(Hose clip) (only available in kit) |
|
25 |
272-9352
|
Raw cap with tether |
1 |
|
|
26 |
472-4750
|
VALVE AND FILTER KIT |
1 |
(Solution hose) (only available in kit) |
|
27 |
372-1512
|
Washer |
1 |
|
|
28 |
172-9261
|
P clamp |
1 |
|
|
29 |
472-4749
|
HOSE KIT-DRAIN |
3 |
(Washer flat rubber) (only available in kit) |
|
30 |
172-1154
|
P clamp |
3 |
|
|
31 |
999-0522
|
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
1 |
|
|
32 |
272-6383
|
Screw 1/4-20 x 3/4 hex loc stainless steel |
1 |
|
|
33 |
372-1011
|
Washer 1/4 |
1 |
|
|
N/S |
472-4749
|
HOSE KIT-DRAIN |
1 |
(includes 1,3,12a-15,24,and 29) |
|
N/S |
472-4750
|
VALVE AND FILTER KIT |
1 |
(includes 4,5,12b,16-18,21,23, and 26) |
|
N/S |
472-4751
|
SIGHT GAUGE KIT |
1 |
(includes 6,7,and 10) |
|
N/S |
472-4799
|
HARDWARE KIT-ELEC COVER |
1 |
(includes 2 and 3) |
|
