| # | Part | Description |
Req | Notes | Availability |
|---|
0 |

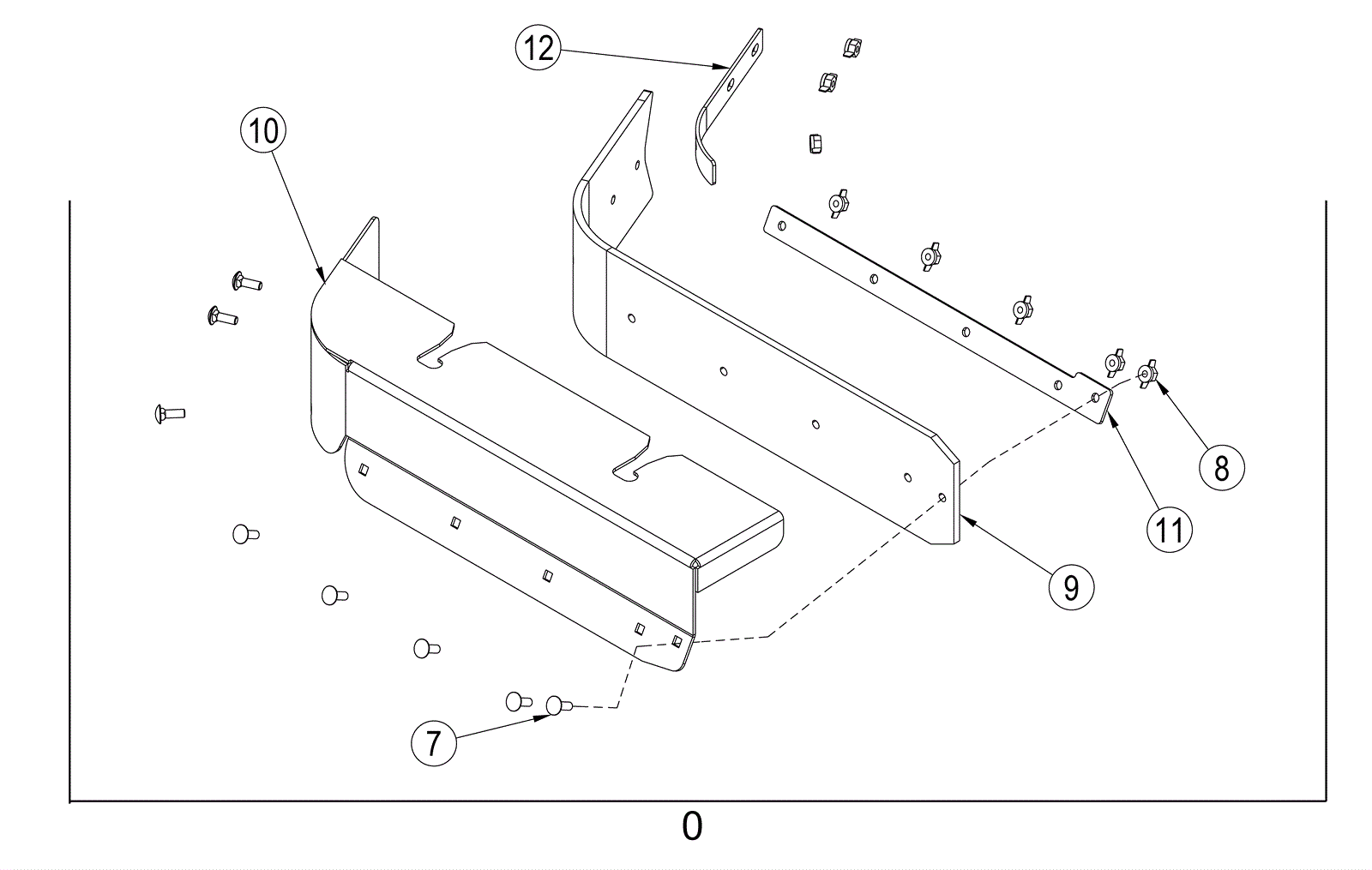

472-4698
|
RT SKIRT ASSY |
1 |
(includes 7-12) |
|
7 |
999-0963
|
Bolt 1/4-20 x 3/4 carriage head stainless steel |
8 |
|
|
8 |
999-1948
|
Nut 1/4-20 wing lock |
8 |
|
|
9a |
472-4808
|
BLADE KIT-GUM (OBSOLETE) |
1 |
(Standard) (Skirt blade gum rubber) (only available in kit) |
|
9b |
472-4809
|
BLADE KIT-PU (OBSOLETE) |
1 |
(Optional) (Skirt blade gum rubber) (only available in kit) |
|
9c |
472-4808
|
BLADE KIT-GUM (OBSOLETE) |
1 |
(Skirt blade gum rubber) (only available in kit) |
|
10 |
N/A
|
Not available |
1 |
(If replacing on a machine built before March 2013
you will also need to order 11 and 12)
(Right skirt weldment) |
|
11a |
472-4827
|
STRAP FRONT 28B RT |
1 |
(After February 2013) |
|
11b |
N/A
|
Not available |
1 |
(Before March 2013) (Strap) |
|
12a |
472-4829
|
STRAP REAR 28B RT |
1 |
(After February 2013) |
|
12b |
N/A
|
Not available |
1 |
(Before March 2013) (Strap) |
|
N/S |
472-4765
|
HARDWARE KIT-SKIRT |
1 |
|
|
N/S |
472-4808
|
BLADE KIT-GUM (OBSOLETE) |
1 |
|
|
