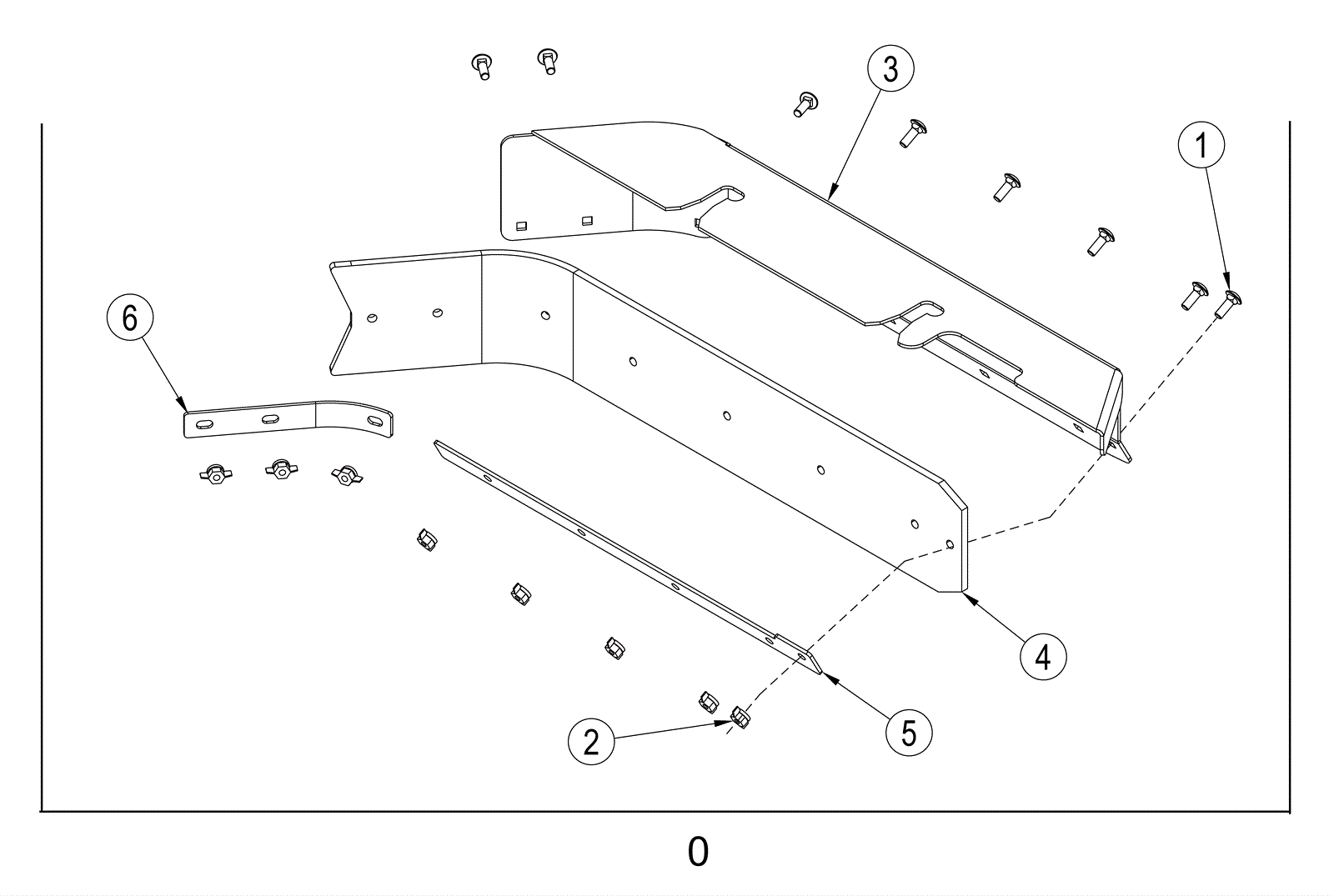

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
472-4696
|
LEFT SKIRT ASSY |
1 |
(Includes 1-6) |
|
1 |
999-0963
|
Bolt 1/4-20 x 3/4 carriage head stainless steel |
8 |
|
|
2 |
999-1948
|
Nut 1/4-20 wing lock |
8 |
|
|
3 |
270-8580
|
Left hand skirt weldment |
1 |
(If machine was built before March 2013 you will need to order 5a and 6a) |
|
4a |
472-4808
|
BLADE KIT-GUM (OBSOLETE) |
1 |
(Standard) (Squeegee blade gum rubber) (only available in kit) |
|
4b |
472-4809
|
BLADE KIT-PU (OBSOLETE) |
1 |
(Optional) |
|
4c |
472-4810
|
BLADE KIT-RED GUM |
1 |
(Optional) |
|
5a |
472-4826
|
STRAP FRONT 28B LT |
1 |
(After February 2013) |
|
5b |
N/A
|
Not available |
1 |
(Before March 2013) (Front strap) |
|
6a |
472-4828
|
STRAP REAR 28B LT |
1 |
(After February 2013) |
|
6b |
N/A
|
Not available |
|
(Before March 2013) (Front strap) |
|
N/S |
472-4765
|
HARDWARE KIT-SKIRT |
1 |
(inlcudes 1 and 2) |
|
N/S |
472-4808
|
BLADE KIT-GUM (OBSOLETE) |
1 |
(inlcudes 4a) |
|
