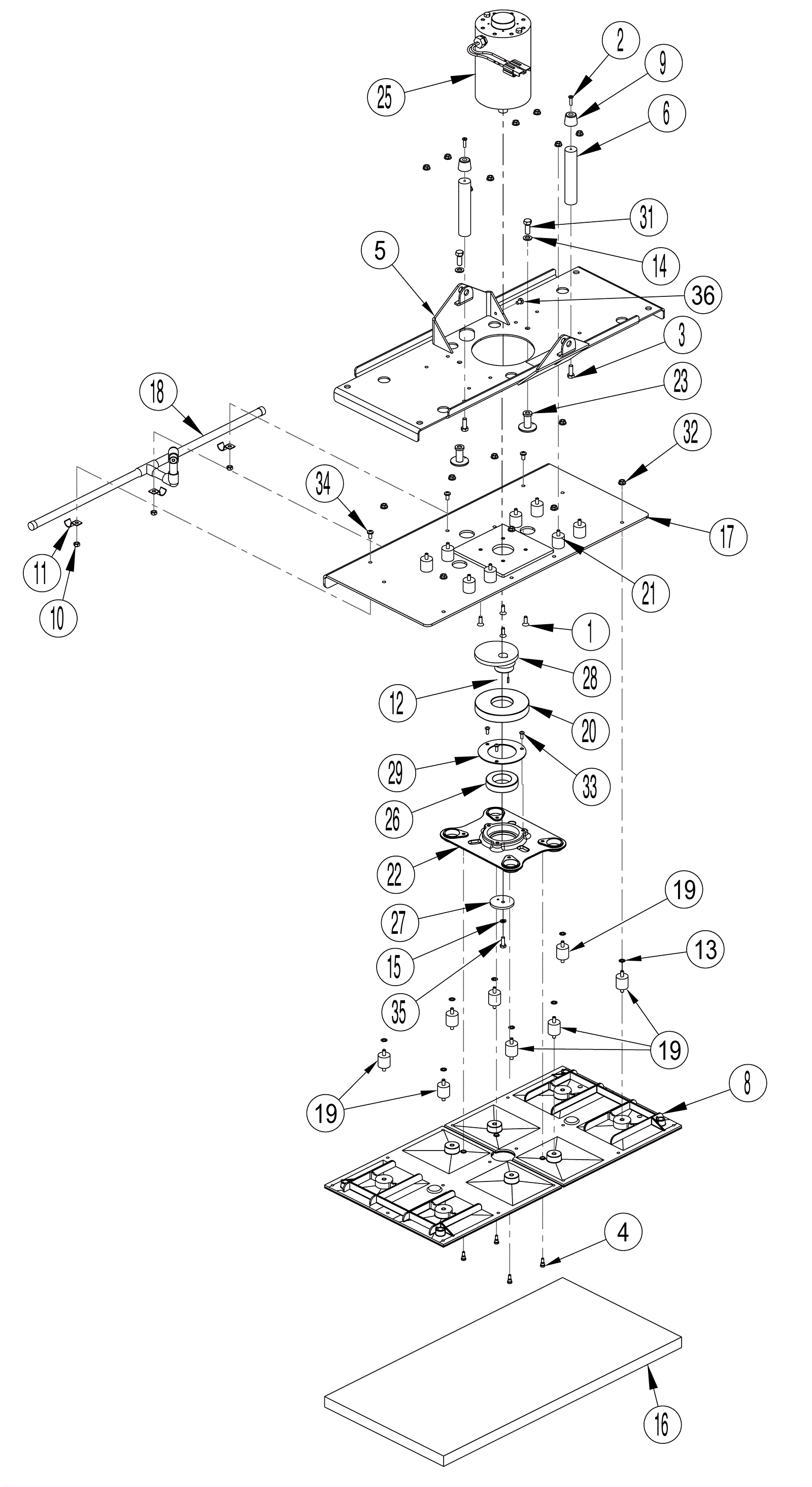

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
172-4274
|
Screw 1/4-20 x 3/4 flat socket head |
4 |
|
|
2 |
999-0705
|
Screw 10-24 x 3/4 pan head phillips stainless steel |
2 |
|
|
3 |
372-1136
|
Motor shroud |
2 |
|
|
4 |
472-7813
|
KIT-FLEXPLATE-BOOST 28 LG |
4 |
(Shoulder bolt) (only available in kit) |
|
5 |
472-4695
|
PLATE WELDT |
1 |
|
|
6 |
N/A
|
Not available |
2 |
(Rod) |
|
8 |
472-7813
|
KIT-FLEXPLATE-BOOST 28 LG |
2 |
(Flex plate) (only available in kit) |
|
9 |
272-8773
|
Stop mount |
2 |
|
|
10 |
999-0609
|
Nut 1/4-20 hex stainless steel |
3 |
|
|
11 |
170-0198
|
Hose clamp |
3 |
|
|
12a |
472-7813
|
KIT-FLEXPLATE-BOOST 28 LG |
1 |
(Pin) (only available in kit) |
|
12b |
270-0763
|
Eccentric and shield kit |
1 |
(Pin) (only available in kit) |
|
13 |
999-0017
|
Washer 1/4 external star lock |
8 |
|
|
14 |
999-0201
|
Washer 3/8 internal star lock |
2 |
|
|
15 |
999-0060
|
Washer 1/4 split lock plain finish |
1 |
|
|
16 |
255-9023
|
14 x 28 inch Premium Red Pad (pkg of 5) |
1 |
|
|
17 |
472-4693
|
BOOST PLATE WELDT-28 |
1 |
|
|
18 |
472-4694
|
MANIFOLD ASSY |
1 |
|
|
19a |
472-7813
|
KIT-FLEXPLATE-BOOST 28 LG |
8 |
(Isolator) (only available in kit) |
|
19b |
472-4819
|
ISOLATOR KIT |
8 |
(Isolator) (only available in kit) |
|
20 |
270-0763
|
Eccentric and shield kit |
1 |
|
|
21a |
472-7813
|
KIT-FLEXPLATE-BOOST 28 LG |
8 |
(Isolator) (only available in kit) |
|
21b |
472-4819
|
ISOLATOR KIT |
8 |
(Isolator) (only available in kit) |
|
22 |
472-7813
|
KIT-FLEXPLATE-BOOST 28 LG |
1 |
(Plate diver) (only available in kit) |
|
23 |
272-6745
|
Short stabilizer stud |
2 |
|
|
25a |
272-9948
|
24V brush motor |
1 |
|
|
25b |
172-8951
|
Carbon brush and spring kit |
1 |
|
|
26 |
270-0065
|
Bearing |
1 |
|
|
27 |
472-7813
|
KIT-FLEXPLATE-BOOST 28 LG |
1 |
(Retainer) (only available in kit) |
|
28a |
472-7813
|
KIT-FLEXPLATE-BOOST 28 LG |
1 |
(Eccentric) (only available in kit) |
|
28b |
270-0763
|
Eccentric and shield kit |
1 |
(Eccentric) (only available in kit) |
|
29 |
472-7813
|
KIT-FLEXPLATE-BOOST 28 LG |
1 |
(Bearing retainer) (only available in kit) |
|
31 |
999-0850
|
Bolt 3/8-24 x 1 hex head grade 5 plain finish |
2 |
|
|
32a |
472-7813
|
KIT-FLEXPLATE-BOOST 28 LG |
16 |
(Nut serrated flange) (only available in kit) |
|
32b |
472-4819
|
ISOLATOR KIT |
16 |
(Nut serrated flange) (only available in kit) |
|
33 |
999-0371
|
Screw 10-32 x 1/2 pan head phillips zinc plated |
3 |
|
|
34 |
999-0522
|
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
3 |
|
|
35 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
1 |
|
|
N/S |
472-7813
|
KIT-FLEXPLATE-BOOST 28 LG |
1 |
(includes 4,8,12a,13,15,19a,20a,21a,22,26,27,28a,29,32a,33, and 35) |
|
N/S |
472-4819
|
ISOLATOR KIT |
1 |
(inlcudes 13,19b,21b, and 32b) |
|
N/S |
270-0763
|
Eccentric and shield kit |
1 |
(includes 12b,20b, and 28b) |
|
