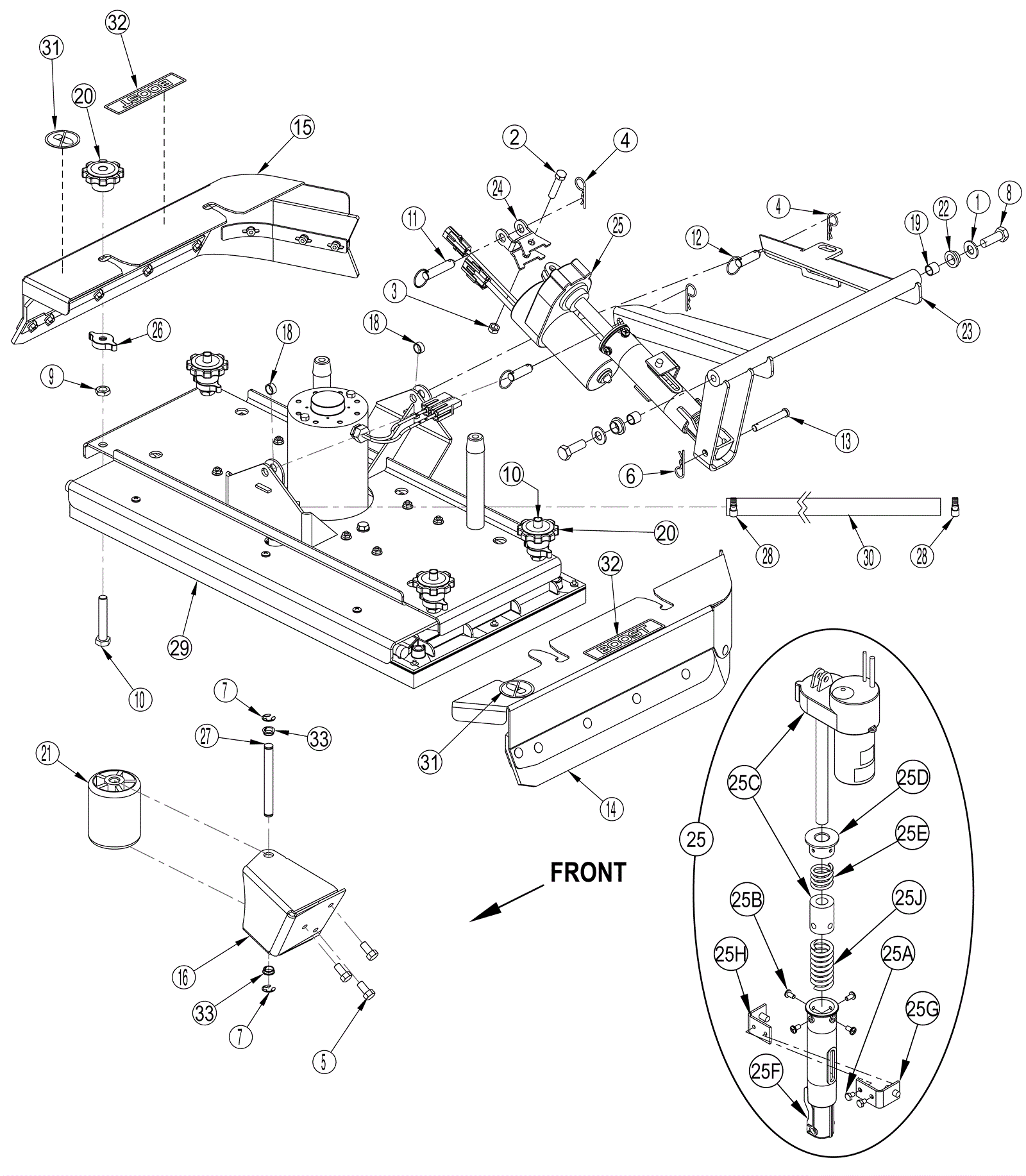

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0114
|
Washer 1/2 SAE flat |
2 |
|
|
2 |
999-1006
|
Screw 3/8-16 x 1 3/4 hex head stainless steel |
1 |
|
|
3 |
472-4763
|
HARDWARE KIT-ACTUATOR |
1 |
(Nut) (only available in kit) |
|
4a |
472-4763
|
HARDWARE KIT-ACTUATOR |
3 |
(Cotter pin) (only available in kit) |
|
4b |
472-4777
|
LIFT KIT-DECK |
3 |
(Cotter pin) (only available in kit) |
|
4c |
272-7446
|
Deck linkage hardware assembly |
3 |
(Cotter pin) (only available in kit) |
|
5 |
999-1232
|
Screw 5/16-18 x 3/4 hex head stainless steel |
3 |
|
|
6 |
472-4763
|
HARDWARE KIT-ACTUATOR |
1 |
(Cotter pin) (only available in kit) |
|
7 |
172-0269
|
Retaining ring |
2 |
|
|
8a |
472-4777
|
LIFT KIT-DECK |
2 |
(Screw M12-1.75 x 35mm) (only available in kit) |
|
8b |
272-7446
|
Deck linkage hardware assembly |
2 |
(Screw M12-1.75 x 35mm) (only available in kit) |
|
9 |
999-1377
|
Nut M12-1.75 hex jam |
4 |
|
|
10 |
999-1349
|
Screw M12-1.75 x 70mm full thread hex head stainless steel |
4 |
|
|
11 |
472-4763
|
HARDWARE KIT-ACTUATOR |
1 |
(Pin ring) (only available in kit) |
|
12a |
472-4777
|
LIFT KIT-DECK |
2 |
(Pin ring) (only available in kit) |
|
12b |
272-7446
|
Deck linkage hardware assembly |
2 |
(Pin ring) (Cotter pin) (only available in kit) |
|
13 |
472-4763
|
HARDWARE KIT-ACTUATOR |
1 |
(Clevis pin) (only available in kit) |
|
14 |
472-4696
|
LEFT SKIRT ASSY |
1 |
|
|
15 |
472-4698
|
RT SKIRT ASSY |
1 |
|
|
16 |
472-4778
|
ROLLER MOUNT KIT-RT 28D |
1 |
(Roller bracket weldment) (only available in kit) |
|
18 |
472-4777
|
LIFT KIT-DECK |
2 |
(Bushing) (only available in kit) |
|
19a |
472-4777
|
LIFT KIT-DECK |
2 |
(Bushing) (only available in kit) |
|
19b |
272-7446
|
Deck linkage hardware assembly |
1 |
(Bushing) (only available in kit) |
|
20 |
572-9330
|
Knob |
4 |
|
|
21 |
172-9157
|
Roller wheel |
1 |
|
|
22a |
472-4777
|
LIFT KIT-DECK |
2 |
(Bearing) (only available in kit) |
|
22b |
272-7446
|
Deck linkage hardware assembly |
2 |
(Bearing) (only available in kit) |
|
23 |
472-4777
|
LIFT KIT-DECK |
1 |
(Deck weldment) (only available in kit) |
|
24 |
472-4763
|
HARDWARE KIT-ACTUATOR |
1 |
(Actuator) (only available in kit) |
|
25 |
472-4812
|
LIFT ACTUATOR ASSEMBLY |
1 |
(includes 25a-25j) |
|
25b |
999-1129
|
Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc |
4 |
|
|
25c |
472-4811
|
ACTUATOR |
1 |
|
|
25d |
272-8539
|
Spring housing guide |
1 |
|
|
25e |
172-8941
|
Compression spring |
1 |
|
|
25f |
172-8952
|
Spring housing |
1 |
|
|
25g |
172-8954
|
Nut retainer |
1 |
|
|
25h |
172-8955
|
Nut retainer |
1 |
|
|
25j |
272-3552
|
Compression spring |
1 |
|
|
26 |
172-9282
|
Knob |
4 |
|
|
27 |
272-8756
|
Pin |
1 |
|
|
28 |
472-4785
|
HOSE KIT-SOLUTION BOOST |
2 |
(Hose clamp) (only available in kit) |
|
29 |
472-4692
|
BOOST DECK ASSY |
1 |
|
|
30 |
472-4785
|
HOSE KIT-SOLUTION BOOST |
1 |
(Solution hose) (only available in kit) |
|
31 |
172-3428
|
No step decal |
2 |
|
|
32 |
170-9202
|
BOOST decal |
2 |
|
|
33 |
472-4778
|
ROLLER MOUNT KIT-RT 28D |
2 |
(Bearing) (only available in kit) |
|
N/S |
472-4763
|
HARDWARE KIT-ACTUATOR |
1 |
(includes 2,3,6,11,13,24) |
|
N/S |
472-4777
|
LIFT KIT-DECK |
1 |
(includes 1,4b,8a,12a,18,19a,22a, and 23) |
|
N/S |
472-4778
|
ROLLER MOUNT KIT-RT 28D |
1 |
(inlcudes 5,16, and 33) |
|
N/S |
472-4785
|
HOSE KIT-SOLUTION BOOST |
1 |
(includes 28 and 30) |
|
N/S |
272-7446
|
Deck linkage hardware assembly |
1 |
(inlcudes 1,4c,8b,12b,19b, and 22b) |
|
N/S |
272-6744
|
Adapter connector |
1 |
|
|
