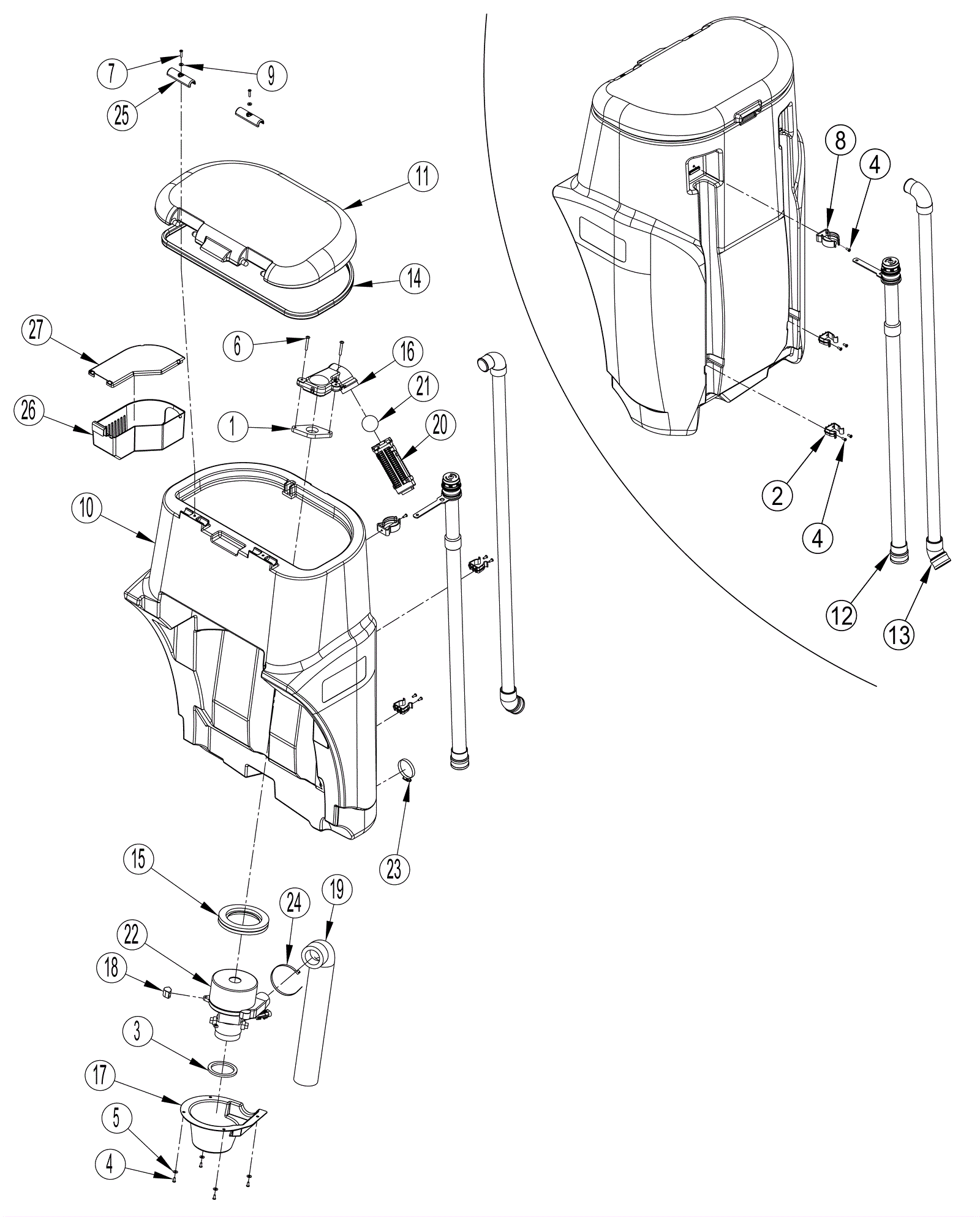

FOCUS II RIDE 28B Recovery Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 472-4792 GASKET-AIR DUCT $9.02 1 usually ships 16-41 days
2 472-4753 HOSE CLAMP KIT-DRAIN $37.61 2 (Plastic clamp) (only available in kit) usually ships 16-41 days
3 172-8889 Vacuum duct gasket $11.99 1 ships same day
4 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 9 ships same day
5 999-0998 Washer #10 flat stainless steel $0.99 4 ships same day
6 999-0599 Screw 1/4-20 x 1 3/4 pan head phillips stainless steel $1.21 2 ships same day
7 472-4800 HARDWARE KIT-RECOVERY SYSTEM $10.56 2 (Screw) (only available in kit) usually ships 16-41 days
8 472-4753 HOSE CLAMP KIT-DRAIN $37.61 1 (Hose clamp) (only available in kit) usually ships 16-41 days
9 999-1862 Washer #10 flat SAE stainless steel $0.99 2 ships same day
10 472-4666 TANK-RECOVERY $1,148.72 1 usually ships 16-41 days
11 472-4667 COVER-RECOVERY TANK $283.73 1 usually ships 16-41 days
12 472-7859 DRAIN HOSE ASSY-1.5-BLK $36.07 1 usually ships 16-41 days
13 472-4703 RECOVERY HOSE ASSY $48.32 1 usually ships 16-41 days
14 272-6343 Recovery tank gasket $22.41 1 usually ships 16-41 days
15 472-4726 SEAL ASSY-VAC FAN $34.66 1 usually ships 16-41 days
16 172-2118 Float duct $116.92 1 usually ships 16-41 days
17 272-2107 Vacuum motor shroud $22.41 1 ships same day
18 472-4752 VAC MOTOR KIT $417.98 3 (Mount) (only available in kit) usually ships 16-41 days
19 472-4752 VAC MOTOR KIT $417.98 1 (Foam tube assembly) (only available in kit) usually ships 16-41 days
20 272-9853 Float ball cage kit $73.68 2 (Float cage) (only available in kit) usually ships 16-41 days
21 272-9853 Float ball cage kit $73.68 1 (Float ball) (only available in kit) usually ships 16-41 days
22 472-4752 VAC MOTOR KIT $417.98 1 (24V vacuum motor) (only available in kit) usually ships 16-41 days
23 472-4753 HOSE CLAMP KIT-DRAIN $37.61 1 (Hose clamp) (only available in kit) usually ships 16-41 days
24 472-4752 VAC MOTOR KIT $417.98 1 (Cable tie) (only available in kit) usually ships 16-41 days
25 272-7242 Hinge clamp $11.99 2 ships same day
26 272-3582 Strainer basket $13.40 1 usually ships 16-41 days
27 272-3585 Debris cover $13.40 1 usually ships 16-41 days
N/S 272-9853 Float ball cage kit $73.68 1 (includes 20 and 21) usually ships 16-41 days
N/S 472-4752 VAC MOTOR KIT $417.98 1 (includes 3,15,18,19,22, and 24) usually ships 16-41 days
N/S 472-4753 HOSE CLAMP KIT-DRAIN $37.61 1 (includes 2,4,8, and 23) usually ships 16-41 days
N/S 472-4800 HARDWARE KIT-RECOVERY SYSTEM $10.56 1 (includes 4,6,7, and 9) usually ships 16-41 days
N/S 472-7330 CARBON-BRUSH/SET OF 2 $16.07 1 usually ships 16-41 days
