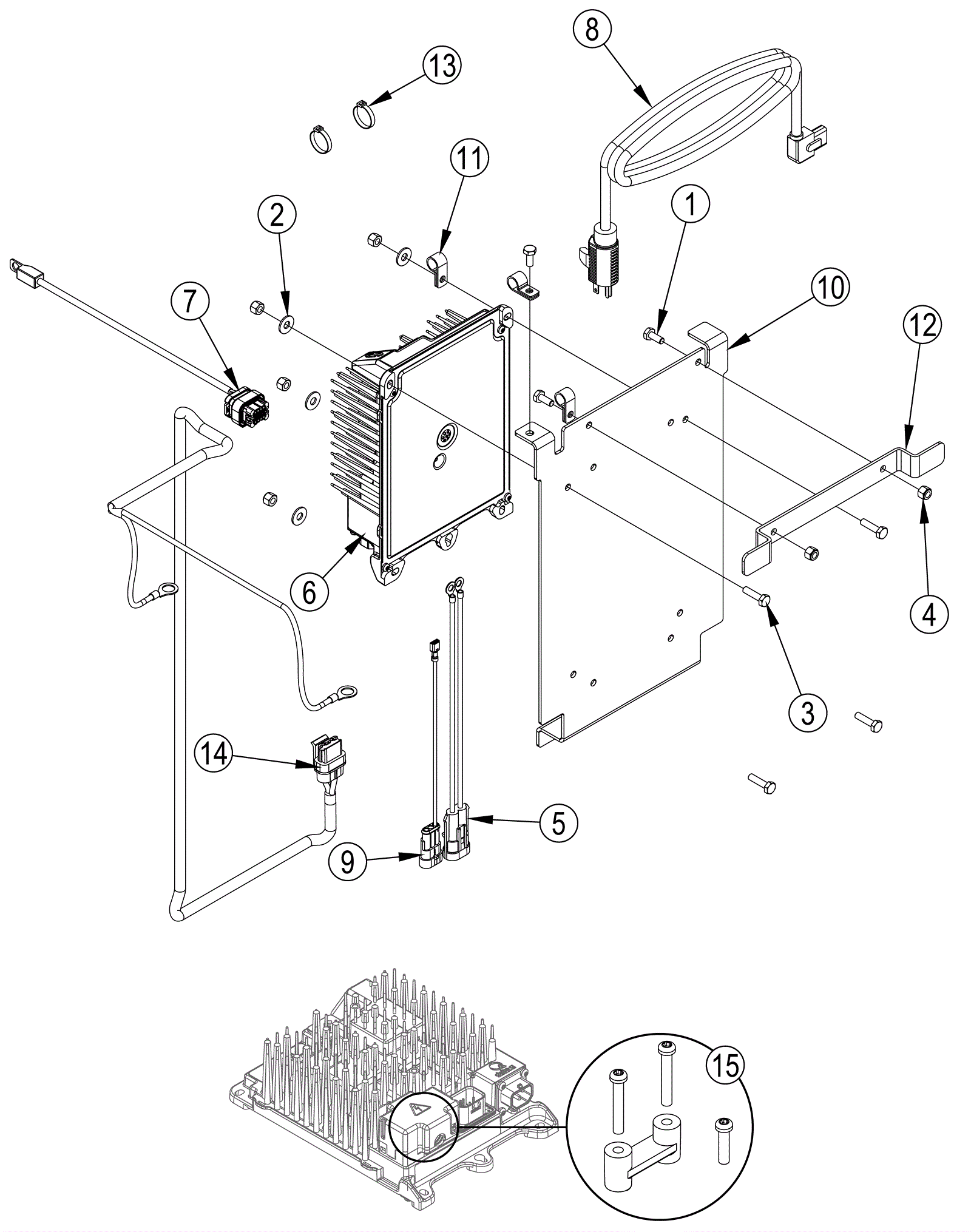

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-1032
|
Screw 1/4-20 x 5/8 hex head stainless steel |
3 |
|
|
2 |
999-0016
|
Washer 1/4 flat plain finish |
4 |
|
|
3 |
999-0830
|
Screw 1/4-20 x 1 hex head plain finish |
4 |
|
|
4 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
6 |
|
|
5 |
272-6665
|
Power charger adapter |
1 |
|
|
6 |
270-8393
|
24V onboard battery charger |
1 |
|
|
7 |
270-8394
|
Temperature sensor |
1 |
|
|
8 |
270-8395
|
AC cord |
1 |
|
|
9 |
472-7971
|
ADAPTER-INTERLOCK |
1 |
|
|
10 |
472-7975
|
BRACKET-OBC MOUNT |
1 |
|
|
11 |
172-2122
|
P clamp |
3 |
|
|
12 |
170-7386
|
Cord wrapping bracket |
1 |
|
|
13 |
170-6744
|
Wire tie |
2 |
|
|
14 |
472-4731
|
HARNESS-CHARGER |
1 |
|
|
15 |
272-6666
|
Strain relief kit |
1 |
|
|
