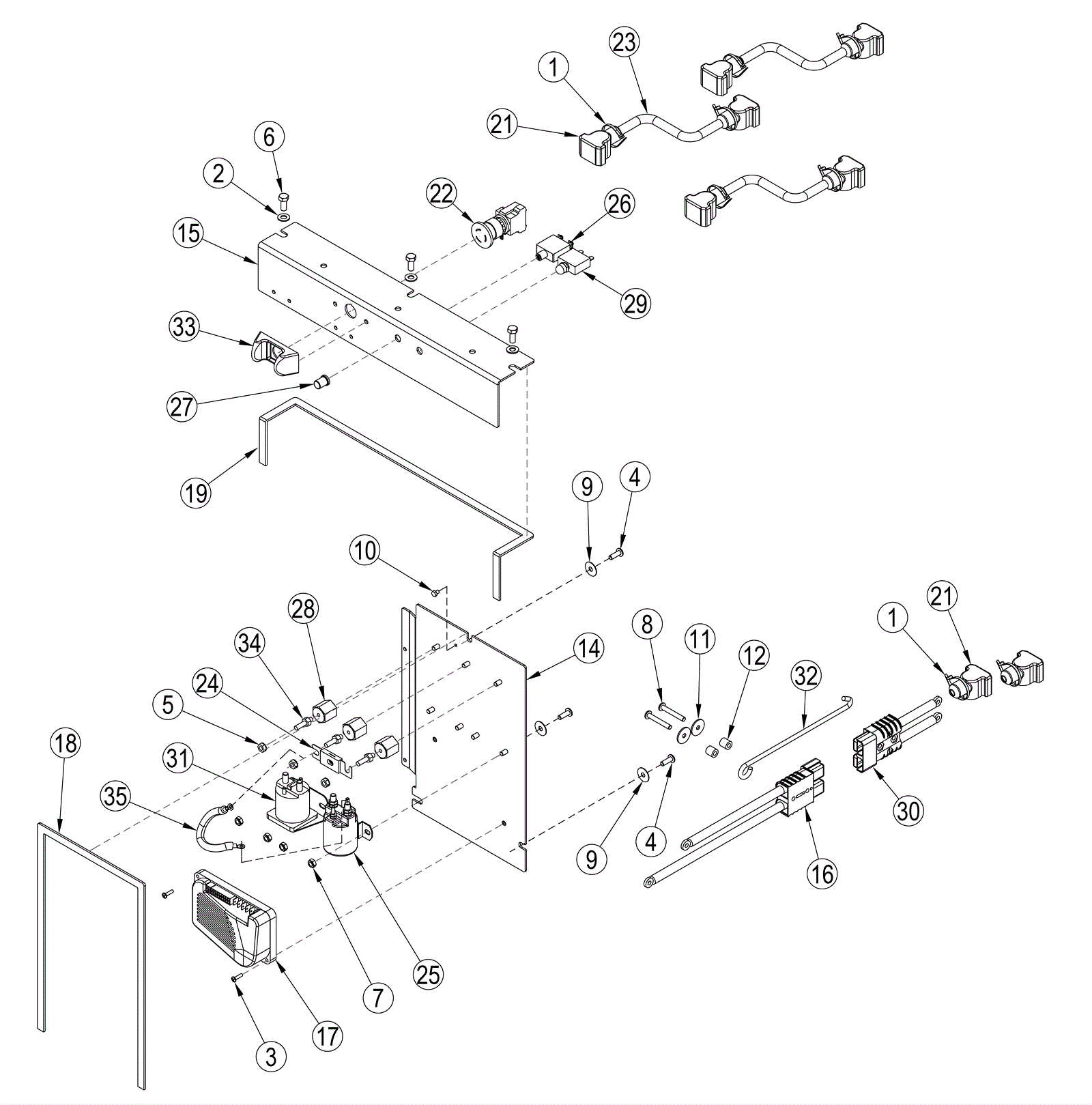

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
472-4770
|
BATTERY CABLE KIT |
8 |
(Cable tie) (only available in kit) |
|
2 |
999-1964
|
Washer 5/16 SAE flat zinc |
3 |
|
|
3 |
472-4801
|
HARDWARE KIT-ELEC SYSTEM |
2 |
(Screw) (only available in kit) |
|
4 |
999-0487
|
Screw 1/4-20 x 3/4 pan head phillips zinc plated |
3 |
|
|
5 |
472-4767
|
STANDOFF AND BREAKER KIT |
3 |
(Nut) (only available in kit) |
|
6 |
999-1232
|
Screw 5/16-18 x 3/4 hex head stainless steel |
3 |
|
|
7 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
4 |
|
|
8 |
999-0599
|
Screw 1/4-20 x 1 3/4 pan head phillips stainless steel |
2 |
|
|
9 |
472-4801
|
HARDWARE KIT-ELEC SYSTEM |
3 |
(Washer) (only available in kit) |
|
10 |
472-4801
|
HARDWARE KIT-ELEC SYSTEM |
1 |
(Screw) (only available in kit) |
|
11 |
472-4768
|
PROP ROD KIT |
2 |
(Washer) (only available in kit) |
|
12 |
472-4768
|
PROP ROD KIT |
2 |
(Spacer) (only available in kit) |
|
14 |
N/A
|
Not available |
1 |
(Electrical panel) |
|
15 |
270-8579
|
Switch panel |
1 |
|
|
16 |
472-4710
|
HARNESS-POWER |
1 |
|
|
17 |
472-4727
|
SPEED CONTROLLER |
1 |
|
|
18 |
472-4738
|
GASKET-.25 X .50 X 37.38 |
1 |
|
|
19 |
472-4739
|
GASKET-.25 X .50 X 31.50 |
1 |
|
|
21 |
472-4770
|
BATTERY CABLE KIT |
8 |
(Battery post) (only available in kit) |
|
22 |
472-4766
|
ESTOP KIT |
1 |
(Emergency disconnect) (only available in kit) |
|
23 |
472-4770
|
BATTERY CABLE KIT |
3 |
(Battery cable) (only available in kit) |
|
24 |
472-4767
|
STANDOFF AND BREAKER KIT |
1 |
(Fuse) (only available in kit) |
|
25 |
172-2163
|
24V solenoid 4 post (2 large 2 small) |
1 |
|
|
27 |
472-4769
|
CIRCUIT BREAKER KIT |
1 |
(Reset button boot) (only available in kit) |
|
28 |
472-4767
|
STANDOFF AND BREAKER KIT |
3 |
(Electrical mount) (only available in kit) |
|
29 |
272-9374
|
10amp circuit breaker |
1 |
|
|
30 |
272-8792
|
Connector assembly |
1 |
|
|
31 |
272-8794
|
24V contactor |
1 |
|
|
32 |
472-4768
|
PROP ROD KIT |
1 |
(Seat prop rod) (only available in kit) |
|
33 |
472-4766
|
ESTOP KIT |
1 |
(Emergency button guard) (only available in kit) |
|
34 |
472-4767
|
STANDOFF AND BREAKER KIT |
3 |
(Stud) (only available in kit) |
|
35 |
272-8798
|
Cable assembly |
1 |
|
|
N/S |
472-4766
|
ESTOP KIT |
1 |
(includes 22 and 33) |
|
N/S |
472-4767
|
STANDOFF AND BREAKER KIT |
1 |
(includes 5,24,28 and 34) |
|
N/S |
472-4768
|
PROP ROD KIT |
1 |
(includes 8,11,12, and 32) |
|
N/S |
472-4769
|
CIRCUIT BREAKER KIT |
1 |
(includes 26,27, and 29) |
|
N/S |
472-4770
|
BATTERY CABLE KIT |
1 |
(includes 1,21, and 23) |
|
N/S |
472-4801
|
HARDWARE KIT-ELEC SYSTEM |
1 |
(includes 2-4,6,7,9, and 10) |
|
N/S |
472-4840
|
HARNESS-MAIN |
1 |
|
|
N/S |
272-6625
|
Traction harness |
1 |
|
|
N/S |
172-0236
|
Diode rectifier assembly |
2 |
|
|
