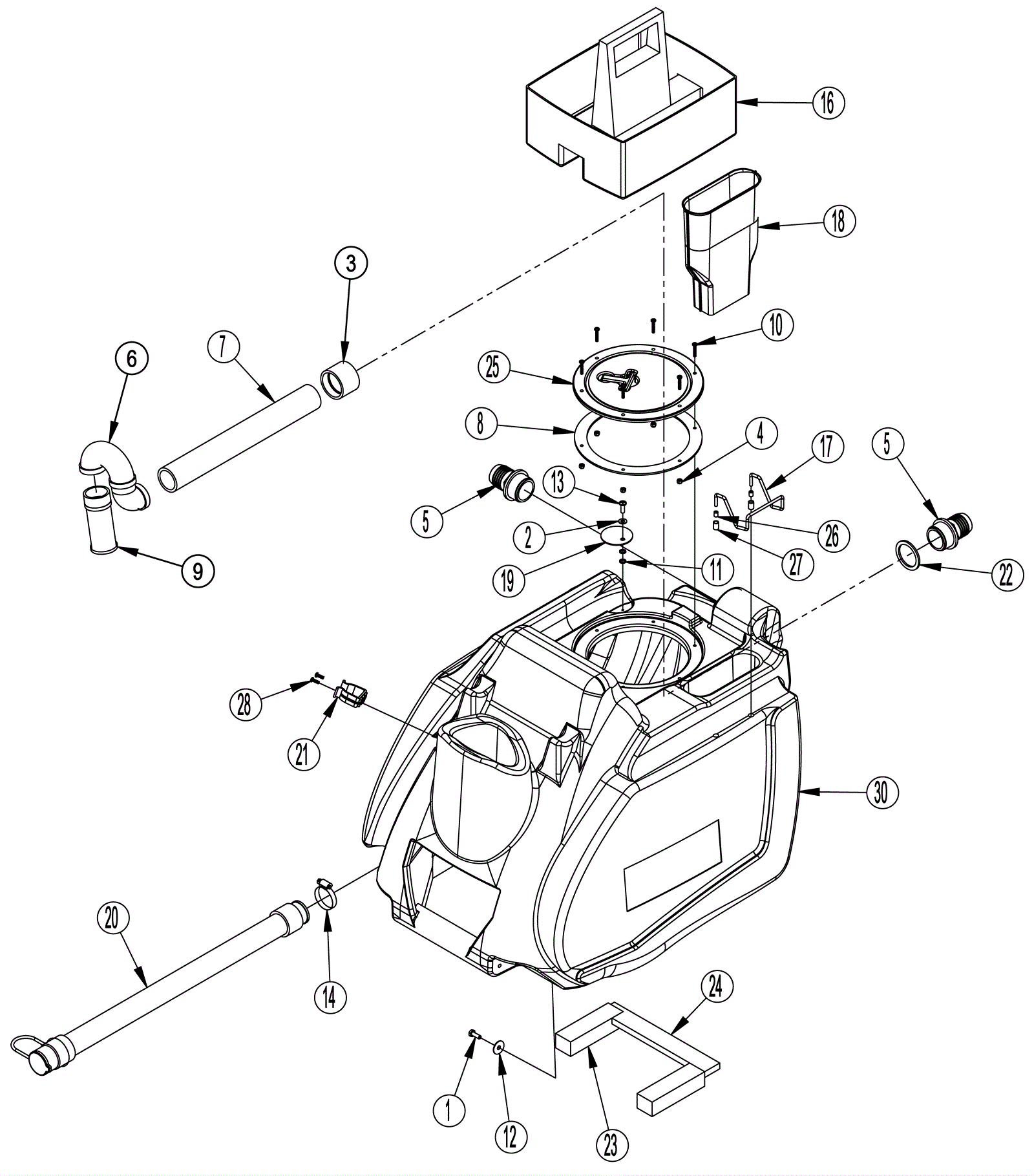

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
209-0148
|
Bolt 1/4 inch x 3/4 inch |
1 |
|
|
2 |
999-0016
|
Washer 1/4 flat plain finish |
1 |
|
|
4 |
999-0357
|
Nut 8-32 nylon insert lock stainless steel |
6 |
|
|
5 |
172-2481
|
Hose barb |
2 |
|
|
6 |
209-0342
|
ABS trap adapter |
1 |
|
|
7 |
209-0668
|
PVC pipe |
15 |
|
|
8 |
272-6026
|
Gasket |
1 |
|
|
9 |
209-0329
|
Ball float |
1 |
|
|
10 |
999-1574
|
Screw 8-32 x 1 pan head phillips stainless steel |
6 |
|
|
11 |
209-6109
|
Washer 5/16 flat nylon |
2 |
|
|
12 |
170-1395
|
Fender washer |
1 |
|
|
13 |
999-0456
|
Screw 1/4-20 x 3/4 pan head phillips stainless steel |
1 |
|
|
14 |
270-8636
|
Hose clamp 3/4 x 1 3/4 SS |
1 |
|
|
16 |
272-6027
|
Basket (blue) |
1 |
|
|
17 |
172-9599
|
Hanger |
1 |
|
|
18 |
272-6028
|
Sleeve |
1 |
|
|
19 |
272-6029
|
Hose keeper |
1 |
|
|
20 |
209-0092
|
Dump hose |
1 |
|
|
21 |
272-1159
|
Plastic clamp |
1 |
|
|
22 |
209-0341
|
Rubber washer |
1 |
|
|
23 |
209-2085
|
GASKET 1.5 X 1.25 X 5.25 A |
2 |
|
|
24 |
272-6030
|
Gasket |
1 |
|
|
25 |
272-6031
|
Lid with mounting ring |
1 |
|
|
26 |
209-0033
|
Cap (black) |
2 |
|
|
27 |
272-2545
|
Sleeve |
2 |
|
|
28 |
999-0916
|
Screw 8-32 x 1/2 pan head phillips stainless steel |
2 |
|
|
30 |
272-6032
|
Vacuum tank |
1 |
|
|
N/S |
270-8149
|
Vacuum inlet kit |
1 |
|
|
