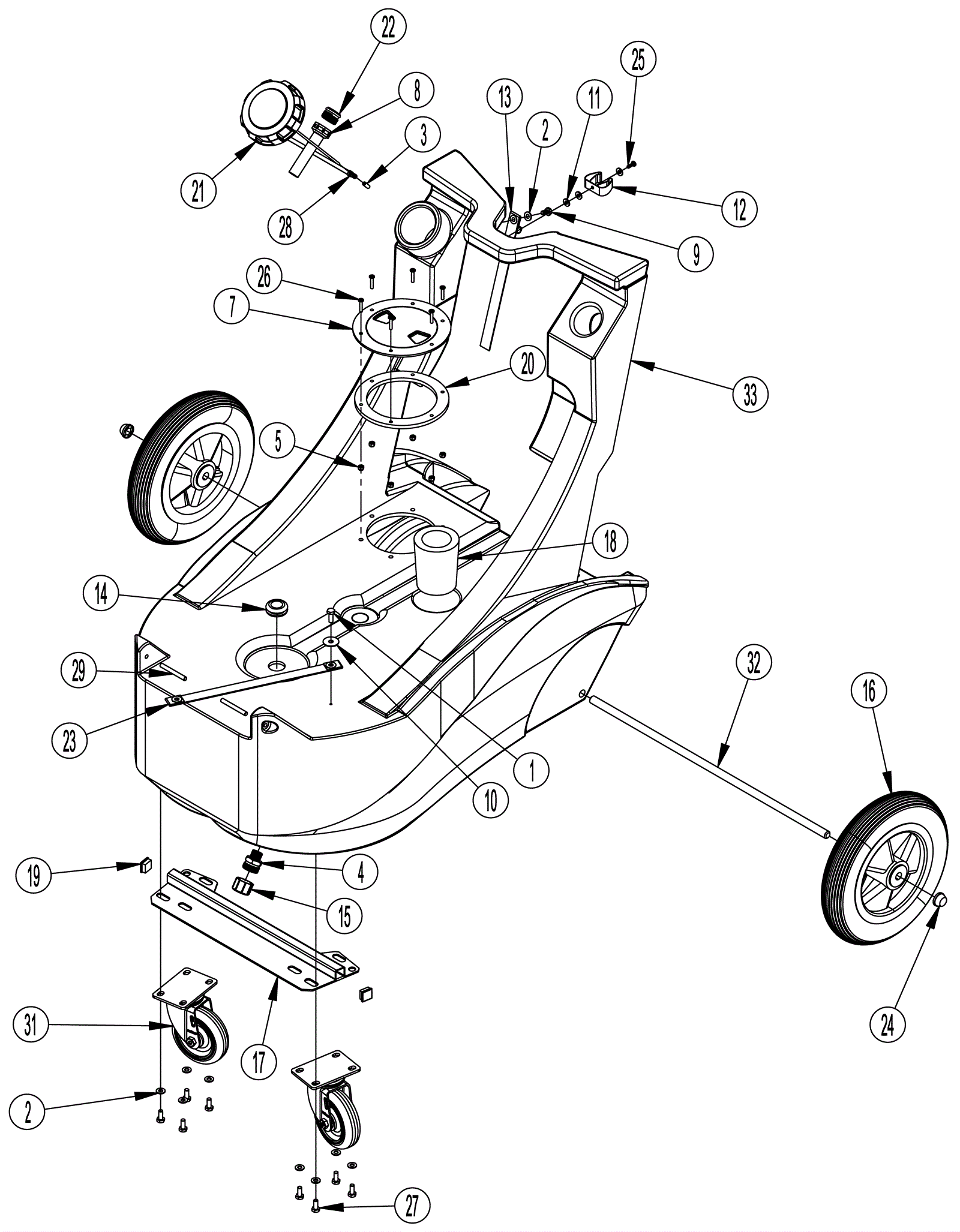

TFC 400 Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 209-0148 Bolt 1/4 inch x 3/4 inch $10.90 1 usually ships 1-5 days
2 999-0006 Washer 3/16 flat zinc plated $0.99 9 ships same day
3 272-2528 Button connection $8.20 1 usually ships 1-5 days
4 209-0451 Adapter $21.77 1 usually ships 16-41 days
5 999-0357 Nut 8-32 nylon insert lock stainless steel $0.99 6 ships same day
8 272-2529 5 inch fill hose $30.04 1 usually ships 1-5 days
9 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel $0.99 1 ships same day
10 170-1395 Fender washer $10.90 1 ships same day
11 999-0053 Washer #10 split lock plain finish $0.99 3 ships same day
12 272-2531 Handle clip $8.20 1 usually ships 1-5 days
13 209-0363 Cord strap $9.60 1 usually ships 16-41 days
14 172-9425 Grommet $10.24 1 usually ships 16-41 days
15 172-9426 Hose cap $9.60 1 usually ships 16-41 days
16 209-0106 10 inch wheel $244.24 2 usually ships 1-5 days
17 272-2532 Caster wheel plate $87.35 1 usually ships 16-41 days
18 272-2533 Reticulated foam $8.20 1 usually ships 1-5 days
19 272-2534 Square plug $8.20 2 usually ships 1-5 days
20 272-2535 Lid gasket $10.90 1 usually ships 1-5 days
21 272-9352 Raw cap with tether $55.83 1 usually ships 16-41 days
22 209-0673 Faucet adapter $10.90 1 usually ships 1-5 days
23 172-9427 Strap $7.19 1 usually ships 16-41 days
24 170-5410 Axle cap (OBSOLETE) $9.60 2 usually ships 16-41 days
25 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel $0.99 1 ships same day
26 999-1356 Screw 8-32 x 7/8 pan head phillips stainlesss steel $0.99 6 usually ships 1-5 days
27 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 8 ships same day
28 209-0674 Wire tie $8.20 1 usually ships 16-41 days
29 172-9429 Hinge pin $8.20 2 usually ships 1-5 days
31 209-0480 Caster wheel (gray) $24.71 2 usually ships 16-41 days
32 272-2536 Axle rod $15.00 1 usually ships 16-41 days
33 272-5595 Tank $1,694.77 1 usually ships 1-5 days
NS 272-5596 TFC400 decal kit $114.24 1 usually ships 1-5 days
