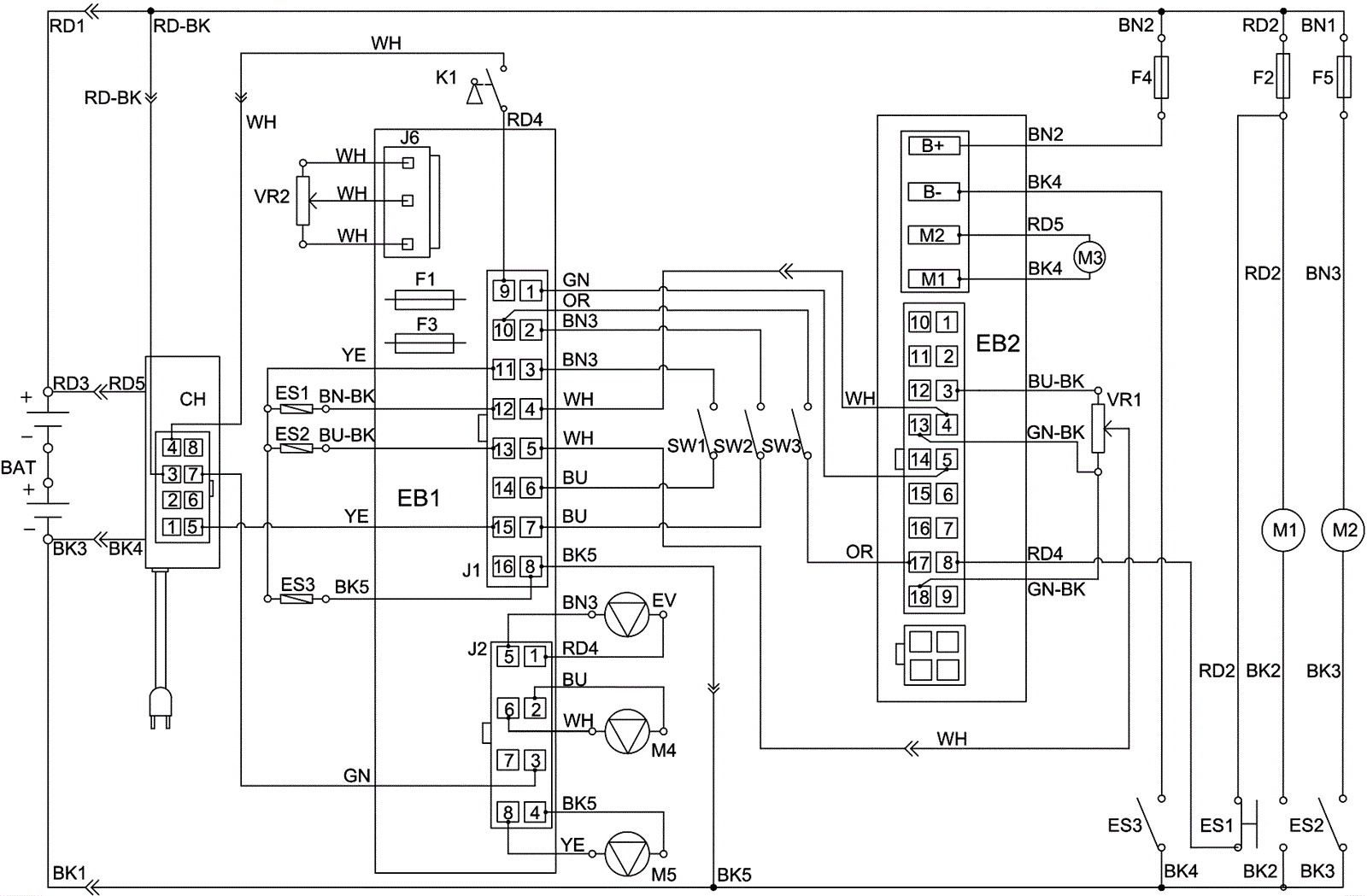

CA60 20B Wiring Diagram (Only for Orbital Machine)

#PartDescriptionPriceReqNotesAvailability
BAT N/A Not available Call for price (24V batteries) usually ships 3-26 days
CH 270-8587 24V 13Ah onboard battery charger $593.95 ships same day
EB1 270-5036 Control panel board orbital $270.07 usually ships 13-18 days
EB2 270-5041 Electronic board traction system orbital $391.18 ships same day
ES1 272-7142 Electromagnetic switch $281.00 usually ships 13-18 days
ES2 240-6336 RELAY 24V $14.95 usually ships 13-18 days
ES3 240-6336 RELAY 24V $14.95 usually ships 13-18 days
F1 240-6379 LOW POWER CIRCUIT FUSE $7.56 usually ships 13-18 days
F2 240-0882 30amp circuit breaker $24.67 ships same day
F3 240-6379 LOW POWER CIRCUIT FUSE $7.56 usually ships 13-18 days
F4 240-0115 Circuit breaker $17.48 ships same day
F5 240-0882 30amp circuit breaker $24.67 ships same day
K1 572-3666 SWITCH KEY WITH CAP PKD $88.46 ships same day
M1 240-1267 750W orbital motor $911.11 usually ships 13-18 days
M2 240-6199 VACUUM MOTOR $217.78 usually ships 13-18 days
M3 240-1264 250W traction motor $1,209.09 usually ships 13-18 days
EV 240-6132 Solution solenoid valve kit $29.72 ships same day
M4 N/A Not available Call for price (detergent pump) (for machines with Chemical Mixing Assembly (optional)) usually ships 3-26 days
M5 240-1287 Actuator $316.35 usually ships 13-18 days
SW1 240-6337 SWITCH $20.50 ships same day
SW2 240-6337 SWITCH $20.50 ships same day
SW3 240-6337 SWITCH $20.50 ships same day
