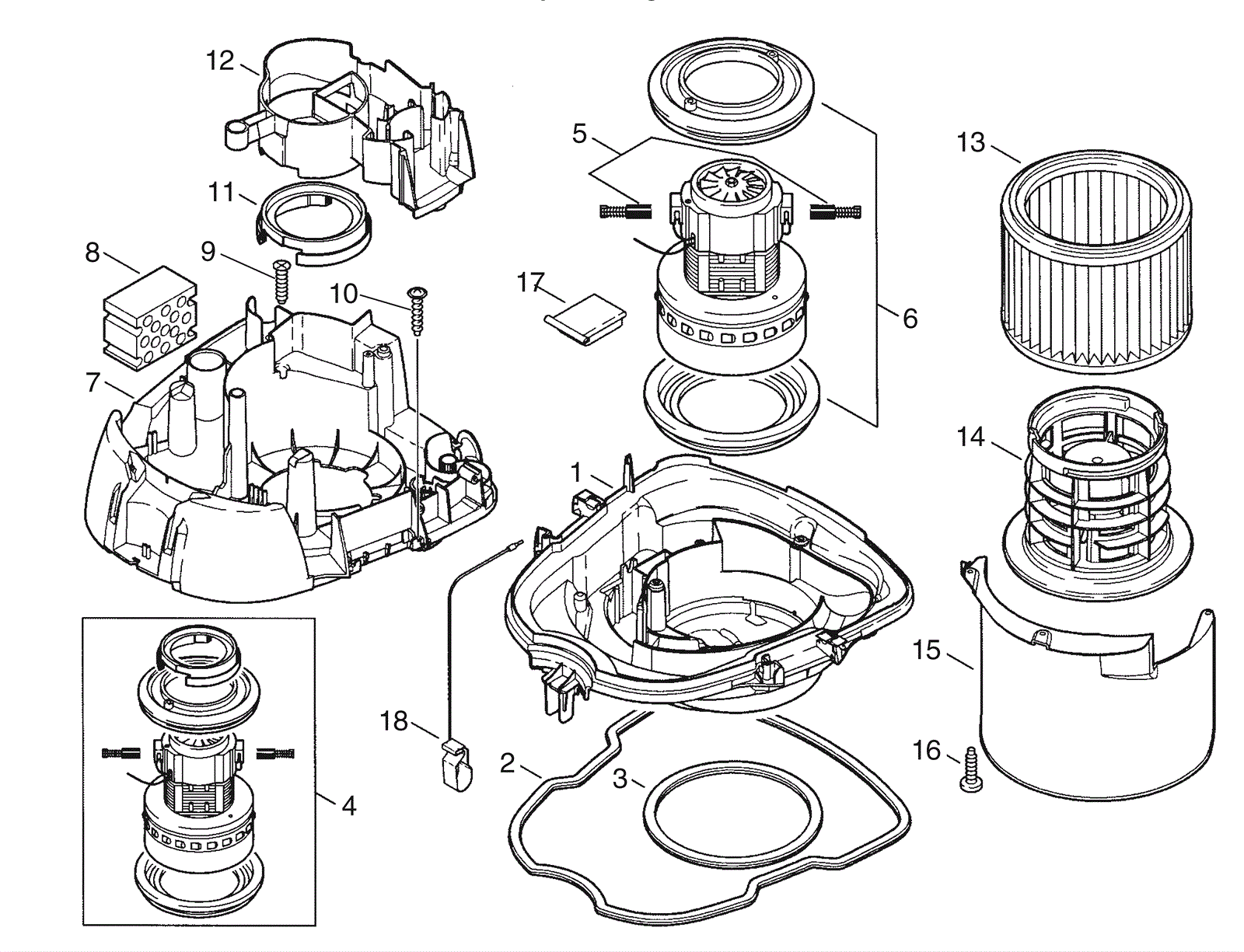

CAV-8 Internal Assembly

#PartDescriptionPriceReqNotesAvailability
1 372-1581 Base $102.96 1 usually ships 17-28 days
2 372-1582 Gasket $16.35 1 usually ships 17-28 days
3 270-1323 Gasket $10.46 1 usually ships 17-28 days
4 170-6234 120V vacuum motor two stage $605.06 1 usually ships 17-28 days
5 170-3349 Carbon brush (set of 2) $51.21 1 usually ships 17-28 days
6 372-1584 Motor seal $72.63 1 usually ships 17-28 days
7 472-0264 CLAMPING PLATE - KIT $53.52 1 usually ships 17-28 days
8 372-1585 Diffuser $7.88 1 usually ships 17-28 days
9 170-3692 Screw 50mm x 20mm $5.87 3 usually ships 1-5 days
10 170-3694 Screw 35mm x18mm $13.17 4 usually ships 1-5 days
11 472-0241 COLLAR $8.25 1 usually ships 17-28 days
12 472-0263 AIR DUCT - KIT $11.75 1 usually ships 17-28 days
13 170-2053 Permanent filter $221.69 1 usually ships 12-17 days
14 270-1325 Filter support cage $35.63 1 usually ships 17-28 days
15 N/A Not available Call for price 1 (Deflector) usually ships 3-26 days
16 170-3698 Screw 50 x 18 $5.87 3 usually ships 1-5 days
17 N/A Not available Call for price 1 (Cover) usually ships 3-26 days
18 372-1586 Earthing cable $19.72 1 usually ships 17-28 days
