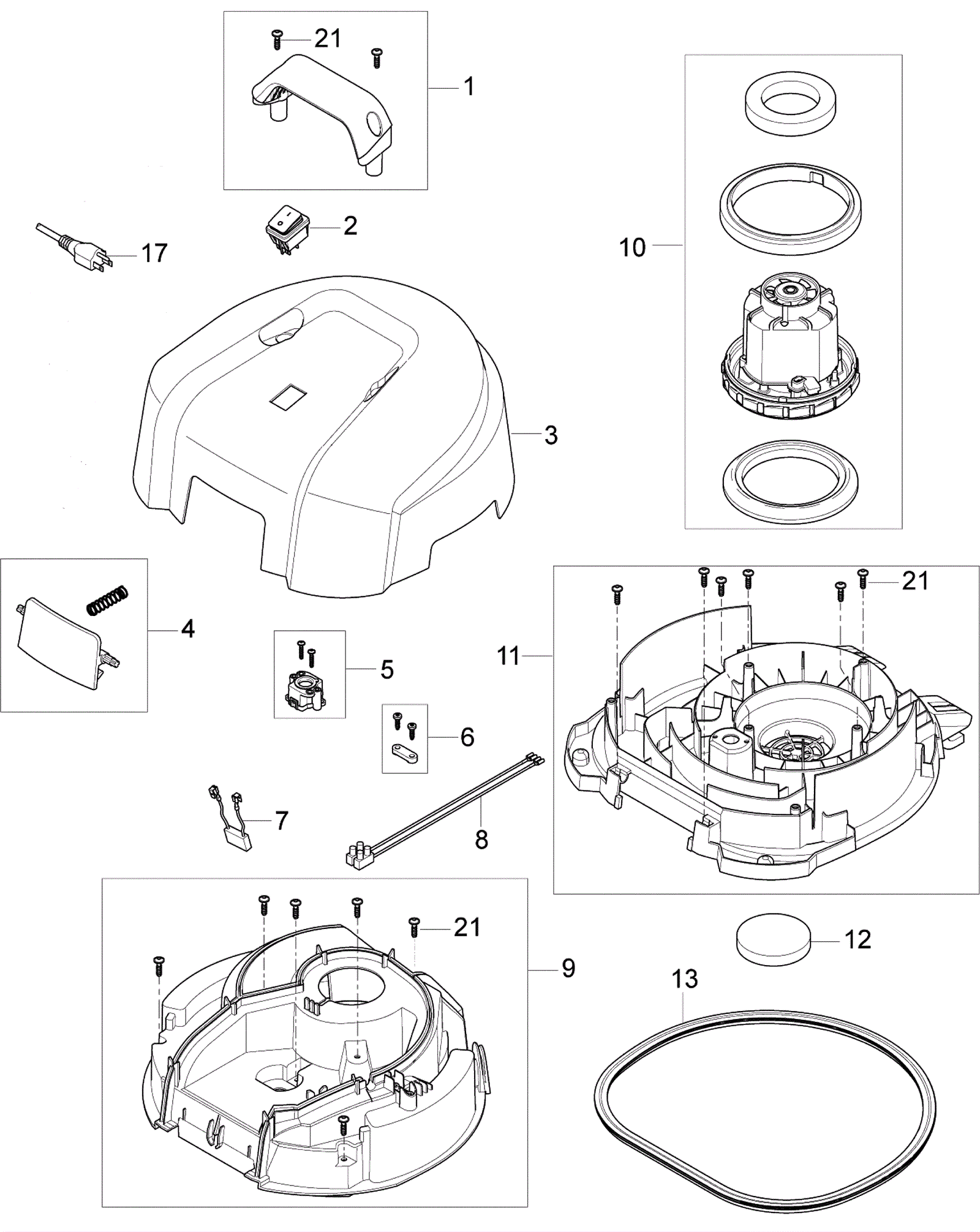

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
472-0194
|
HANDLE 35L MAXXI |
1 |
|
|
2 |
272-0638
|
Rocker switch |
1 |
|
|
3 |
472-0228
|
HOOD 35L MAXXI |
1 |
|
|
4 |
270-0939
|
Clamp |
1 |
|
|
5 |
270-0940
|
Vacuum valve |
1 |
|
|
6 |
272-0115
|
Anti strain clip |
1 |
|
|
7 |
170-5845
|
Capacitor |
1 |
|
|
8 |
270-4972
|
Internal wire (OBSOLETE) |
1 |
(Internal wire - OBSOLETE) |
|
9 |
472-0196
|
CLAMPING PLATE |
1 |
|
|
10 |
272-7394
|
Motor kit |
1 |
|
|
12 |
272-0903
|
Motor filter |
1 |
|
|
13 |
472-0199
|
GASKET BASEPLATE 35L |
1 |
|
|
17 |
272-0113
|
16/3 power cord 50 foot |
1 |
|
|
21 |
270-0938
|
Screw |
8 |
|
|
