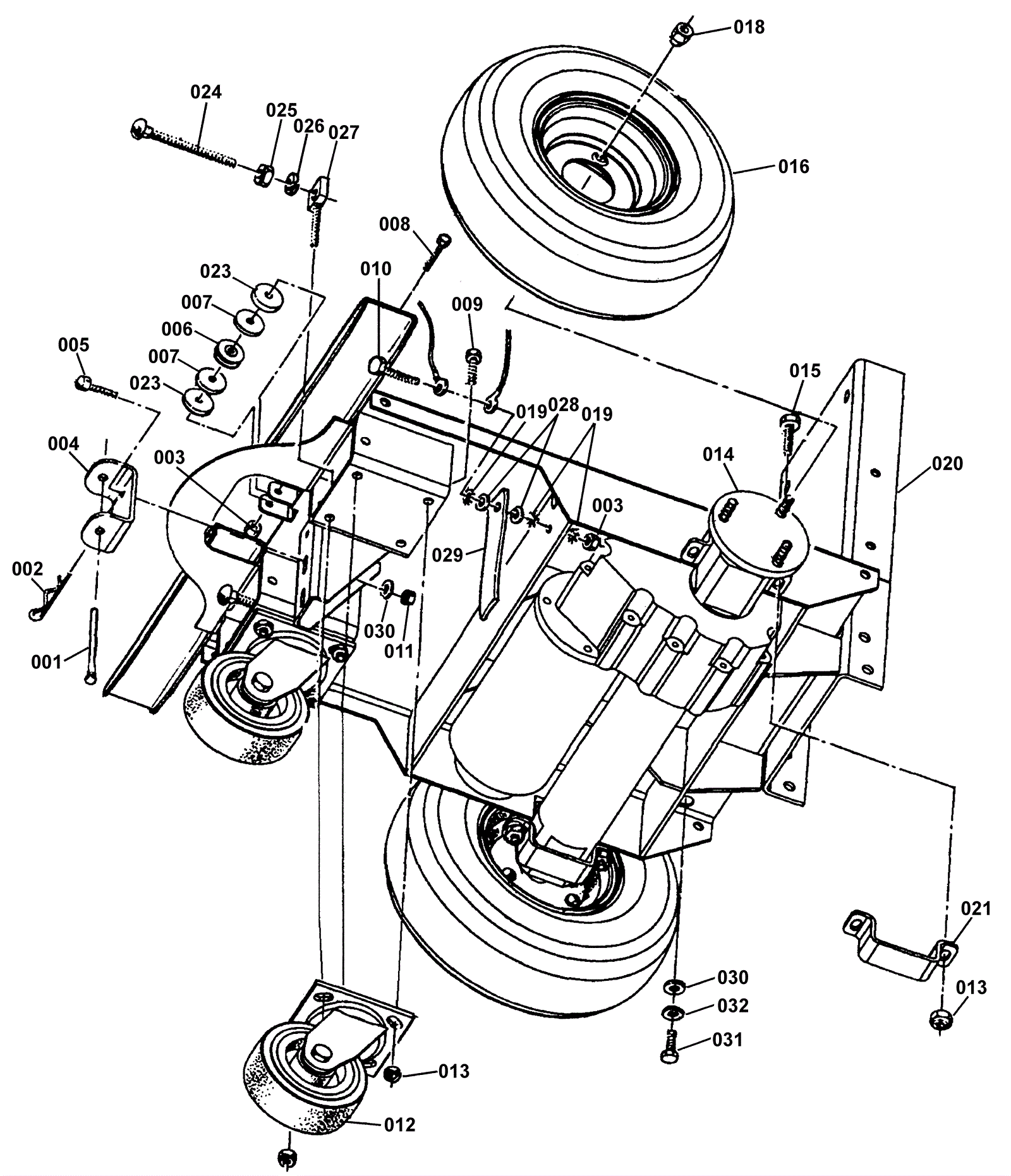

ENCORE2 D33 Traverse System Assembly

#PartDescriptionPriceReqNotesAvailability
001 170-0145 Clevis pin $11.99 1 usually ships 16-41 days
002 170-0135 Cotter pin (OBSOLETE) $11.99 1 usually ships 16-41 days
003 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
004 170-7137 Swing bracket (OBSOLETE) $86.87 1 usually ships 16-41 days
005 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 2 ships same day
006 372-2615 Squeegee pulley cable $73.68 1 usually ships 16-41 days
007 170-7109 Washer 1 1/4 nylon $10.78 2 usually ships 16-41 days
008 999-0506 Bolt 1/4-20 x 1 1/2 hex head stainless steel $1.28 1 ships same day
009 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 6 ships same day
010 999-0197 Screw 1/4-20 x 1 socket head alloy plain finish $0.99 1 ships same day
011 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
012 991-2011 Caster wheel assembly $103.56 2 ships same day
013 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 12 ships same day
014 170-7138 Transaxle and motor assembly $3,727.63 1 usually ships 16-41 days
015 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel $7.56 4 ships same day
016a 170-7139 Wheel assembly with wheel and inner tube $335.71 2 usually ships 16-41 days
016b 170-7140 Foam filled wheel $447.72 2 usually ships 1-5 days
018 170-7142 Nut 1/2-20 lug (OBSOLETE) $10.56 6 usually ships 16-41 days
019 999-0017 Washer 1/4 external star lock $0.99 3 ships same day
020 170-7424 Main frame $1,210.00 1 usually ships 1-5 days
021 170-1657 Transaxle mount $18.41 2 usually ships 1-5 days
023 170-7132 Washer 1 1/4 $6.28 2 usually ships 4-15 days
024 999-0887 Bolt 3/8-16 x 3 hex head hot dipped galvanized $2.82 2 ships same day
025 999-0635 Nut 3/8-16 hex stainless steel $0.99 2 ships same day
026 999-0659 Washer 3/8 medium split lock stainless steel $0.39 2 ships same day
027 170-7145 Stud 3/8 male x 3/8 female $18.62 2 usually ships 1-5 days
028 999-0160 Washer 1/4 x 1 1/4 fender zinc plated $0.99 2 ships same day
029 170-7146 Static strap $13.40 1 usually ships 16-41 days
030 999-0032 Washer 3/8 USS flat plain finish $2.42 6 ships same day
031 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated $1.01 4 ships same day
032 999-0659 Washer 3/8 medium split lock stainless steel $0.39 4 ships same day
