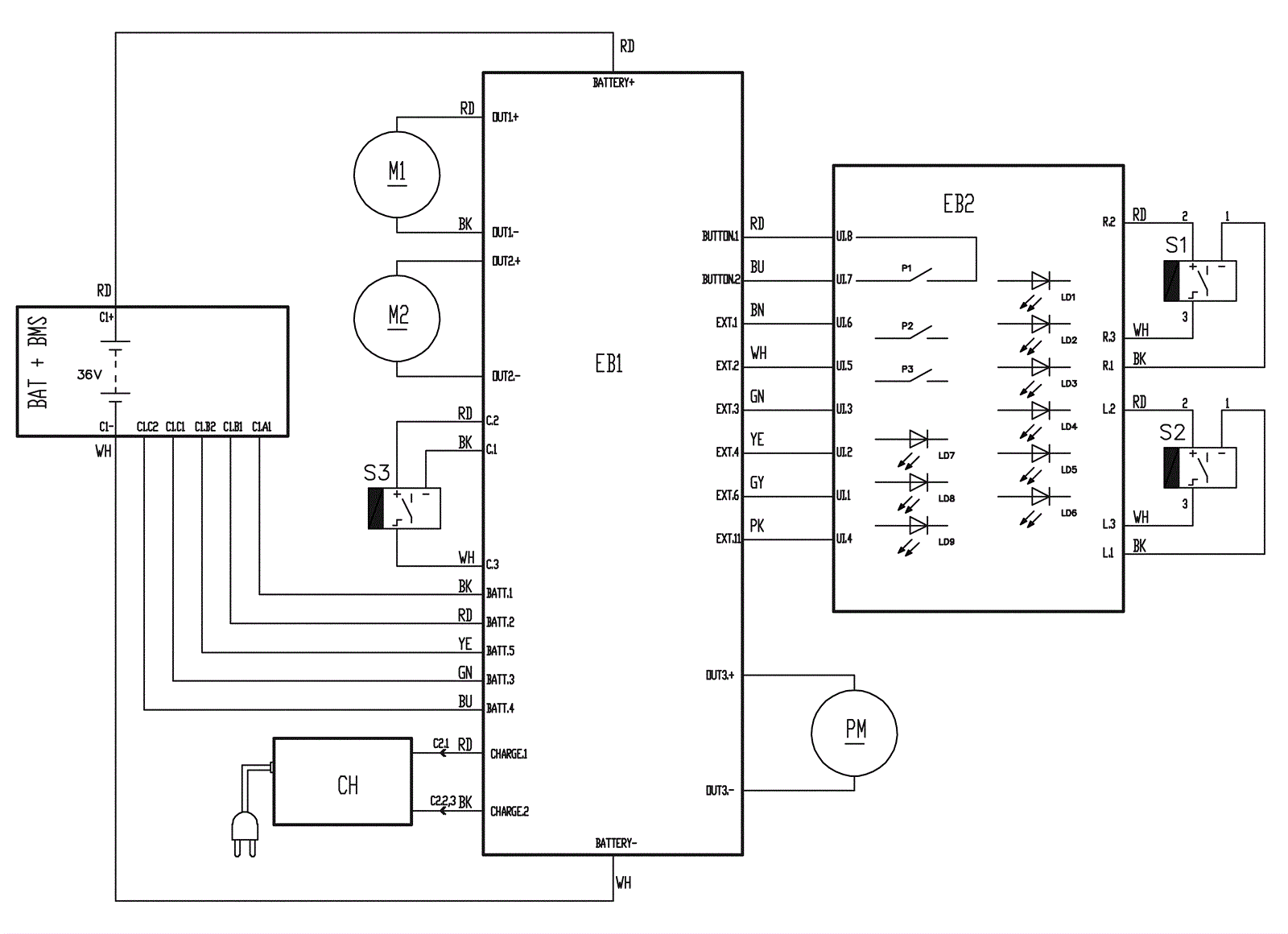

MA30 13B Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
BAT 572-3823 BATTERY LI 36V 10S4P $1,416.53 1 ships same day
BMS 572-3823 BATTERY LI 36V 10S4P $1,416.53 1 ships same day
C1 572-3803 HARNESS BATTERY KIT $96.09 1 usually ships 16-41 days
CH 572-3816 CHARGER BATTERY LI 100-240V 1. $164.67 1 usually ships 16-41 days
EB1 572-3729 CONTROLLER MAIN PROGR.PKD $313.32 1 usually ships 16-41 days
EB2 572-3754 CONTROLLER USER INTERF PKD $122.72 1 usually ships 16-41 days
M1 572-3735 MOTOR BRUSH 180W 36V PKD $342.90 1 usually ships 16-41 days
M2 572-3756 MOTOR VACUUM 36V 200W PKD $194.27 1 usually ships 16-41 days
PM 572-3750 PUMP WATER 24V 18W PKD $328.53 1 usually ships 16-41 days
S1 572-3783 SENSOR CAPACITIVE PKD $30.28 1 usually ships 16-41 days
S2 572-3783 SENSOR CAPACITIVE PKD $30.28 1 usually ships 16-41 days
S3 572-3814 SENSOR CAPAC WATER FLOW KIT $37.61 1 usually ships 16-41 days
