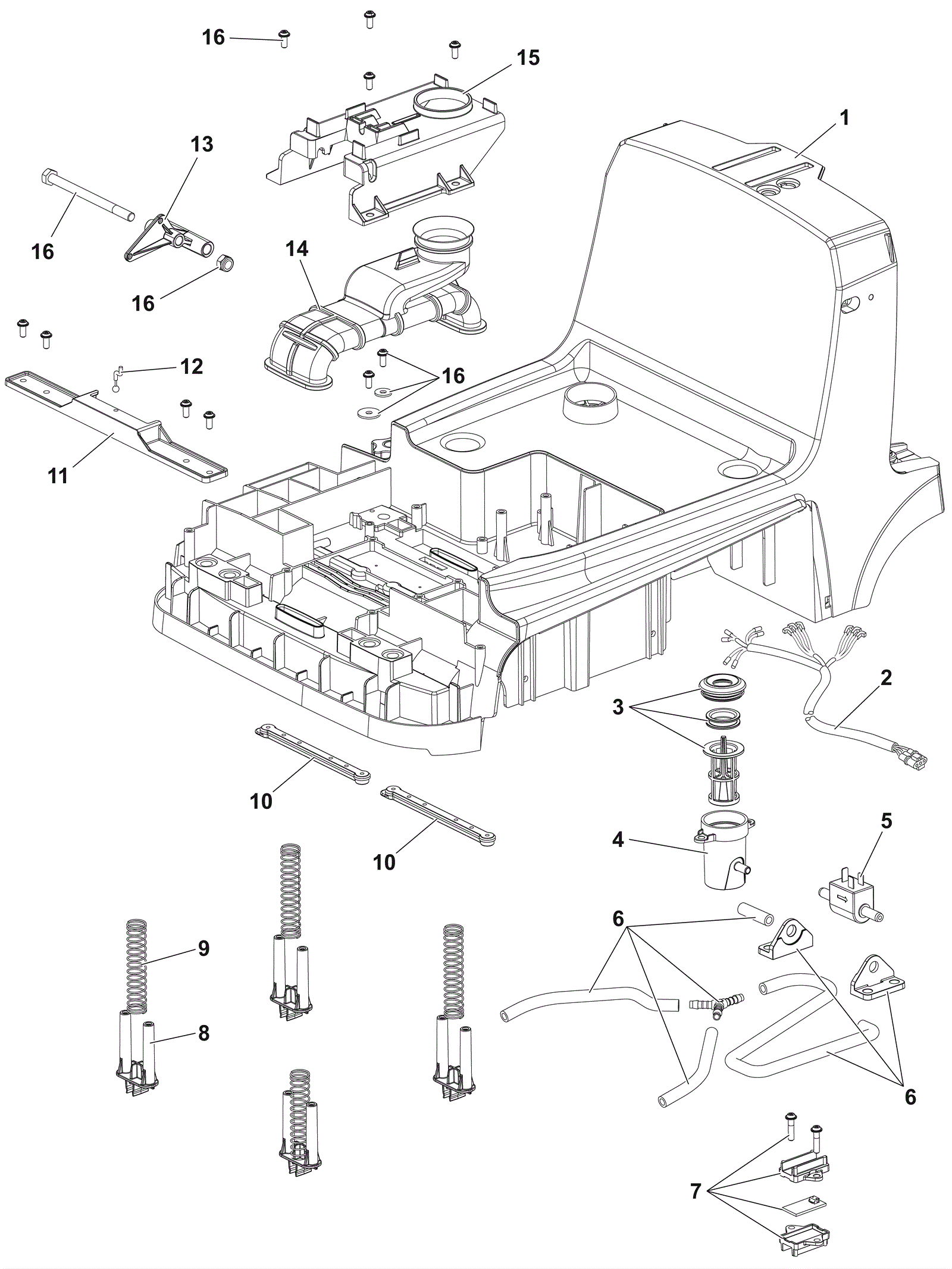

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
572-3776
|
CHASSIS PLAST. BLACK PKD |
1 |
|
|
2 |
572-3764
|
HARNESS WATER PUMP PKD |
1 |
|
|
3 |
572-3812
|
FILTER WATER PUMP KIT |
1 |
|
|
4 |
572-3766
|
SUPPORT PLAST WATER FILTER PKD |
1 |
|
|
5 |
572-3750
|
PUMP WATER 24V 18W PKD |
1 |
|
|
6 |
572-3813
|
HOSES KIT |
1 |
|
|
7 |
572-3814
|
SENSOR CAPAC WATER FLOW KIT |
1 |
|
|
8 |
572-3746
|
HOLDER SQUEEGEE PKD |
4 |
|
|
9 |
572-3753
|
SPRING COMPRESS WIRE D.1.2 PKD |
4 |
|
|
10 |
572-3744
|
DISPENSER WATER SPRAY PKD |
2 |
|
|
11 |
572-3747
|
PLATE SQUEEGEE LIFTER PKD |
1 |
|
|
12 |
572-3749
|
HOOK FRONT SQUEEGEE LIFT PKD |
1 |
|
|
13 |
572-3748
|
ROD LIFTING SQUEEGEE PKD |
1 |
|
|
14 |
572-3743
|
CHAMBER VAC RUBBER PKD |
1 |
|
|
15 |
572-3745
|
SUPPORT VAC. CHAMBER PKD |
1 |
|
|
16 |
572-3809
|
HARDWARE SOL VAC CHAMBER KIT |
1 |
|
|
