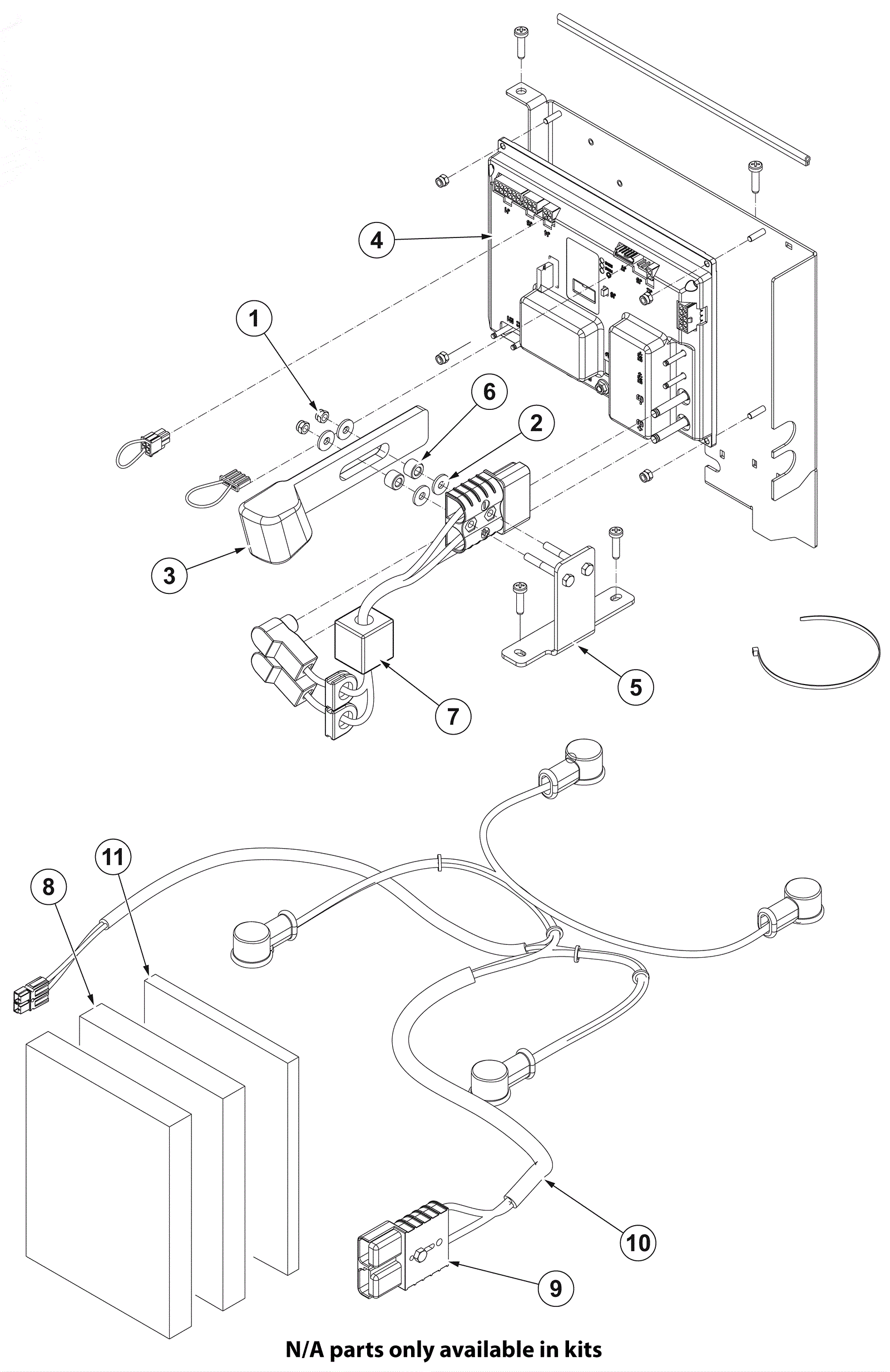

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
2 |
(nut m5) (only available with KIT2) |
|
2 |
N/A
|
Not available |
4 |
(washer 5 x 15 x 1.5) (only available with KIT2) |
|
3 |
N/A
|
Not available |
1 |
(battery connector lever) (only available with KIT2) |
|
4a |
572-3583
|
CONTROLLER MAIN MACHINE PKD |
1 |
(before SN 3510173701706) |
|
4b |
372-3078
|
Main machine controller (OBSOLETE) |
1 |
(after SN 3510173701705) |
|
5 |
N/A
|
Not available |
1 |
(battery connector support) (only available with KIT2) |
|
6 |
N/A
|
Not available |
2 |
(spacer 6 x 12 x 8.5) (only available with KIT2) |
|
7 |
572-3601
|
HARNESS ELECT COMPONENTS BOX |
1 |
|
|
8 |
N/A
|
Not available |
2 |
(insulating panel) (only available with KIT1) |
|
9 |
272-8374
|
120amp connector (red) |
1 |
|
|
10 |
572-3542
|
HARNESS BATTERY US PKD |
1 |
|
|
11 |
N/A
|
Not available |
1 |
(isolant panel) (only available with KIT1) |
|
KIT1 |
572-3633
|
PANELS INSULATING KIT |
1 |
(includes 8 and 11) |
|
KIT2 |
572-3634
|
LEVER EMERGENCY KIT |
1 |
(includes 1-3, and 5-6) |
|
