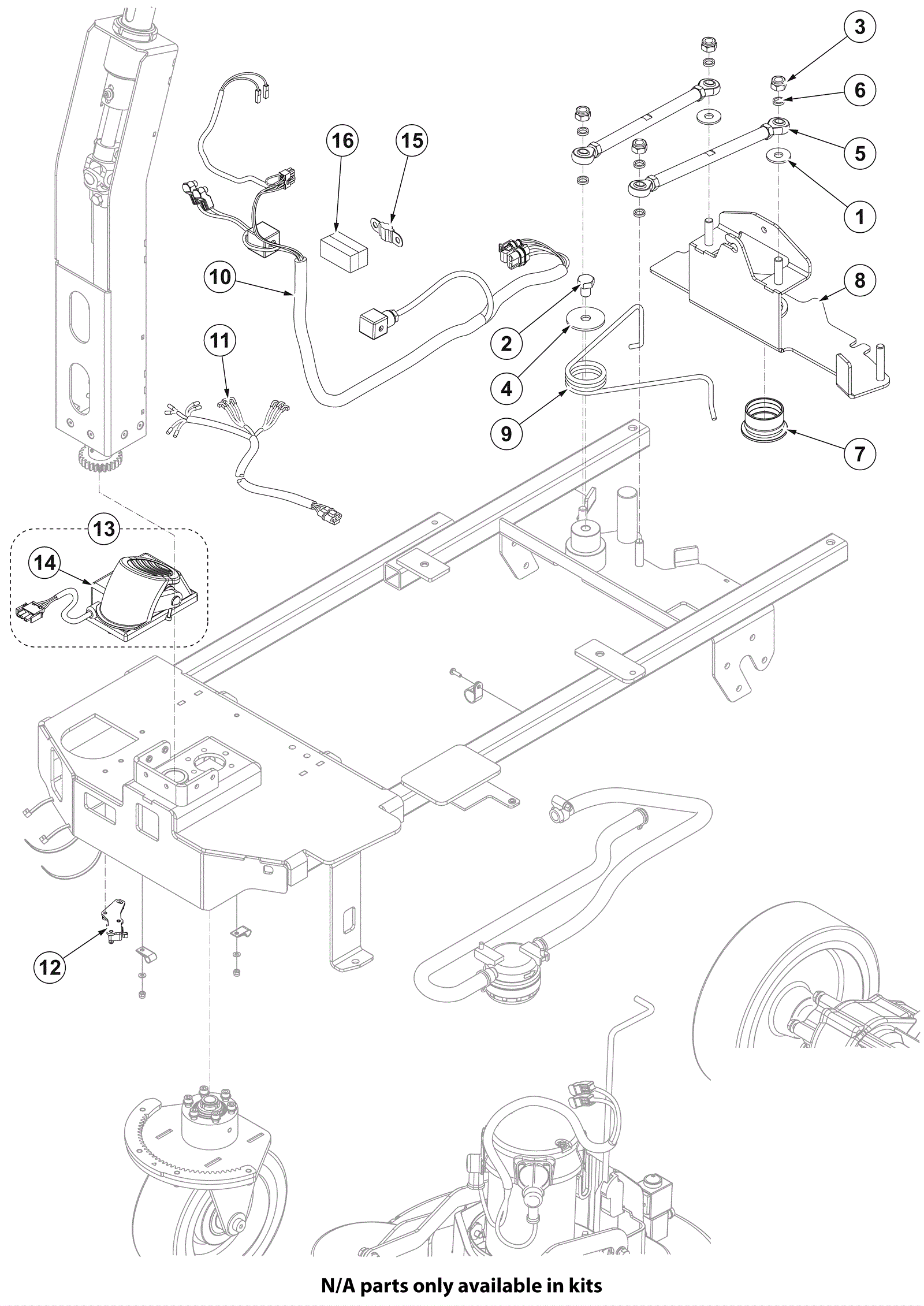

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
999-6713
|
Washer M10 x 30mm flat stainless steel |
$0.99
|
2 |
(included in KIT1) |
ships same day |
2 |
N/A
|
Not available |
Call for price
|
1 |
(screw m12 x 16) (only available with KIT2) |
usually ships 3-26 days |
3 |
N/A
|
Not available |
Call for price
|
4 |
(nut m10 self lock) (only available with KIT1) |
usually ships 3-26 days |
4 |
N/A
|
Not available |
Call for price
|
1 |
(washer 12 x 48 x 3) (only available with KIT2) |
usually ships 3-26 days |
5 |
270-8308
|
Eye rod |
$59.31
|
2 |
|
usually ships 17-28 days |
6 |
N/A
|
Not available |
Call for price
|
6 |
(spacer 10.5 x 14 x 3mm) (only available with KIT1) |
usually ships 3-26 days |
7 |
572-3559
|
SLEEVE SUCTION HOSE PKD |
$15.48
|
1 |
|
usually ships 17-28 days |
8 |
572-3571
|
SUPPORT SQUEEGEE PKD |
$183.90
|
1 |
|
usually ships 17-28 days |
9 |
N/A
|
Not available |
Call for price
|
1 |
(squeegee spring) (only available with KIT2) |
usually ships 3-26 days |
10 |
572-3580
|
Machine harness |
$192.01
|
1 |
|
usually ships 17-28 days |
11 |
270-0002
|
Footboard harness (blue) |
$90.43
|
1 |
|
usually ships 17-28 days |
12 |
572-3638
|
MICROSWITCH KIT |
$37.05
|
1 |
|
usually ships 17-28 days |
13 |
572-3635
|
THROTTLE KIT |
$490.19
|
1 |
(includes 14) |
usually ships 17-28 days |
14 |
572-3600
|
THROTTLE ELECTRONIC PKD |
$429.26
|
1 |
|
usually ships 17-28 days |
15 |
372-3069
|
50amp bolt down fuse |
$18.38
|
1 |
|
usually ships 17-28 days |
16 |
372-3070
|
Fuse holder |
$27.64
|
2 |
|
usually ships 17-28 days |
KIT1 |
572-3623
|
HARDWARE SAFETY BAR KIT |
$31.10
|
1 |
(includes 1,3, and 6) |
usually ships 17-28 days |
KIT2 |
572-3624
|
SPRING ZERO SETTING SQUEEG KIT |
$32.69
|
1 |
(includes 2,4, and 9) |
usually ships 17-28 days |
