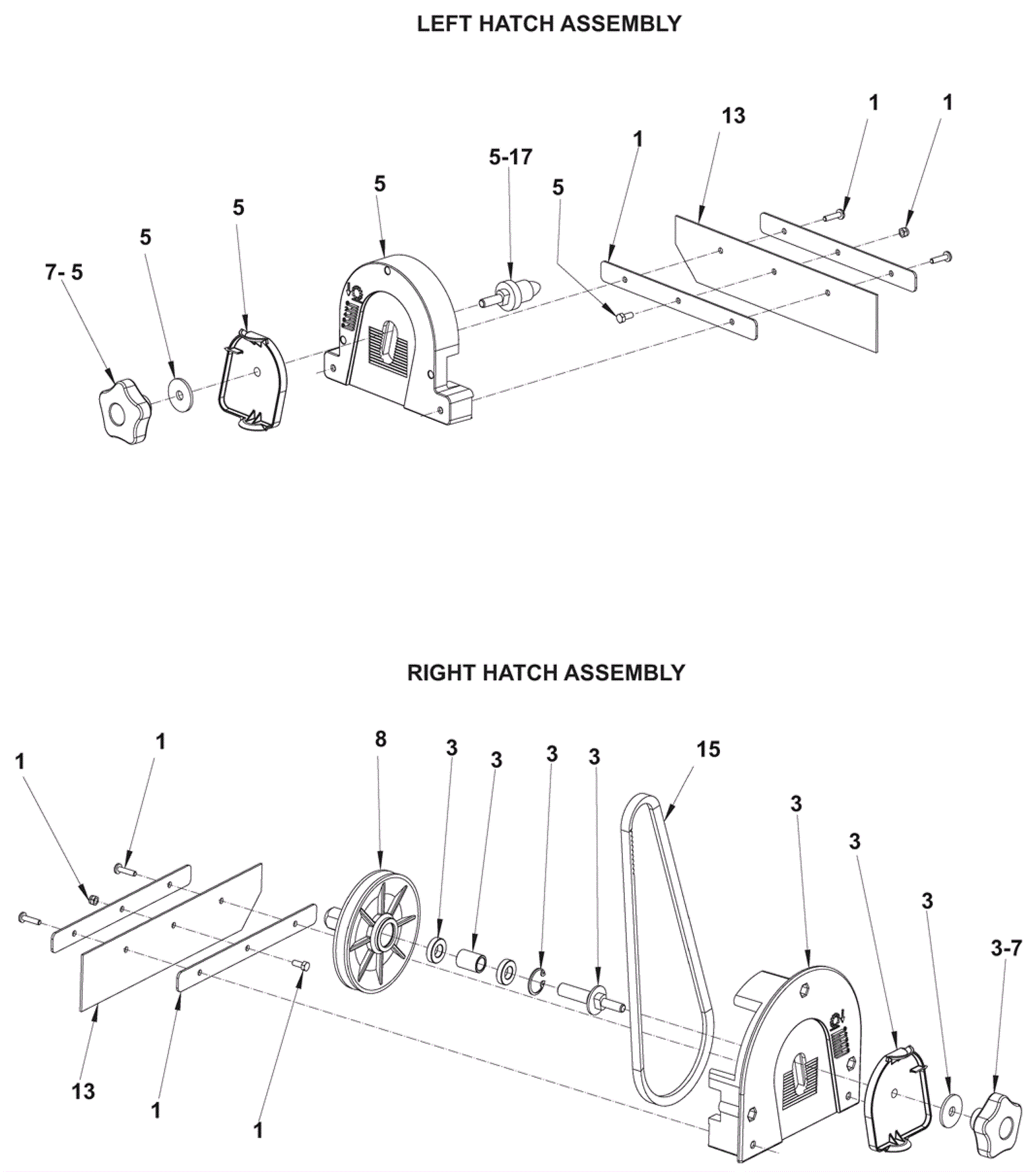

Left and Right Hatch Assembly

#PartDescription ReqNotesAvailability
1 272-9526 Skirts kit 1
3 272-8982 Right hatch fixing kit 1
5 272-9809 Left hatch fixing kit 1
7 272-0709 Handwheel 2
8 272-8983 Pulley 1
13 272-8556 Floor seal kit 1
15 272-8984 Belt 1
17 272-8985 Main broom pin 1
