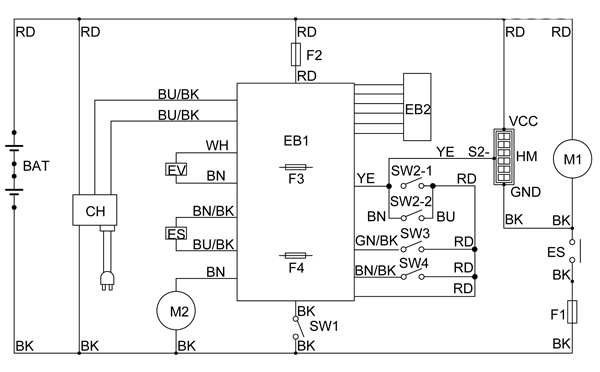

CA30 20B Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
CH 240-1126 Onboard battery charger $1,005.72 1 usually ships 16-41 days
EB1 240-6111 17 IN CONTROL CIRCUIT BOARD $184.12 1 usually ships 16-41 days
EB2 240-6112 LED INDICATOR BATTERY LEVEL $25.51 1 usually ships 16-41 days
ES 240-6106 ELECTOMAGNETIC SWTCH 24V DC $75.10 1 usually ships 16-41 days
EV 240-6132 Solution solenoid valve kit $25.51 1 ships same day
F1 240-6239 BRUSH CIRCUIT BREAKER (OBSOLETE) $49.86 1 usually ships 16-41 days
F2 240-0882 30amp circuit breaker $20.86 1 usually ships 16-41 days
M1 240-6124 20 IN BRUSH MOTOR $789.90 1 usually ships 16-41 days
M2 240-6199 VACUUM MOTOR $184.12 1 usually ships 16-41 days
SW1 240-6412 Switch $9.71 1 ships same day
SW2 240-6122 SWITCH $9.71 1 usually ships 16-41 days
SW3 240-6412 Switch $9.71 1 ships same day
HM 240-6136 HOUR METER $40.45 1 usually ships 16-41 days
