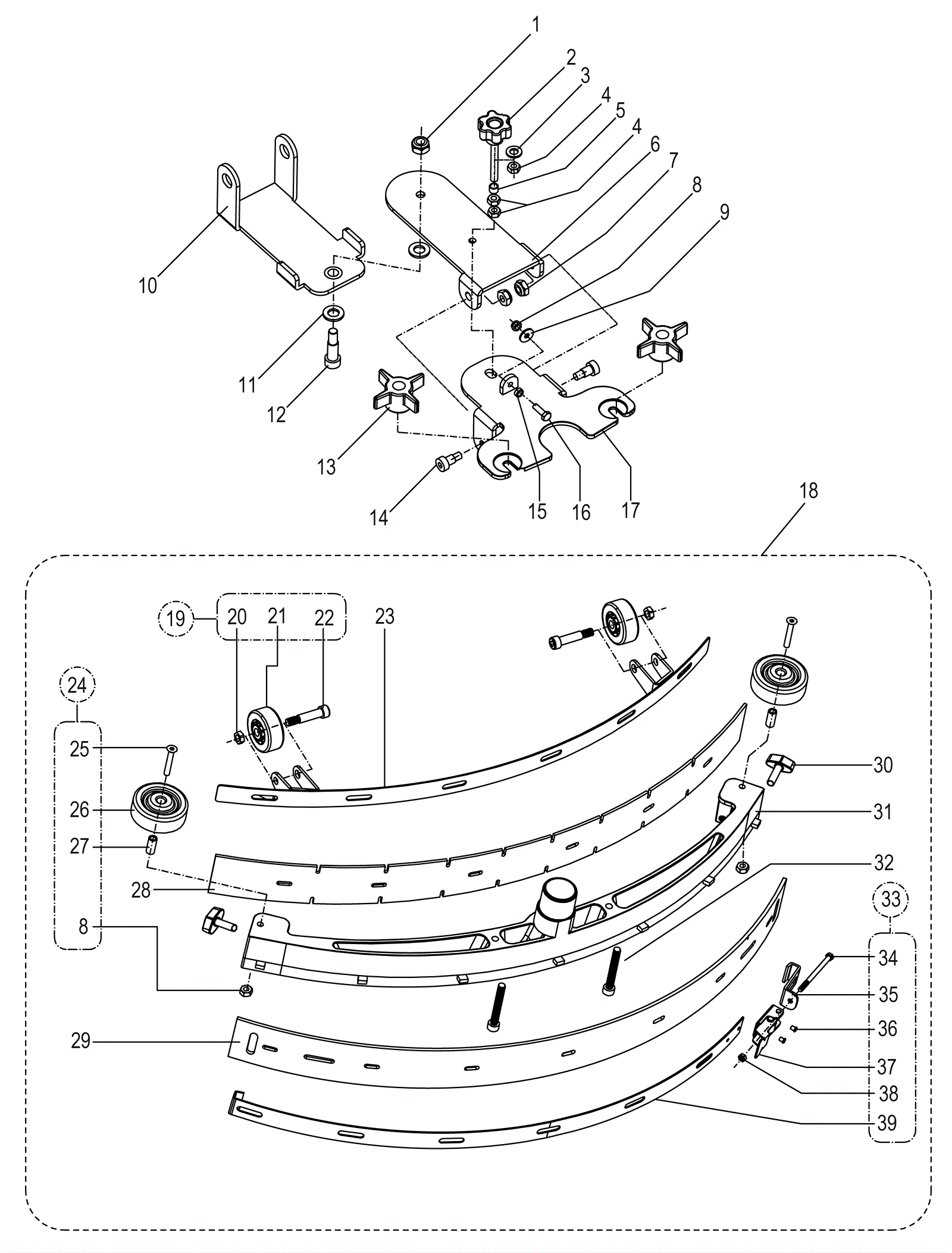

CA30 20B Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 240-2125 Nut M10 lock $9.71 1 usually ships 16-41 days
2 240-2115 Knob M8 x 55mm $9.71 1 usually ships 16-41 days
3 240-5375 WASHER 8.4X 18X 2 $9.71 1 usually ships 16-41 days
4 240-2118 Nut M8 $9.71 3 usually ships 16-41 days
5 240-6074 SPACER $9.71 1 usually ships 16-41 days
6 240-6063 BACK-SQUEEGEE-SUPPORT $28.74 1 usually ships 16-41 days
7 240-2120 Nut M8 lock $9.71 2 usually ships 16-41 days
8 999-9131 Nut M6 x 1 nylon lock stainless steel $0.99 3 ships same day
9 999-1261 Washer M6 flat stainless steel $0.99 1 ships same day
10 240-6064 FRONT-SQUEEGEE-SUPPORT $48.32 1 usually ships 16-41 days
11 240-2114 Washer $9.71 2 usually ships 16-41 days
12 240-6073 SCREW SHOULDER $9.71 1 ships same day
13 240-0532 Knob M8 $14.51 2 usually ships 16-41 days
14 240-2121 Screw M8 x 10 x 11.5mm shoulder $9.71 2 usually ships 1-5 days
15 240-0513 Bushing $9.71 1 usually ships 16-41 days
16 240-0357 Screw M6 x 20mm $9.71 1 usually ships 16-41 days
17 240-6062 SQUEEGEE-SUPPORT $35.37 1 usually ships 16-41 days
18 240-6076 32 inch squeegee kit $239.78 1 (includes 8, 19-39) ships same day
19 240-1148 Squeegee Roll Wheel Kit $16.07 2 (includes 20-22) ships same day
20 240-0348 Nut 5/16 locking $9.71 2 usually ships 16-41 days
21 240-0524 2 inch wheel $12.83 2 ships same day
22 240-0523 Bolt M9.5 x 31.5mm shoulder $14.51 2 usually ships 16-41 days
23 240-6068 Squeegee strap front $30.28 1 usually ships 16-41 days
24 240-2279 Bumper roller wheel kit $11.26 2 (includes 8 and 25-27) usually ships 16-41 days
25 240-5430 SCREW-SHOULDER M6X40 $9.71 2 usually ships 16-41 days
26 240-5922 BUMPER ROLLER $9.71 2 usually ships 16-41 days
27 240-5923 SPACER $9.71 2 usually ships 16-41 days
28a 270-4931 Squeegee blade 32 inch front gum rubber $20.86 1 ships same day
28b 372-3484 Squeegee blade 32 inch front Linatex $49.87 1 ships same day
28c 240-6082 Squeegee blade 32 inch front PRIMOthane $39.30 1 ships same day
29a 270-4932 Squeegee blade 32 inch rear gum rubber $22.41 1 ships same day
29b 372-3483 Squeegee blade rear Linatex $62.69 1 ships same day
29c 240-6083 Squeegee blade 32 inch rear PRIMOthane $69.78 1 ships same day
30 240-2143 Thumb screw $9.71 2 usually ships 16-41 days
31 240-2278 Squeegee weldment $75.10 1 usually ships 16-41 days
32 240-6070 SQUEEGEE SCREW $9.71 2 usually ships 16-41 days
33 240-6078 Squeegee strap rear $33.96 1 (includes 34-39) ships same day
34 240-2119 Screw M5 x 60mm $9.71 1 usually ships 16-41 days
35 240-6069 HOOK $9.71 1 ships same day
36 240-0521 Rivet M4 x 5mm $9.71 2 usually ships 16-41 days
37 240-5786 LATCH HOOD $32.55 1 usually ships 16-41 days
38 240-0522 Nut M5 lock $8.53 1 usually ships 18-27 days
39 240-6061 20 IN STRAP-SQUEEGEE BACK $17.61 1 usually ships 16-41 days
