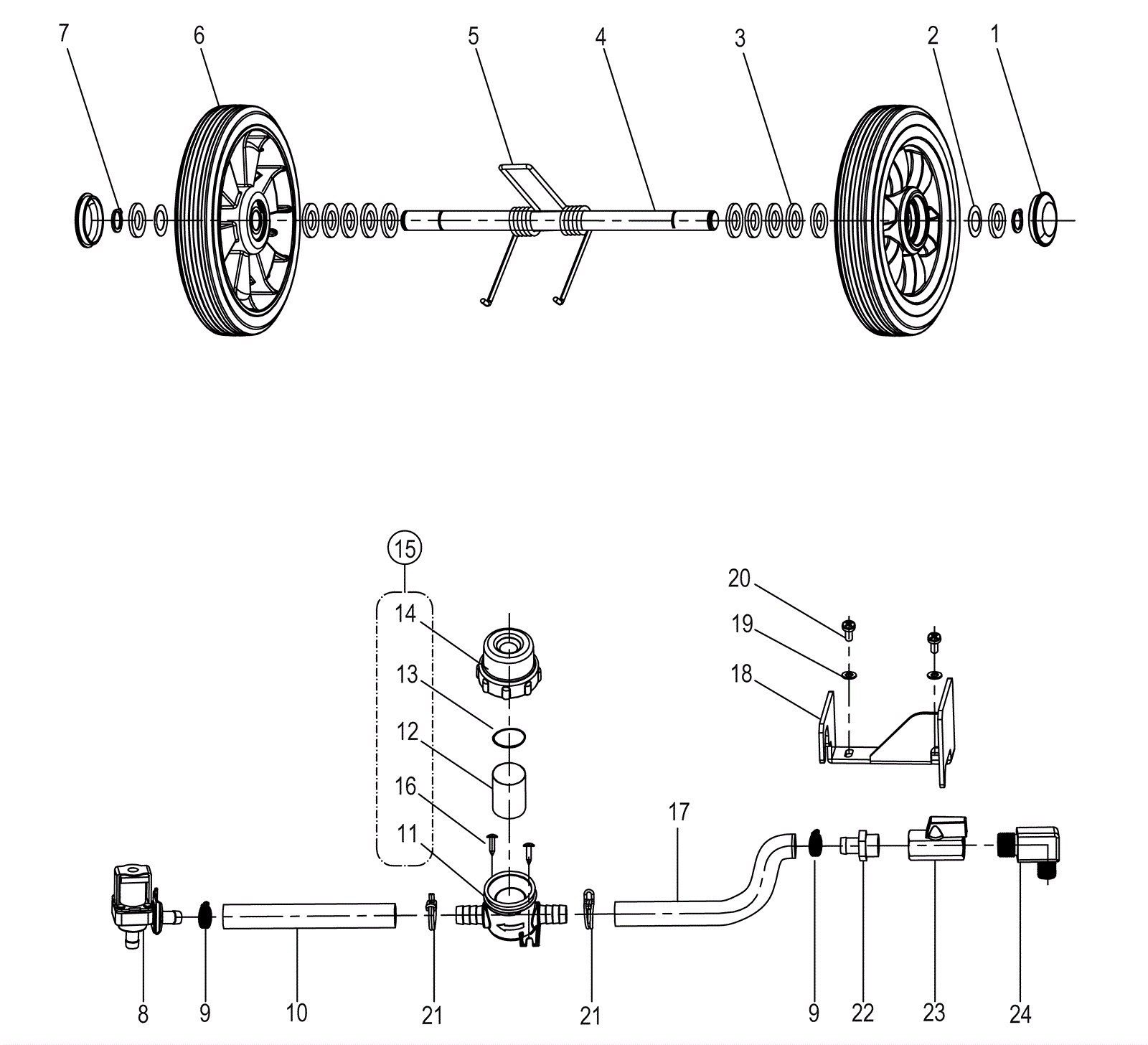

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
240-5986
|
WHEEL COVER |
2 |
|
|
2 |
240-2196
|
Wave washer |
2 |
|
|
3 |
240-5434
|
WASHER |
12 |
|
|
4 |
240-6138
|
WHEEL SHAFT |
1 |
|
|
5 |
240-2111
|
Spring |
1 |
|
|
6 |
240-6139
|
8 IN WHEEL |
2 |
|
|
7 |
240-2197
|
Snap spring |
2 |
|
|
8 |
240-6132
|
Solution solenoid valve kit |
1 |
|
|
9 |
240-0443
|
Clamp M10-16mm |
2 |
|
|
10 |
240-6168
|
TUBING 260MM |
1 |
|
|
11 |
240-6215
|
FILTER BASE |
1 |
|
|
12 |
240-6217
|
FILTER NET |
1 |
|
|
13 |
240-6216
|
O-RING |
1 |
|
|
14 |
240-6214
|
Filter cover |
1 |
|
|
15 |
240-2296
|
Filter kit |
1 |
(includes 11-14 and 16) |
|
16 |
240-5164
|
SCREW ST4X12 |
2 |
|
|
17 |
240-6169
|
TUBING L160MM |
1 |
|
|
18 |
240-6226
|
SOLENOID VALVE BRACKET |
1 |
|
|
19 |
999-9089
|
Washer M4 flat stainless steel |
2 |
|
|
20 |
240-6391
|
SCREW M4X10 |
2 |
|
|
21 |
240-0485
|
16mm clamp |
2 |
|
|
22 |
240-5735
|
HOSE BARB |
1 |
|
|
23 |
240-5766
|
BALL VALVE |
1 |
|
|
24 |
240-6218
|
ELBOW BRASS |
1 |
|
|
