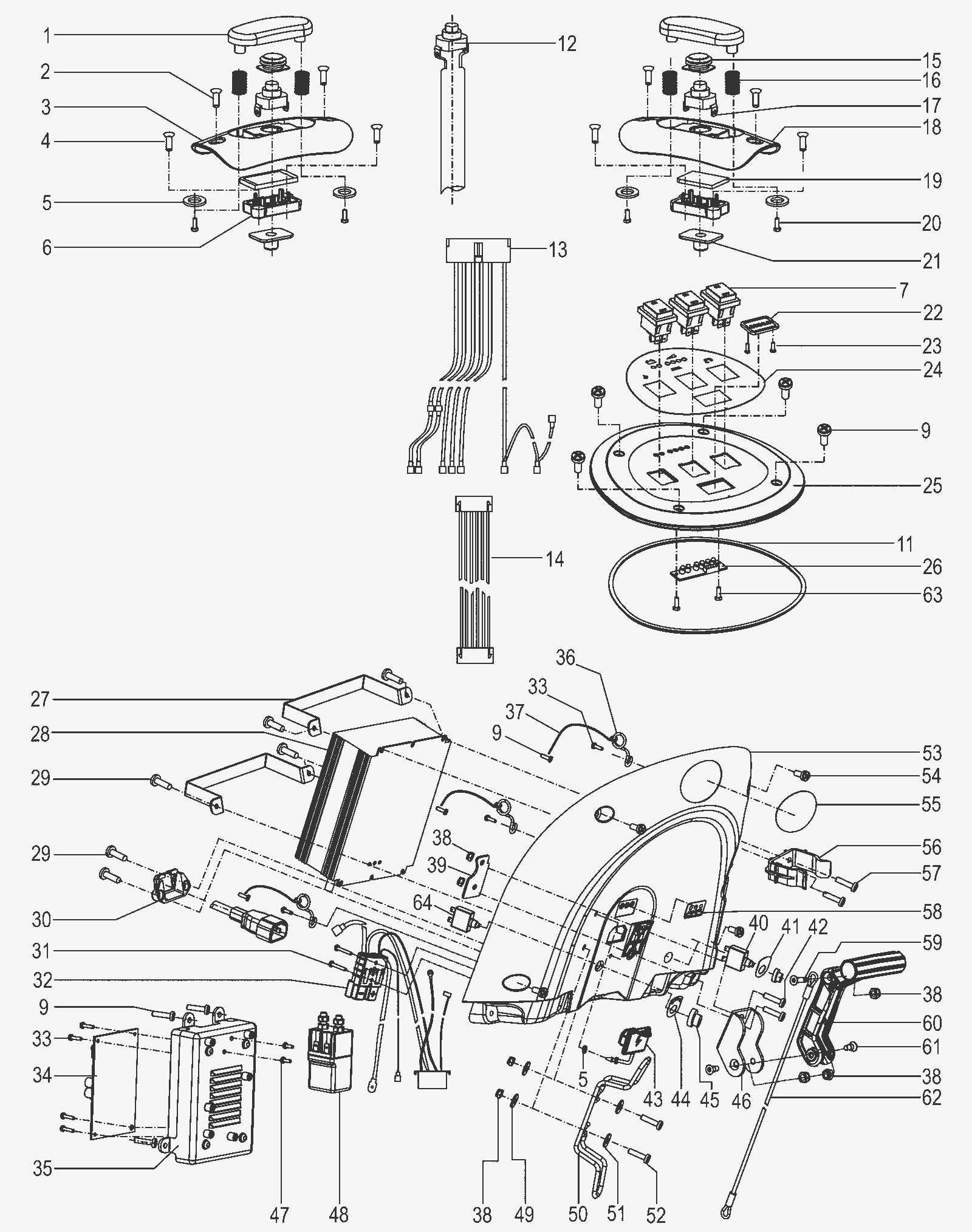

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
240-6087
|
SAFETY SWITCH KNOB |
2 |
|
|
2 |
240-6483
|
SCREW KT3.5X15 |
4 |
|
|
3 |
240-6084
|
SAFETY SWITCH COVER LEFT |
1 |
|
|
4 |
240-6135
|
SCREW KA3.5X12 |
4 |
|
|
5 |
240-6137
|
WASHER -3.6X-8X.5 5 |
5 |
|
|
6 |
240-6094
|
SWITCH FIX FRAME |
2 |
|
|
7 |
240-6412
|
Switch |
3 |
|
|
9 |
240-6109
|
SCREW TM4X10 |
11 |
|
|
11 |
240-6134
|
SWITCH SEAL STRIP |
1 |
|
|
12 |
240-6121
|
SAFETY SWTCH CONCTR CBL KIT |
2 |
|
|
13 |
240-6120
|
20 IN SWITCH CONNECTER CBL KIT |
1 |
|
|
14 |
240-6113
|
CNTROL PANEL CONNECTER CBL |
1 |
|
|
15 |
240-6101
|
SWITCH SEAL BUSHING |
2 |
|
|
16 |
240-6086
|
SPRING |
4 |
|
|
17 |
240-6122
|
SWITCH |
2 |
|
|
18 |
240-6097
|
SAFETY SWITCH COVER RIGHT |
1 |
|
|
19 |
240-6104
|
GASKET |
2 |
|
|
20 |
240-5150
|
SCREW |
4 |
|
|
21 |
240-6098
|
SWITCH SEAL RING |
2 |
|
|
22 |
240-6136
|
HOUR METER |
1 |
|
|
23 |
240-5167
|
SCREW PB3.0X8 |
2 |
|
|
24 |
240-6041
|
20 IN DECAL CONTROL PANEL |
1 |
|
|
25 |
240-6115
|
20 SWITCH COVER |
1 |
|
|
26 |
240-6112
|
LED INDICATOR BATTERY LEVEL |
1 |
|
|
27 |
240-6092
|
CHARGER FIX BRACKET |
2 |
|
|
28a |
240-1126
|
Onboard battery charger |
1 |
|
|
28b |
240-6018
|
Charger cable |
1 |
|
|
29 |
240-5339
|
SCREW |
6 |
|
|
30 |
240-6095
|
PLUG FIX |
1 |
|
|
31 |
240-5079
|
SCREW ST3.5X18 |
2 |
|
|
32 |
240-6119
|
20 IN MAIN CABLE KIT |
1 |
|
|
33 |
240-5078
|
SCREW PB 3.5X9.5 |
9 |
|
|
34 |
240-6111
|
17 IN CONTROL CIRCUIT BOARD |
1 |
|
|
35 |
240-6093
|
PCB HOUSING |
1 |
|
|
36 |
240-6110
|
NYLON CABLE HOOK |
3 |
|
|
37 |
240-6222
|
INLET STRAP |
3 |
|
|
38 |
240-2170
|
Nut M5 lock |
7 |
|
|
39 |
240-6125
|
HAND FIX PANEL |
1 |
|
|
40 |
240-0882
|
30amp circuit breaker |
2 |
|
|
41 |
240-6050
|
VACUUM CIRCUIT LABEL |
1 |
|
|
42 |
272-7570
|
Screw M5 x 25 |
2 |
|
|
43 |
240-6100
|
POWER SAFETY COVER |
1 |
|
|
44 |
240-6049
|
BRUSH CIRCUIT LABEL |
1 |
|
|
45 |
240-5971
|
CIRCUIT BREAKER CAP |
2 |
|
|
46 |
240-6067
|
HAND BRACKET |
1 |
|
|
47 |
240-6114
|
SCREW PM4X8 |
2 |
|
|
48 |
240-6106
|
ELECTOMAGNETIC SWTCH 24V DC |
1 |
|
|
49 |
240-0472
|
Washer M5 x M11 plain finish |
2 |
|
|
50 |
240-5925
|
CABLE SUPPORT |
1 |
|
|
51 |
999-1261
|
Washer M6 flat stainless steel |
2 |
|
|
52 |
240-0067
|
Screw M5 x 16mm |
2 |
|
|
53 |
240-6244
|
COVER CONTROL HOUSING |
1 |
|
|
54 |
240-2065
|
Screw M5-.8 x 12mm |
4 |
|
|
55 |
N/A
|
Not available |
1 |
(20 inch serial number decal) |
|
56 |
240-0616
|
Drain hose clamp |
1 |
|
|
57 |
240-5431
|
SCREW ST3.5X16 |
2 |
|
|
58 |
240-6039
|
LABEL BATTERY LEVEL |
1 |
|
|
59 |
240-6072
|
SCREW M5X20 |
1 |
|
|
60 |
240-6065
|
HANDLE LIFT |
1 |
|
|
61 |
240-6071
|
SCREW M5 |
2 |
|
|
62 |
240-6066
|
CABLE SQUEEGEE LIFT |
1 |
|
|
63 |
240-5167
|
SCREW PB3.0X8 |
2 |
|
|
64 |
240-0882
|
30amp circuit breaker |
2 |
|
|
N/S |
372-3486
|
Circuit breaker |
1 |
|
|
N/S |
372-3487
|
Power harness |
1 |
|
|
