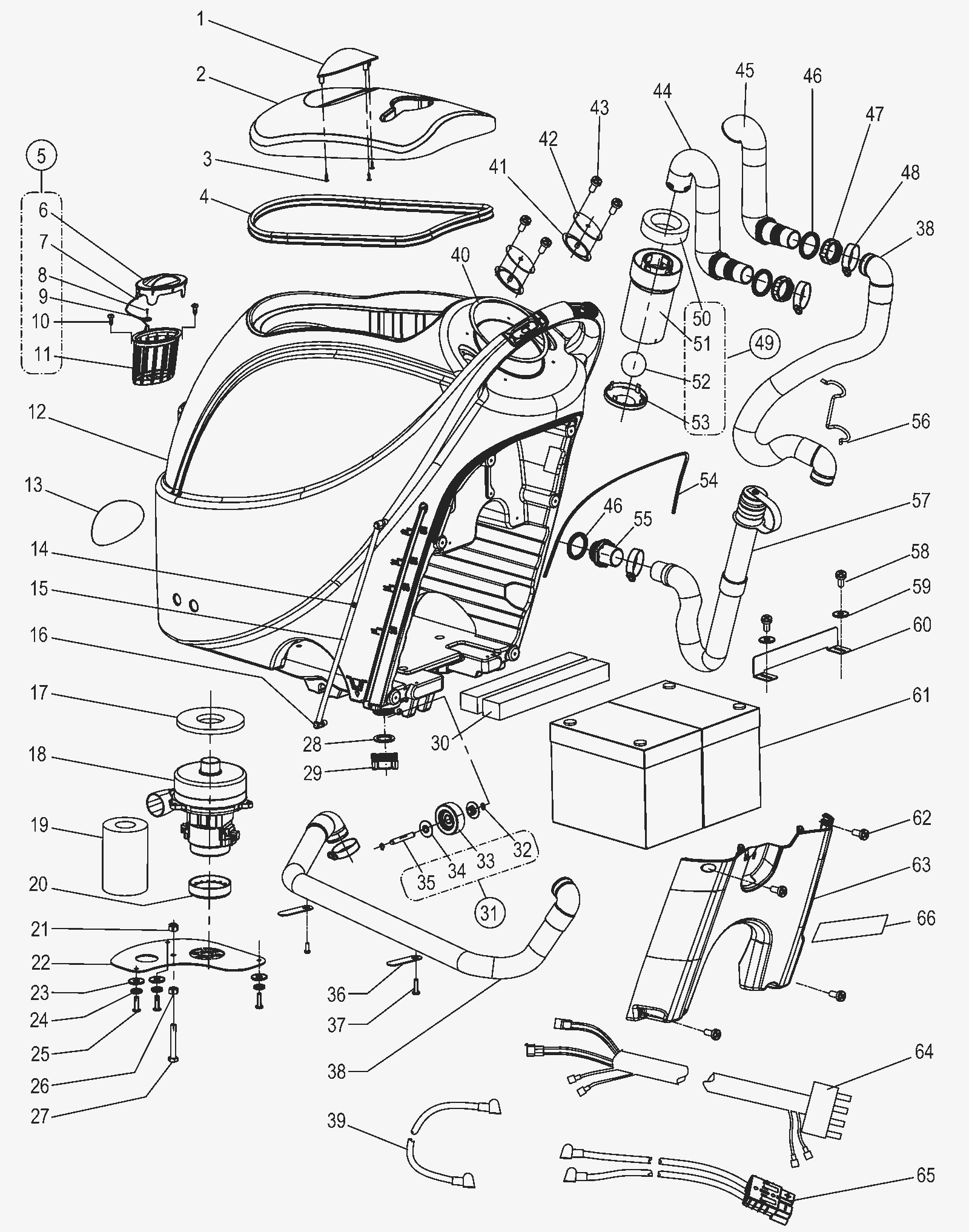

Tank Assembly

#PartDescription ReqNotesAvailability
1 240-6151 Recovery tank cover handle 1
2 240-6187 Recovery tank cover 1
3 240-5339 SCREW 3
4 240-6188 Gasket 1
5 240-6225 TANK FILTER NET KIT 1 (includes 6-11)
6 240-6220 FILTER COVER 1
7 240-6222 INLET STRAP 1
8 240-6223 SCREW TA3.5X12 2
9 240-5154 WASHER 2
10 240-0462 Screw M4 x 16mm self-tapping 2
11 240-6219 FILTER SUPPORT 1
12 240-6185 TANK-BATTERY MODEL 1
13 240-6046 LOGO LABEL 1
14 240-6221 FLOATING BALL OF WATER LEVEL 1
15 240-6224 INSPECTION TUBE 1
16 240-9324 ELBOW HOSE BARB 2
17 240-5928 GASKET 1
18 240-6199 VACUUM MOTOR 1
19 472-1488 ACOUSTIC INSULATION PIPE 1
20 240-6201 TOP GASKET SUCTION MOTOR 1
21 999-0496 Nut M8-1.25 nylon insert lock stainless steel 1
22 240-6192 COVER-VACUUM MOTOR 1
23 240-5432 WASHER 1
24 999-0876 Washer M6 split lock plain finish 3
25 240-5292 SCREW M5X15 3
26 240-5390 NUT M8 1
27 240-6164 SCREW M8X65 1
28 240-6194 OUTLET O-RING 1
29 240-6189 OUTLET COVER 1
30 240-6207 BATTERY SPACER PANEL 2
31 240-6142 2.5 IN WHEEL KIT 1 (includes 32-35)
32 240-5433 RING D 17 2
33 240-6140 2.5 IN WHEEL 1
34 240-6141 2.5 IN HUB CAP 2
35 240-6143 TRANSPORT WHEEL SHAFT 1
36 240-6191 RETAINER PLATE 2
37 240-6109 SCREW TM4X10 2
38 270-4933 Vacuum hose 2
39 240-6117 BATTERY CABLE KIT 2
40 240-6107 GASKET 1
41 240-6099 Seal plate cover 2
42 240-6102 Seal plate 2
43 240-5339 SCREW 4
44 240-6205 DRAIN HOSE CONNECTOR 1
45 240-6204 SUCTION TUBE CONNECTER 1
46 240-6193 SUCTION TUBE GASKET 3
47 240-6190 SEALING KNOB 2
48 270-5017 Clamp 4
49 240-6208 Float kit 1 (includes 50-53)
50 240-6206 CAGE FLOAT COMPLETE 1
51 240-6202 FLOAT BRACKET 1
52 240-1392 Float 1
53 N/A Not available 1 (Float cover only available with Kit 240-6208)
54 240-6103 Control seal gasket 1
55 240-6144 DRAIN HOSE CONNECTER 1
56 240-0514 U hose holder 1
57 240-6170 Drain hose 1
58 240-6109 SCREW TM4X10 2
59 999-9089 Washer M4 flat stainless steel 2
60 240-6195 BATTERY BRACKET 1
61 162-0042 12V 115Ah AGM battery (Group 31) (SNSR) 2
62 240-2065 Screw M5-.8 x 12mm 4
63 240-6243 BATTERY COVER BLACK 1
64 240-6123 MOTOR CABLE ASSEMBLY 1
65 240-6118 POWER CABLE 1
66 240-6051 WARNING LABEL 1
