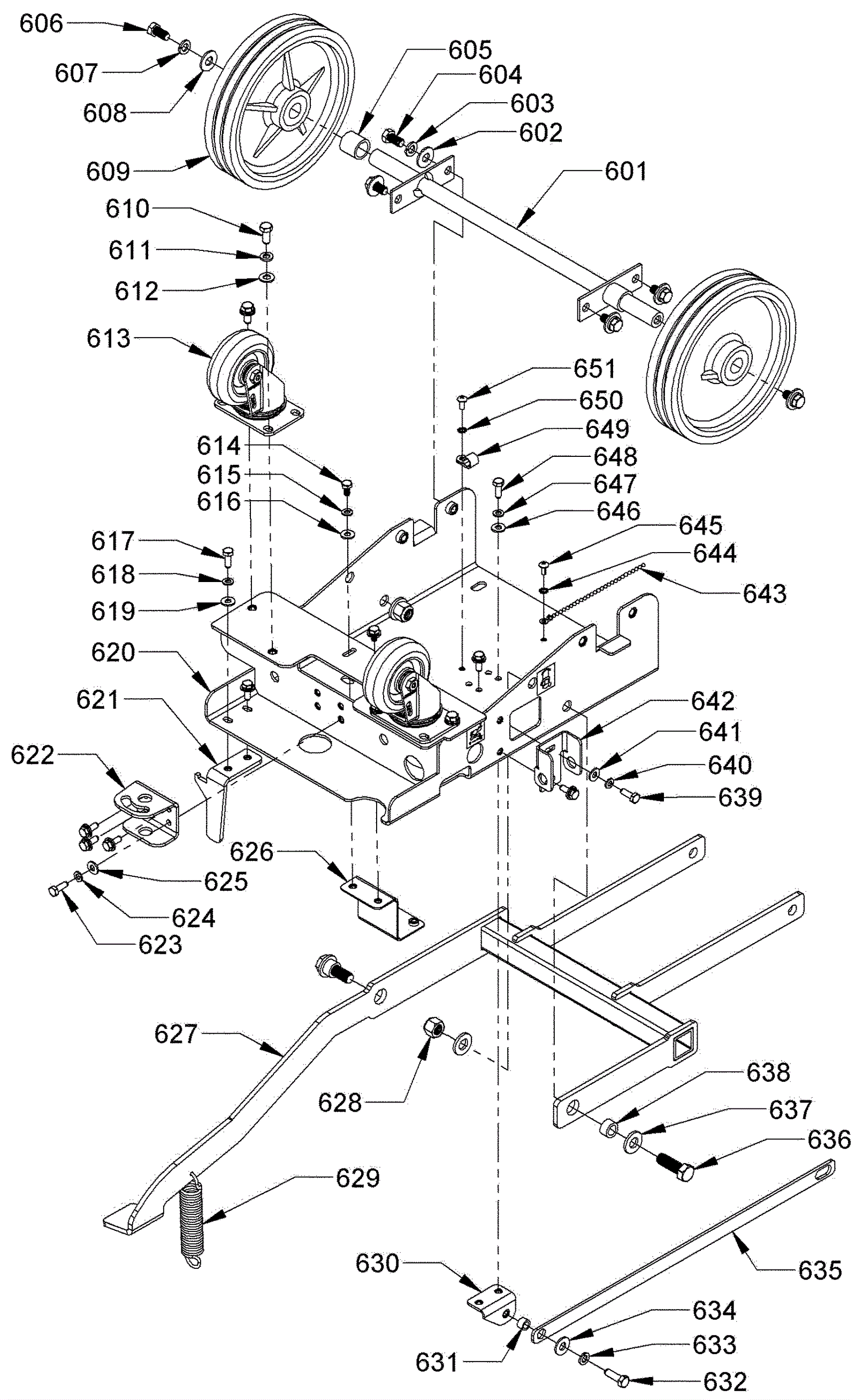

Wrangler 2012AB Frame Assembly

#PartDescriptionPriceReqNotesAvailability
601 164-9894 Axle assembly Call for price 1 usually ships 18-33 days
602 164-9794 Washer thick sae flat (pkg of 2) $10.34 4 usually ships 18-33 days
603 999-0034 Washer 3/8 split lock plain finish $1.82 4 ships same day
604 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 4 ships same day
605 164-9895 Spacer $4.95 2 usually ships 18-33 days
606 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 2 ships same day
607 999-0034 Washer 3/8 split lock plain finish $1.82 2 ships same day
608 164-9794 Washer thick sae flat (pkg of 2) $10.34 2 usually ships 18-33 days
609a 164-0029 8 inch wheel with bearings $281.33 2 ships same day
609b 164-8059 Wheel bearing $14.63 4 usually ships 18-33 days
609c 991-9191 8"x1 5/8" RUBBER WHEEL W/3/4 BRGS $64.99 2 (NON-OEM) usually ships 14-21 days
610 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 4 ships same day
611 999-0028 Washer 5/16 split lock plain finish $0.99 4 ships same day
612 164-9775 Washer (pkg of 10) $9.63 4 usually ships 18-33 days
613 164-7995 Swivel caster wheel $60.08 2 ships same day
614 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 2 ships same day
615 999-0060 Washer 1/4 split lock plain finish $0.99 2 ships same day
616 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
617 999-1103 Bolt 1/4-20 x 3/4 hex head with nylon patch $4.94 2 ships same day
618 999-0060 Washer 1/4 split lock plain finish $0.99 2 ships same day
619 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
620 164-9856 Frame Call for price 1 usually ships 18-33 days
621 164-9896 Deck lift stop Call for price 1 usually ships 18-33 days
622 164-9897 Squeegee pivot bracket $19.79 1 ships same day
623 999-1103 Bolt 1/4-20 x 3/4 hex head with nylon patch $4.94 4 ships same day
624 999-0060 Washer 1/4 split lock plain finish $0.99 4 ships same day
625 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
626 164-9898 Solution solenoid mounting bracket $37.84 1 usually ships 18-33 days
627 164-9899 Deck lift $410.58 1 usually ships 18-33 days
628 999-0262 Nut 1/2-13 nylon insert jam lock zinc plated $0.99 2 ships same day
629 164-9859 Pressure spring $5.72 1 usually ships 18-33 days
630 164-9900 Guide arm bracket Call for price 1 usually ships 18-33 days
631 164-9901 Spacer $5.70 1 usually ships 18-33 days
632 164-9804 Bolt 5/16-18 x 1 hex head (pkg of 5) $9.79 1 usually ships 18-33 days
633 999-0028 Washer 5/16 split lock plain finish $0.99 1 ships same day
634 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
635 164-9902 Guide arm Call for price 1 usually ships 18-33 days
636 164-9068 Hex bolt $8.64 2 usually ships 18-33 days
637 164-9072 Flat washer (pkg of 5) $6.33 2 usually ships 18-33 days
638 164-0841 Bushing $5.50 2 usually ships 18-33 days
639 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 2 ships same day
640 999-0060 Washer 1/4 split lock plain finish $0.99 2 ships same day
641 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
642 164-9903 Solution valve mount bracket Call for price 1 usually ships 18-33 days
643a 164-1503 8 inch round bead chain $3.04 10 inch usually ships 1-5 days
643b 164-1502 End coupling $2.57 1 usually ships 1-5 days
644 999-0311 Washer #10 external star lock zinc plated $0.99 1 ships same day
645 999-0586 Screw 10-24 x 1/2 truss head stainless steel $0.99 1 ships same day
646 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
647 999-0060 Washer 1/4 split lock plain finish $0.99 2 ships same day
648 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 2 ships same day
649 164-1067 P Clamp $1.72 1 usually ships 1-5 days
650 999-0311 Washer #10 external star lock zinc plated $0.99 1 ships same day
651 999-0586 Screw 10-24 x 1/2 truss head stainless steel $0.99 1 ships same day
