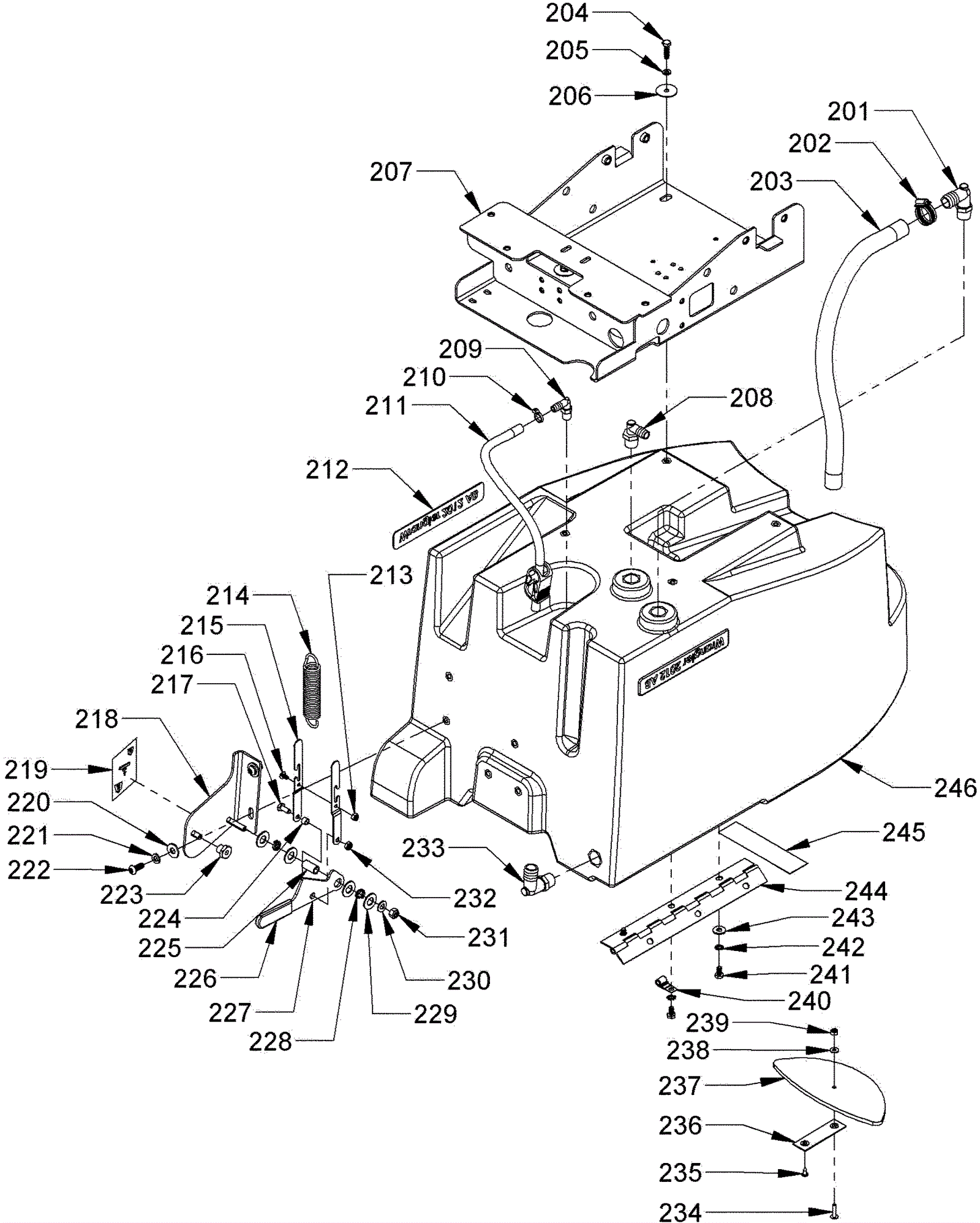

Wrangler 2012AB Solution Tank Assembly

#PartDescriptionPriceReqNotesAvailability
201 164-0407 90 degree hose barb $8.20 1 usually ships 18-33 days
202 997-2005 Hose clamp $2.15 1 ships same day
203 164-8218 39 inch solution drain hose $4.75 20 inch usually ships 3-26 days
204 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 4 ships same day
205 999-0060 Washer 1/4 split lock plain finish $0.99 4 ships same day
206 999-0160 Washer 1/4 x 1 1/4 fender zinc plated $0.99 4 ships same day
207 164-9856 Frame Call for price 1 usually ships 18-33 days
208 164-9857 Elbow $5.08 1 ships same day
209 164-0187 90 degree elbow barb $6.23 1 ships same day
210 164-4612 Wire tie $9.37 1 usually ships 18-33 days
211 991-1401 Clear vinyl tubing (sold by the inch) $0.55 16 inch usually ships 11-21 days
212 164-9858 Decal Call for price 2 usually ships 18-33 days
213 999-0199 Nut 10-24 nylon insert lock zinc plated $0.99 1 ships same day
214 164-9859 Pressure spring $5.72 1 usually ships 18-33 days
215 164-9860 Retainer Call for price 2 usually ships 18-33 days
216 999-0010 Screw 10-24 x 3/8 truss head slotted zinc plated $0.99 1 ships same day
217 999-1103 Bolt 1/4-20 x 3/4 hex head with nylon patch $4.94 1 ships same day
218 164-9861 Bracket Call for price 1 usually ships 18-33 days
219 164-9862 Decal Call for price 1 usually ships 18-33 days
220 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
221 999-0028 Washer 5/16 split lock plain finish $0.99 2 ships same day
222 999-1333 Screw 5/16-18 x 3/4 button head stainless steel $4.17 2 ships same day
223 164-0149 Drive lug $6.11 1 ships same day
224 164-0136 Bushing $2.75 1 ships same day
225 164-9863 Spacer $7.10 1 usually ships 18-33 days
226 164-0285 Valve lever grip $4.36 1 usually ships 18-33 days
227 164-9864 Lift arm Call for price 1 usually ships 18-33 days
228 164-5035 Spring $3.56 2 usually ships 18-33 days
229 164-5168 Flat nylon washer $2.71 4 ships same day
230 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
231 164-6778 Nut 5/16-18 thin hex with nylon insert $6.34 1 usually ships 18-33 days
232 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 ships same day
233 164-0407 90 degree hose barb $8.20 1 usually ships 18-33 days
234 999-0166 Screw 10-24 x 5/8 truss head slotted zinc plated $5.50 1 ships same day
235 999-0569 Screw 10 x 1/2 pan head phillips sheet metal $0.99 1 ships same day
236 164-9865 Strap $5.50 1 usually ships 18-33 days
237 164-9866 Cover $27.39 1 usually ships 18-33 days
238 999-0998 Washer #10 flat stainless steel $0.99 1 ships same day
239 999-0199 Nut 10-24 nylon insert lock zinc plated $0.99 1 ships same day
240 164-9867 J-clip Call for price 1 usually ships 18-33 days
241 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 3 ships same day
242 999-0017 Washer 1/4 external star lock $0.99 3 ships same day
243 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 3 ships same day
244 164-9850 Recovery tank hinge Call for price 1 usually ships 18-33 days
245 164-9868 Warning decal $4.95 1 usually ships 18-33 days
246 164-9869 Solution tank $482.85 1 usually ships 18-33 days
