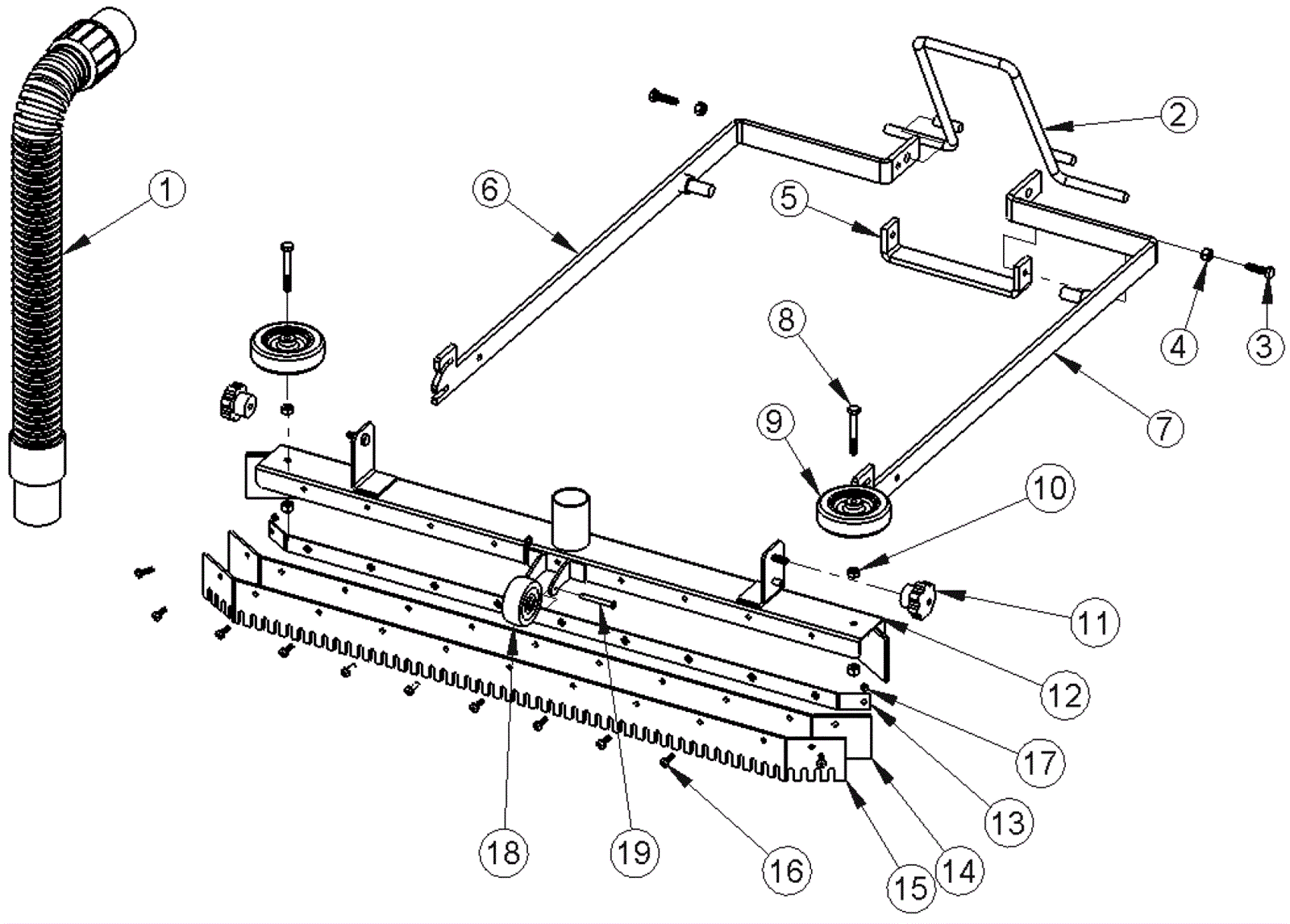

ALPHA 24 Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 164-4904 Hose $114.35 1 usually ships 8-23 days
2 164-9404 Crossbar $20.90 1 usually ships 8-23 days
3 999-1103 Bolt 1/4-20 x 3/4 hex head with nylon patch $4.94 2 ships same day
4 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
5 164-4903 Latch $40.98 1 usually ships 1-5 days
6 164-9545 Right hand lift arm bracket $76.56 1 usually ships 8-23 days
7 164-9546 Left hand lift arm bracket $76.56 1 usually ships 8-23 days
8 999-0258 Bolt 1/4-20 x 2 hex head grade 5 zinc plated $0.99 2 ships same day
9 164-4901 Wheel $14.36 2 usually ships 1-5 days
10 999-0190 Nut 1/4-20 hex plain finish $0.99 2 ships same day
11 164-9410 Squeegee knob $13.86 2 usually ships 8-23 days
12 164-9547 Squeegee housing $141.52 1 usually ships 8-23 days
13 164-4899 Squeegee support blade $60.28 2 usually ships 1-5 days
14 164-8196 Squeegee blade solid $66.83 2 usually ships 8-23 days
15 164-8195 Squeegee blade slotted $68.31 2 usually ships 8-23 days
16 999-0314 Screw 10-24 x 3/4 round head phillips zinc plated $0.99 22 ships same day
17 164-5000 Hex nut (pkg of 10) $6.34 4 ships same day
18 164-8811 Wheel $5.50 1 usually ships 8-23 days
19 164-9548 Clevis pin with reusable cotter $4.22 1 usually ships 8-23 days
KIT 1 364-0001 Complete FMS kit $669.30 1 (includes 2-19) usually ships 8-23 days
KIT 2 364-0002 Squeegee assembly $442.26 1 (includes 12-19) usually ships 8-23 days
