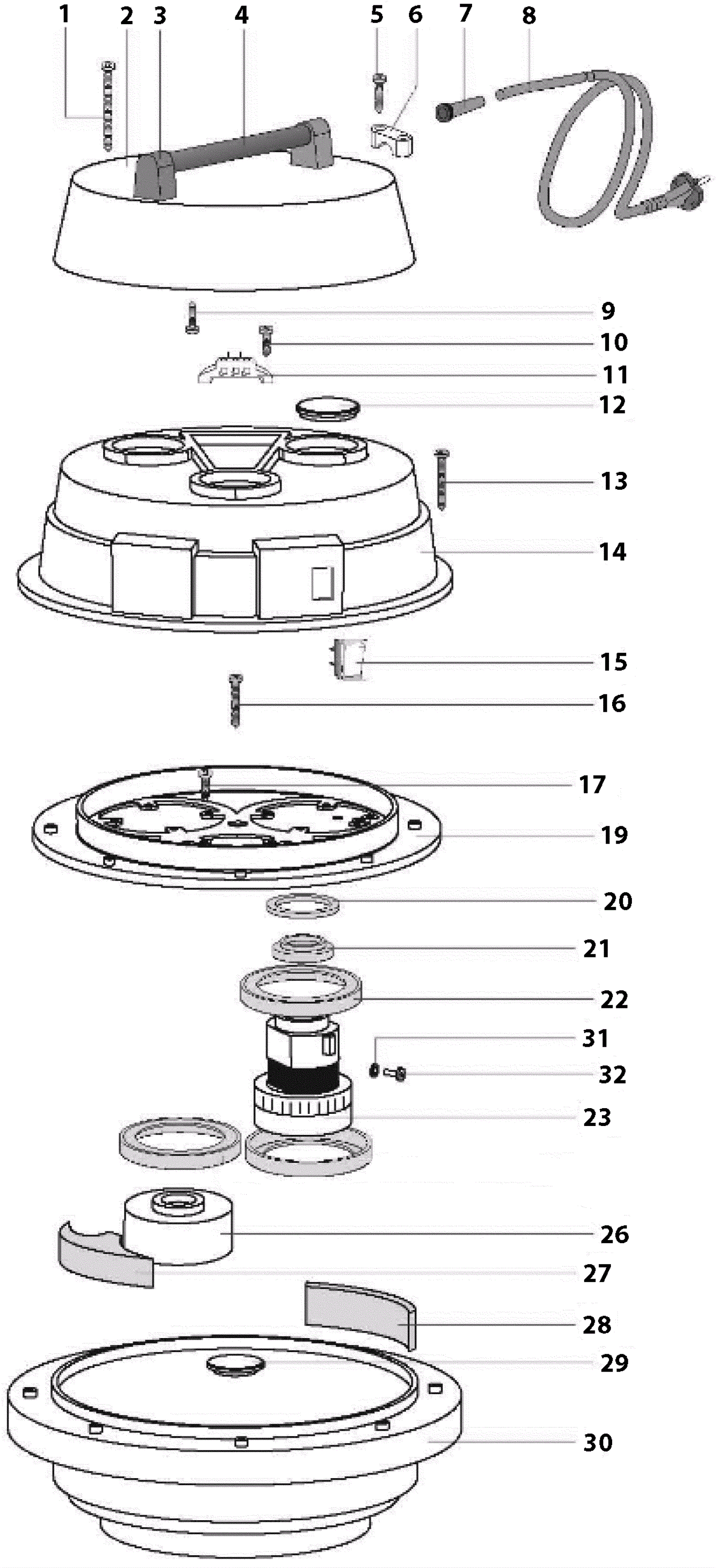

ALPHA 24 Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1 164-4825 Screw 5-1/5 x 50mm self tapping $3.83 6 usually ships 1-5 days
2 164-3195 Top cover $55.00 1 ships same day
3 164-4783 Transport handle bracket $9.36 1 ships same day
4 164-9278 Handle tube $7.16 1 ships same day
5 164-4781 Screw M5 x 20mm self tapping $3.83 2 usually ships 1-5 days
6 164-4753 Cord clamp $6.49 1 usually ships 1-5 days
7a 164-9522 120V strain relief $2.84 1 usually ships 8-23 days
7b 164-4752 240V strain relief $4.49 1 usually ships 1-5 days
8a 164-4862 16/3 power cord 50 foot $182.74 1 usually ships 8-23 days
8b 164-9491 240V cord $76.07 1 usually ships 8-23 days
9 164-4781 Screw M5 x 20mm self tapping $3.83 4 usually ships 1-5 days
10 164-4945 Screw M5 x 14mm phillips $2.24 2 usually ships 1-5 days
11 164-9492 Wire terminal (OBSOLETE) Call for price 1 usually ships 8-23 days
12 164-3197 Covering cup $5.28 2 usually ships 1-5 days
13 164-4835 Screw M5 x 35mm self tapping intake $1.52 8 usually ships 1-5 days
14 164-9493 Motor cover $31.90 1 usually ships 8-23 days
15 164-4779 Switch $27.72 1 usually ships 1-5 days
16 164-4782 Screw m5 x 30mm self-tapping (OBSOLETE) $2.24 1 usually ships 8-23 days
17 164-4834 Screw 5 x 25 self tapping $2.24 12 usually ships 1-5 days
19 164-3198 Motor separtor $32.23 1 usually ships 1-5 days
20 164-3199 Washer 8 x 85 x 65 $5.28 1 usually ships 1-5 days
21 164-7244 Plastic motor ring $1.91 1 usually ships 1-5 days
22 164-9494 L gasket $37.68 4 usually ships 8-23 days
23a 164-9476 120V vac motor $267.80 1 usually ships 8-23 days
23b 164-9495 240V vacuum motor $184.97 1 usually ships 8-23 days
26 164-9496 Cap $19.58 2 usually ships 8-23 days
27 164-9497 Upper triangular spacer $10.01 3 usually ships 8-23 days
28 164-9498 Gasket 50 x 10 x 125 inch $2.18 3 usually ships 8-23 days
29 164-9499 Base cup $2.77 2 usually ships 8-23 days
31 164-4836 Nut M4 hex star lock $2.38 1 usually ships 1-5 days
32 164-9501 Screw M4 x 8mm $2.38 1 usually ships 8-23 days
N/S 164-9503 NSS logo decal Call for price 1 usually ships 8-23 days
