ALPHA 16

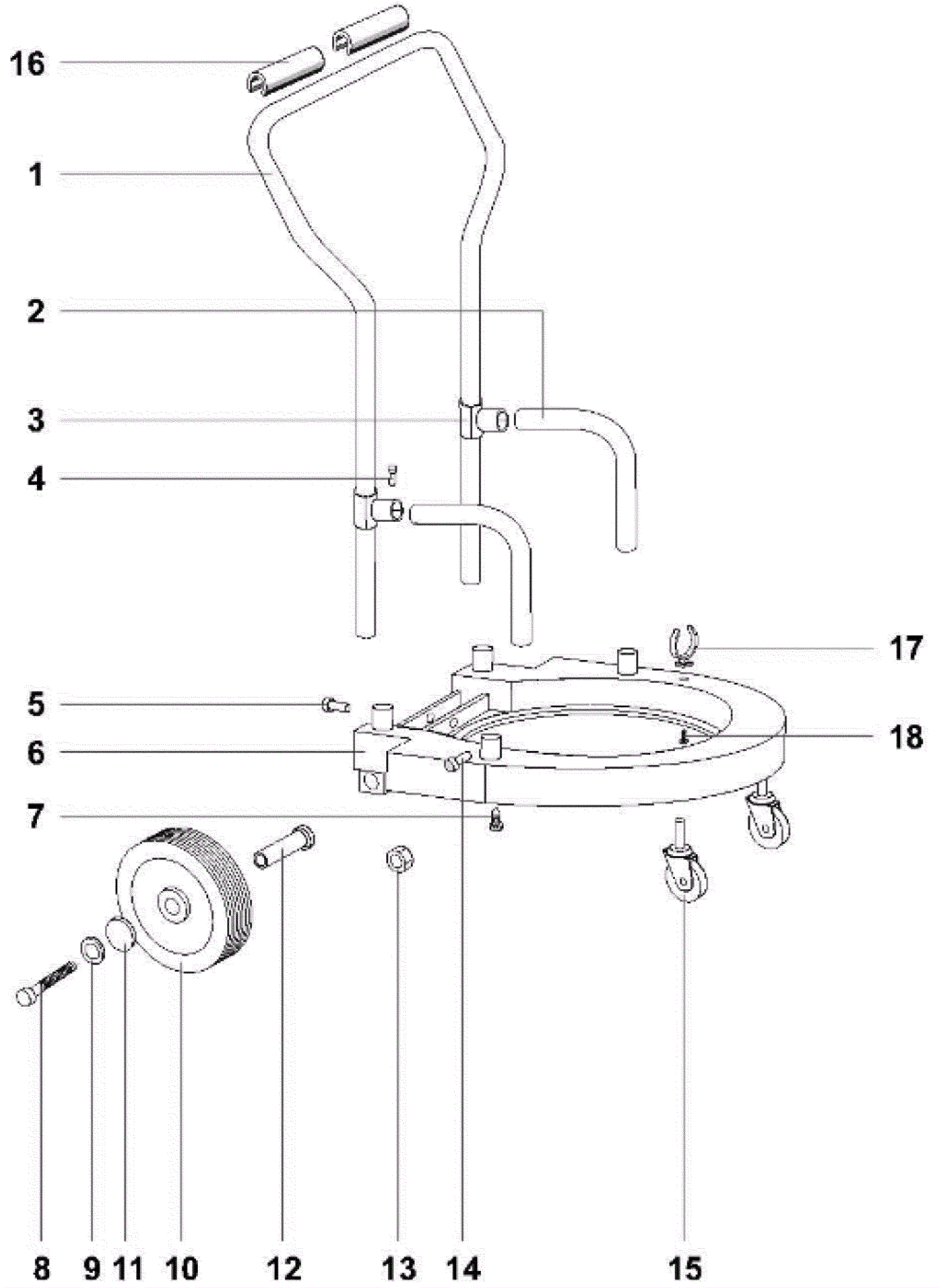

Transport Assembly
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
1
164-9513
Handle
Call for price
1
usually ships 6-20 days
2
164-9514
Handle support
Call for price
2
usually ships 6-20 days
3
164-9515
T tube
Call for price
2
usually ships 6-20 days
4
164-9135
Pop rivet M5 x 19
$1.80
2
usually ships 6-20 days
5
164-9135
Pop rivet M5 x 19
$1.80
2
usually ships 6-20 days
6
164-9516
Transport base
$98.65
1
usually ships 6-20 days
7
164-4945
Screw M5 x 14mm phillips
$2.04
6
usually ships 1-5 days
8
164-9517
Wheel bolt
$6.85
2
usually ships 6-20 days
9
164-9518
Washer M12
$1.68
2
usually ships 6-20 days
10
164-4917
Rear wheel
$44.26
2
usually ships 6-20 days
11
164-9136
Wheel cap
$2.76
2
usually ships 1-5 days
12
164-9519
Plastic axle
$3.24
2
usually ships 6-20 days
13
164-9520
Locking nut
$2.04
2
usually ships 6-20 days
14
164-9135
Pop rivet M5 x 19
$1.80
2
usually ships 6-20 days
15
164-9521
Caster
$12.85
2
usually ships 6-20 days
16
164-9138
Handle grips
$2.52
2
usually ships 1-5 days
17
164-4927
Hose clamp mount ring
$7.86
1
usually ships 6-20 days
18
164-4945
Screw M5 x 14mm phillips
$2.04
1
usually ships 1-5 days
