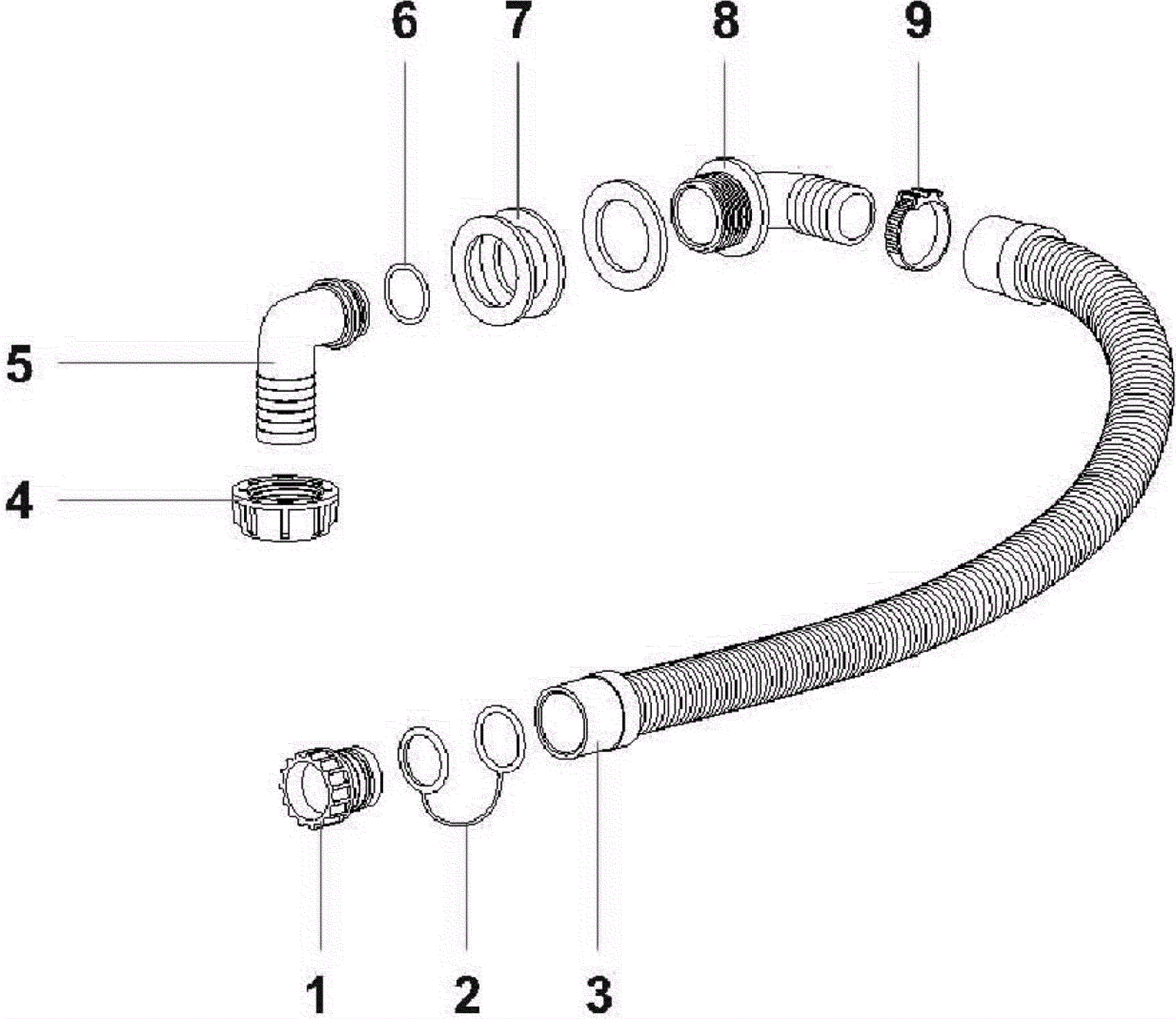

ALPHA 16 Drain Hose Assembly

#PartDescriptionPriceReqNotesAvailability
1 164-4929 Drain hose plug $11.17 1 usually ships 8-23 days
2 164-4928 Plug holding strap $9.74 1 usually ships 8-23 days
3 164-4925 Drain hose $31.90 1 usually ships 8-23 days
4 164-9509 Drain hose connector ring $16.45 1 usually ships 8-23 days
5 164-9510 Drain hose barb $37.07 1 usually ships 8-23 days
6 164-9511 Gasket ring $1.72 1 usually ships 8-23 days
7 164-4923 Drain seal gasket $5.50 3 usually ships 1-5 days
8 164-9512 Drain hose elbow $13.64 1 usually ships 8-23 days
9 164-4926 Drain hose clamp $9.08 1 usually ships 1-5 days
