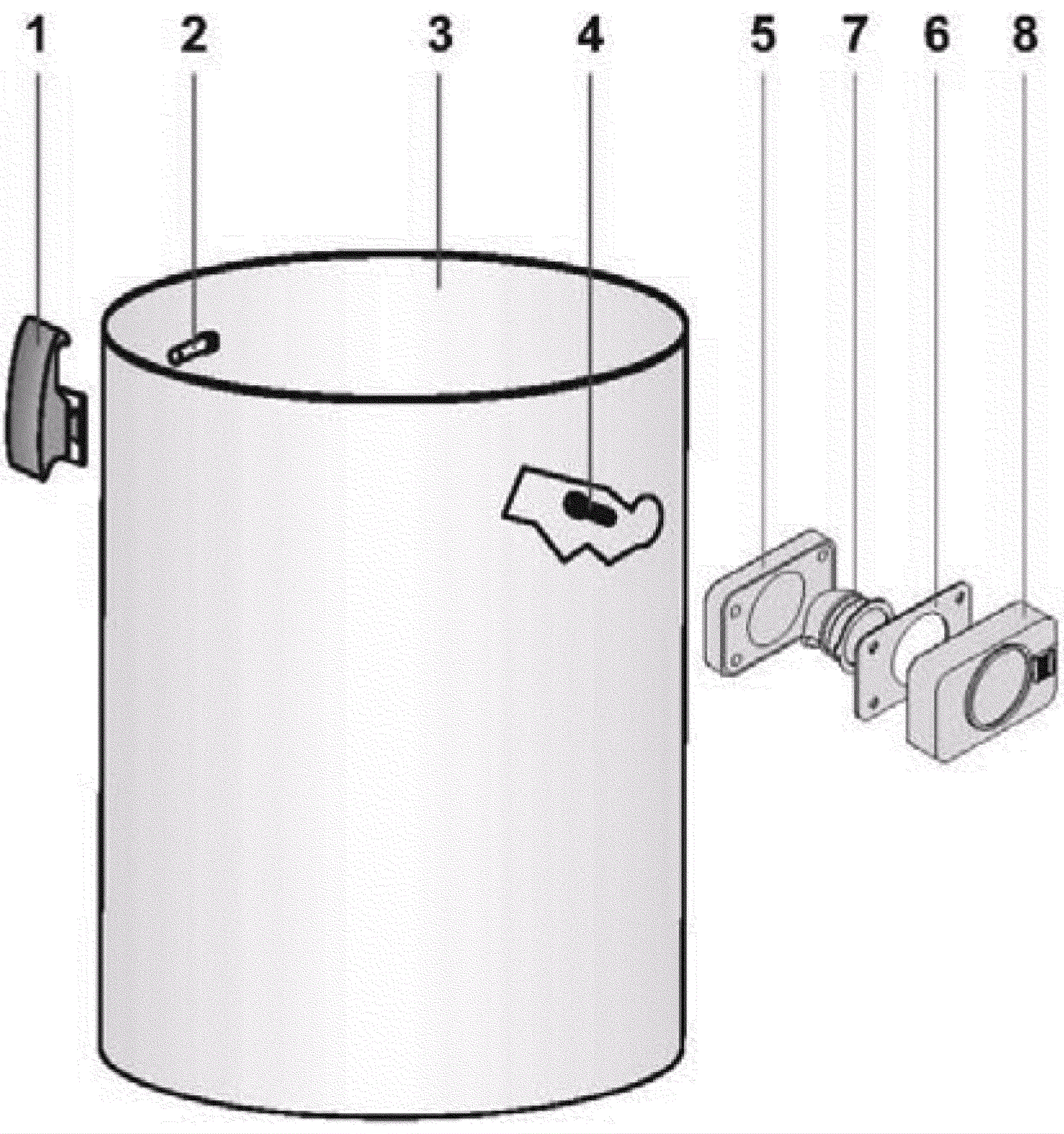

ALPHA 16 Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 164-4828 Lid clamp (Designer) $15.86 2 usually ships 8-23 days
2 164-9135 Pop rivet M5 x 19 $1.98 4 usually ships 8-23 days
3 164-9507 Tank $111.43 1 usually ships 8-23 days
4 164-4782 Screw m5 x 30mm self-tapping (OBSOLETE) $2.24 4 usually ships 8-23 days
5 164-4933 Intake support $5.50 1 usually ships 8-23 days
6 164-4907 Intake gasket $9.04 1 usually ships 8-23 days
7 164-9508 Intake deflector $8.91 1 usually ships 8-23 days
8 164-4908 Plastic intake $15.29 1 usually ships 8-23 days
