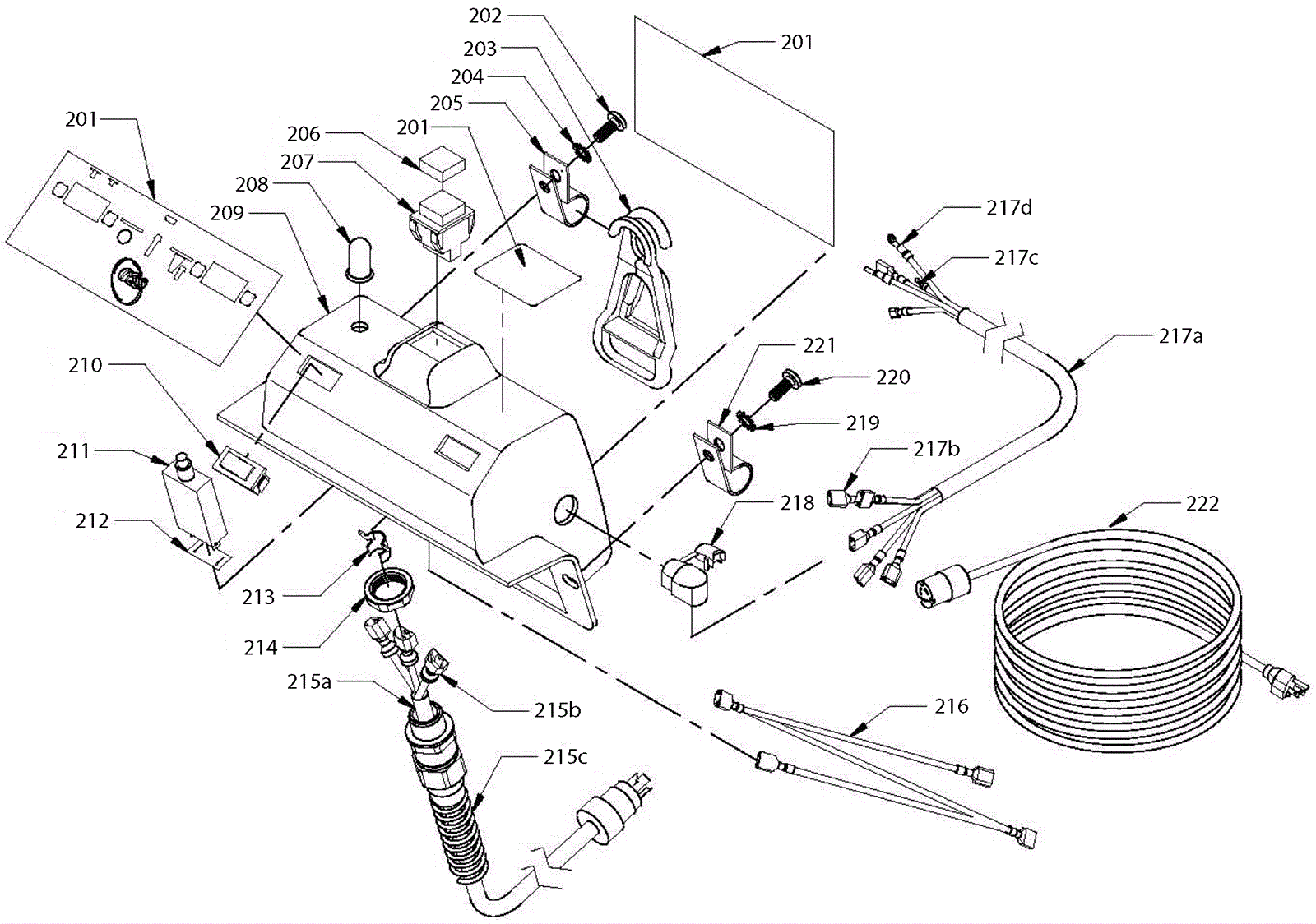

| # | Part | Description |
Req | Notes | Availability |
|---|
201 |
164-4513
|
Stallion decal kit |
1 |
|
|
202 |
999-0405
|
Screw 1/4-20 x 5/8 round head slotted zinc plated |
1 |
|
|
203 |
164-4500
|
Strain relief |
1 |
|
|
204 |
999-0017
|
Washer 1/4 external star lock |
1 |
|
|
205 |
164-9118
|
P clamp |
1 |
|
|
206 |
164-0281
|
Push button switch boot |
1 |
|
|
207 |
164-4510
|
Momentary spray switch |
1 |
|
|
208 |
164-4511
|
Circuit breaker button seal |
1 |
|
|
209 |
164-4506
|
Switch box |
1 |
|
|
210 |
164-4036
|
Rocker switch with boot |
2 |
(includes boot) |
|
211a |
991-1608
|
2amp circuit breaker |
1 |
|
|
211b |
164-4508
|
240V 1amp circuit breaker |
1 |
|
|
212 |
164-4033
|
Circuit breaker insulator |
1 |
|
|
213 |
164-4515
|
Strain relief cord clamp |
1 |
|
|
214 |
164-4516
|
Strain relief nut |
1 |
|
|
215a |
164-4501
|
14/3 17 inch pigtail cord with twist lock |
1 |
(includes 215b and 215c) |
|
215b |
164-0553
|
Male push on coupler |
3 |
|
|
215c |
164-4502
|
Strain relief |
1 |
|
|
216 |
164-4642
|
Jumper wire (switch box) |
1 |
|
|
217a |
164-4505
|
Interconnect cord |
1 |
(includes 217b-217d) |
|
217b |
164-4644
|
Female terminal |
6 |
|
|
217c |
998-0017
|
1/4 female insulated connector |
3 |
|
|
217d |
164-4649
|
10 ring terminal |
1 |
|
|
218 |
164-4504
|
Heyco strain relief |
1 |
|
|
219 |
999-0017
|
Washer 1/4 external star lock |
1 |
|
|
220 |
999-0405
|
Screw 1/4-20 x 5/8 round head slotted zinc plated |
1 |
|
|
221 |
164-9118
|
P clamp |
1 |
|
|
222a |
164-4560
|
120V 50 foot power cord with twist lock |
1 |
|
|
222b |
164-4562
|
Shuko cord 240v 75ft |
1 |
|
|
