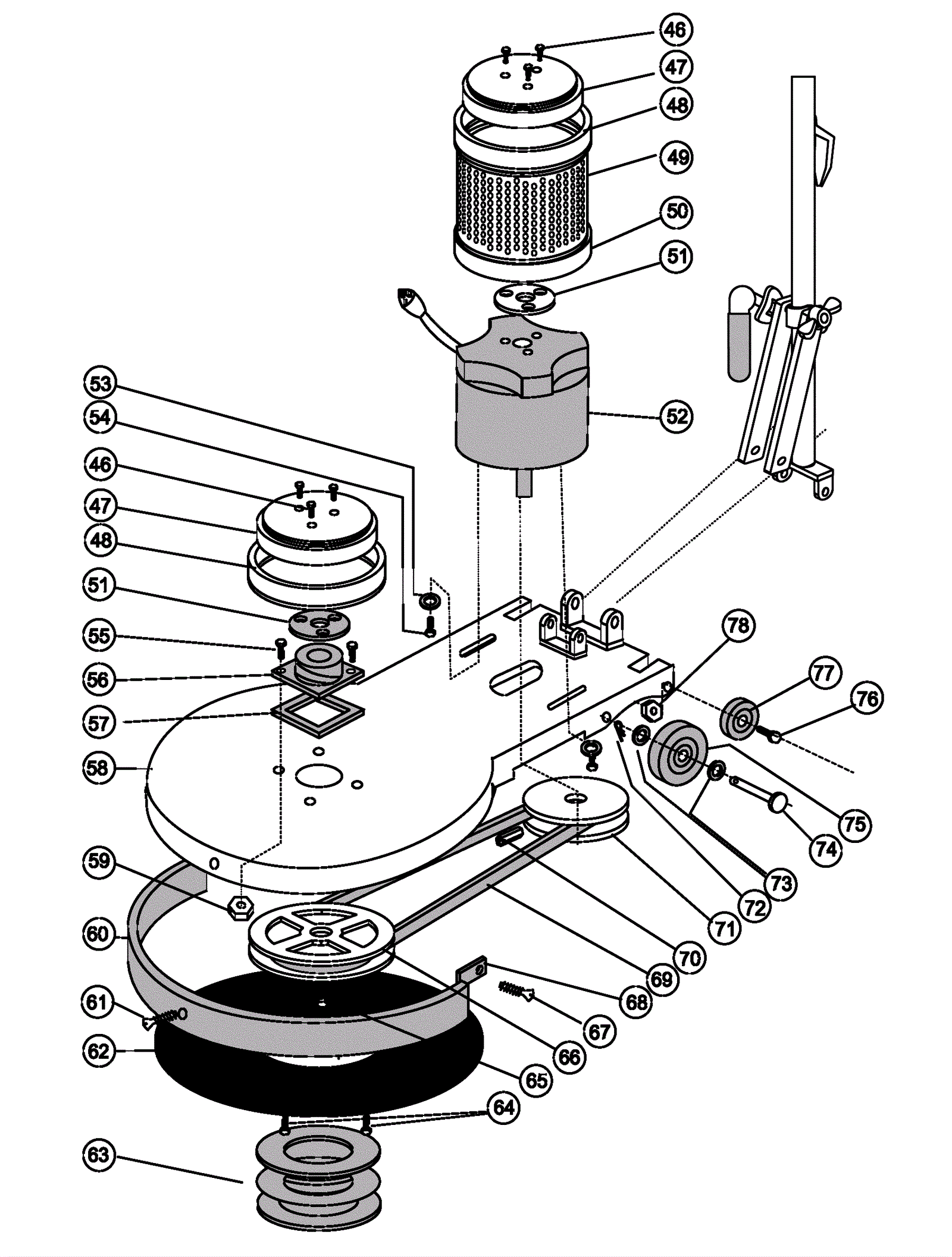

ULTRA DC19 Machine Assembly

#PartDescriptionPriceReqNotesAvailability
46 263-1074 Drip cap mounting screw $3.66 usually ships 12-17 days
47 263-1054 Front drip cap cover $81.40 usually ships 12-17 days
48 263-5049 Frame drip cap cover bumper $36.30 usually ships 12-17 days
49 263-1075 Two-speed motor screen $51.44 usually ships 12-17 days
50 263-1076 Two-speed motor screen bumper (yellow) $30.80 usually ships 12-17 days
51 263-1077 Cork drip cap gasket $18.37 usually ships 12-17 days
52 263-5060 UHS motor $786.50 usually ships 12-17 days
53 263-5059 Washer $2.20 usually ships 12-17 days
54 263-1012 Motor mounting bolt $2.20 usually ships 1-5 days
55 263-5062 Bearing block mount bolt $4.40 usually ships 12-17 days
56 263-1056 Bearing block $198.00 usually ships 12-17 days
57 263-5061 Bearing block gasket $7.70 usually ships 12-17 days
58a 263-5063 19 inch base casting $774.40 usually ships 12-17 days
58b 263-5064 21 inch base casting $792.00 usually ships 12-17 days
59 263-5065 Motor mount lock nut $2.20 usually ships 12-17 days
60a 263-5066 19 inch bumper $15.62 usually ships 12-17 days
60b 263-5067 21 inch bumper $46.20 usually ships 12-17 days
61 268-0013 Screw $4.40 usually ships 12-17 days
62a 263-1014 19 inch floppy disk pad driver $220.00 usually ships 1-5 days
62b 263-1057 20 inch floppy disk pad driver $220.00 usually ships 12-17 days
63 263-5068 Snap in pad retainer (black) $50.60 usually ships 12-17 days
64 263-1042 Apron screw $4.40 usually ships 12-17 days
65 263-5069 Bolt $2.20 usually ships 12-17 days
66 263-5070 Pulley driver $157.30 usually ships 12-17 days
67 268-0013 Screw $4.40 usually ships 12-17 days
68a 263-5071 19 inch bumper strap $20.90 usually ships 12-17 days
68b 263-5072 21 inch bumper $23.10 usually ships 12-17 days
69a 263-5036 Drive belt (DC-2000) $36.30 usually ships 1-5 days
69b 263-1048 Drive belt $36.30 usually ships 12-17 days
70 263-5069 Bolt $2.20 usually ships 12-17 days
71a 263-5074 Pulley for 2000RPM motor $83.60 usually ships 12-17 days
71b 263-5075 Pulley for 1170RPM motor $71.50 usually ships 12-17 days
71c 263-5076 Pulley for 1500RPM motor $77.00 usually ships 12-17 days
72 263-5043 Cotter pin $4.40 usually ships 12-17 days
73 263-1031 Spring washer $5.50 usually ships 12-17 days
74 263-5042 Axle $12.10 usually ships 12-17 days
75 263-1029 6 inch wheel $40.70 usually ships 12-17 days
76 263-5077 Transport wheel axle bolt $4.40 usually ships 12-17 days
77 263-5035 4 inch transport wheel $16.50 usually ships 12-17 days
78 263-5078 Lock nut $2.20 usually ships 12-17 days
