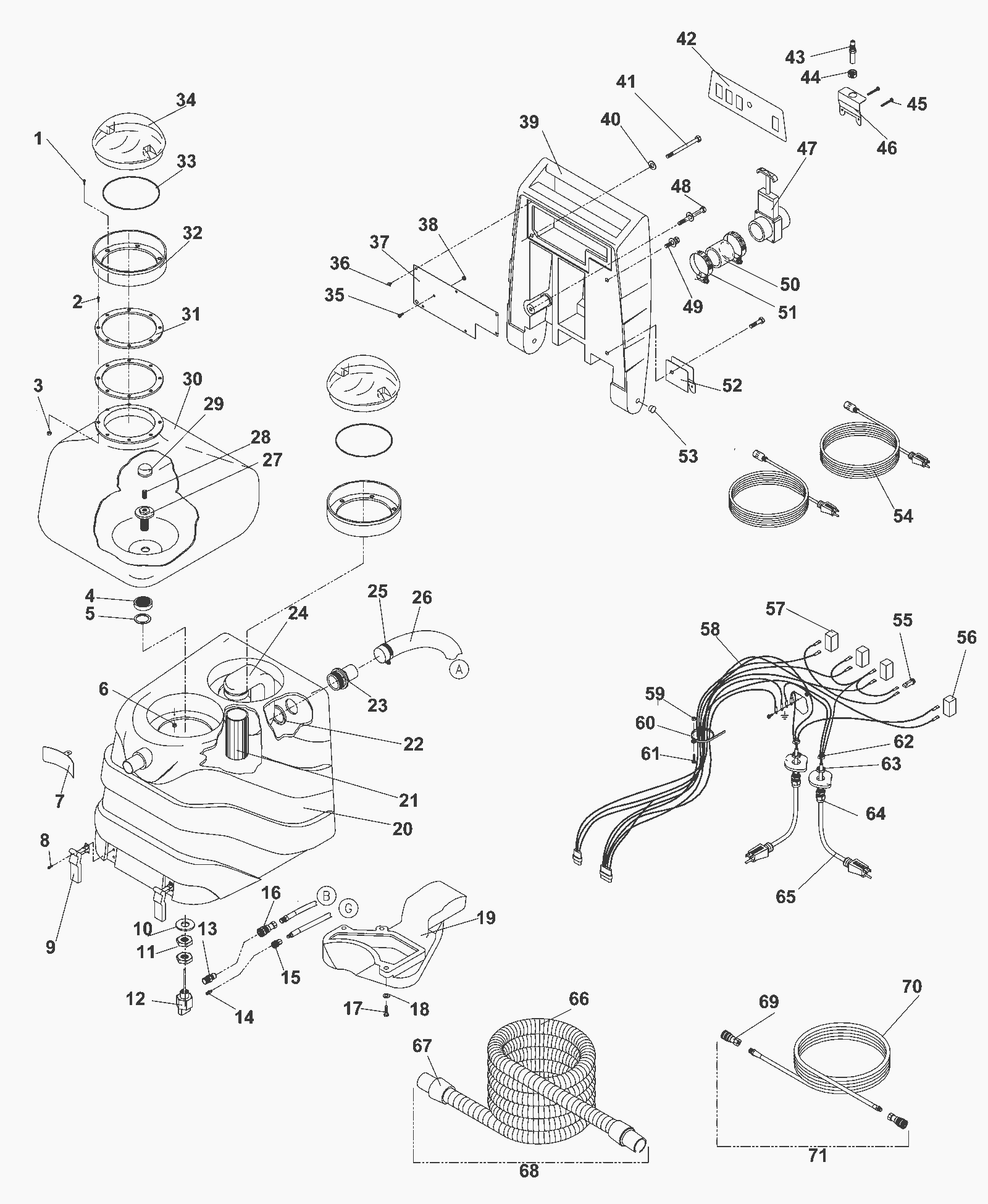

Tank Assembly

#PartDescription ReqNotesAvailability
1 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel 12
2 262-0152 Screw 8-32 8
3 999-1819 Nut 8-32 hex stainless steel 8
4 262-0369 Nut 1
5 262-0374 O-ring 1
6 262-0149 Nut 12
7 262-0217 Splash intake edge guard 1
8 262-0152 Screw 8-32 4
9 262-0019 Latch 2
10 262-0204 Washer 3/4 flat 1
11 262-0205 Nut 3/4-16 2
12 262-0378 Tee 1
13 262-0372 Plug 1
14 262-0370 Plug 1
15 262-0371 Cuff 1
16 262-0373 Cuff 1
17 262-0366 Screw 10-32 3
18 262-0057 Washer 3
19 262-0381 Air intake 1
20 262-0379 Tank 1
21 191-0290 Float cage 1
22 262-0367 O-ring 1
23 191-0292 1 1/2 inch hose barb 1
24 262-0376 Vacuum filter neck 1
25 262-0135 2 inch hose clamp 1
26 262-0297 Vacuum hose 1
27 262-0368 Screw 1
28 262-0012 1/4 inch nipple 1
29 191-0267 Filter 1
30 262-0382 Bladder bag 1
31 262-0375 Bladder ring 2
32 262-0194 Flange 2
33 191-0289 Recovery tank lid gasket 2
34 262-0029 Dome 2
35 262-0157 Bolt 1/4-20 x 6mm 1
36 262-0077 Screw 1
37 262-0294 Handle plate 1
38 262-0285 Nut 1
39 262-0380 Handle 1
40 262-0287 Washer 3
41 999-1566 Screw 3/8-16 x 4 3/4 hex head zinc plated 1
42 262-0377 Panel 1
43 262-0128 Nozzle 1
44 262-0130 Bushing holder 1
45 191-0276 Screw 1
46 262-0292 Bracket 1
47 262-0299 Dump valve 1
48 191-0278 Screw 1
49 191-0277 Screw 2
50 191-0279 Vinyl hose 1
51 262-0074 Clamp 2
52 262-0293 Dump valve bracket 1
53 262-0044 Drain plug 3
54 262-0042 25 foot power cord 1
55 262-0213 Green light 1
56 191-0201 DPDT 3-way switch 1
57 262-0005 2 lead switch 3
58 262-0383 Harness 1
59 262-0285 Nut 1
60 262-0290 Wire tie 1
61 262-0145 Screw 1
62 262-0163 Hose clamp 2
63 262-0179 Bushing 2
64 191-0285 Strain relief 2
65 262-0304 Pigtail 2
66 262-0253 25 foot vacuum hose (grey) 1
67 262-0242 Hose cuff 1
68 262-0298 Vacuum hose 1
69 262-0133 1/4 inch female quick connect 1
70 262-0307 Hose 1
71 262-0250 25 foot solution hose assembly 1
