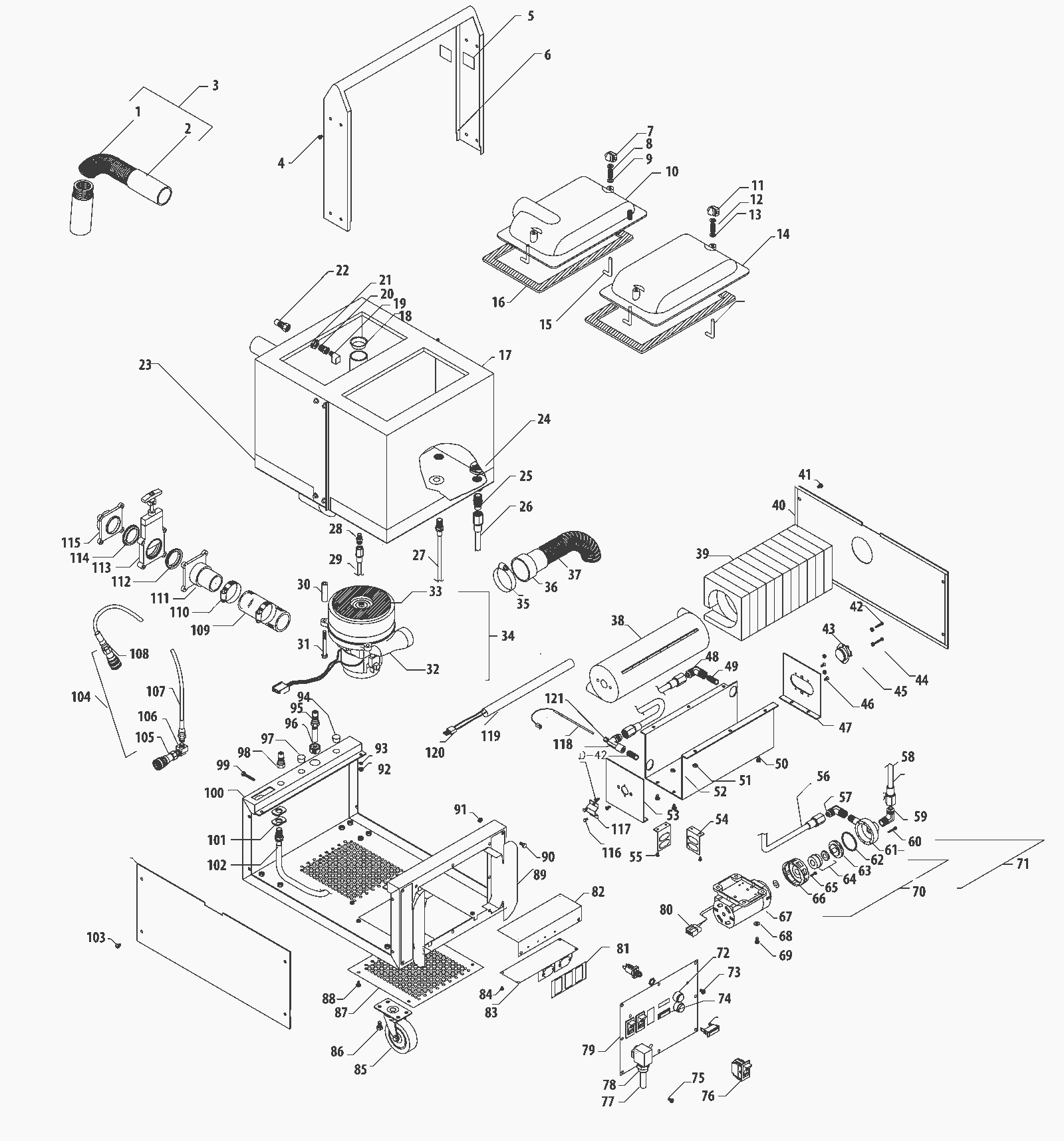

Entire Assembly

#PartDescription ReqNotesAvailability
1 262-0051 Hose 1
2 262-0052 Hose cuff 1
3 262-0034 Vacuum hose 1
4 262-0053 Screw 1
5 N/A Not available 1 (Decal)
6 262-0054 Handle 1
7 262-0055 Cap 1
8 262-0056 Spring 1
9 262-0057 Washer 1
10 262-0035 Recovery tank lid 1
14 262-0059 Cover 1
15 262-0060 Gasket 4
16 262-0036 Recovery lid gasket 1
17 262-0061 Tank 1
18 262-0040 Filter 1
19 262-0062 Fitting 1
20 262-0063 Hex fitting 1
21 262-0064 Nut 1
22 262-0013 Quick connect 1
23 262-0065 Tank trim (sold by the foot) 1
24 262-0114 Mesh filter 1
25 262-0066 Adapter 1
26 262-0067 Hose 1
27 262-0068 Hose 1
28 262-0069 Adapter (OBSOLETE) 1
29 262-0070 Hose 1
30 262-0071 Spacer 1
31 262-0072 Bolt 1
32 262-0073 Vacuum motor 1
33 175-0053 Gasket 1
34 262-0038 Vacuum motor 1
35 262-0074 Clamp 1
36 262-0075 Hose cuff 1
37 262-0037 Drain hose 1
38 262-0115 Heat exchanger 1
39 262-0116 Insulation 1
40 262-0076 Plate 1
41 262-0077 Screw 1
42 262-0078 Bolt 1
43 262-0142 Thermostat 1
44 262-0079 Nut 1
46 262-0080 Screw 1
47 262-0081 Bracket 1
48 262-0088 Elbow adapter 4
49 262-0118 1/4 inch nipple 1
50 262-0077 Screw 1
51 262-0083 Nut 1
52 262-0084 Holder 1
53 262-0085 Bracket 1
54 262-0119 Support 2
55 262-0086 Screw 2
56 262-0087 Hose 1
57 262-0088 Elbow adapter 1
58 262-0067 Hose 1
60 262-0089 Screw 1
61 262-0090 Cap 1
62 262-0091 O-ring 1
63 262-0120 Impeller kit 1
64 262-0121 Pump seal 1
65 262-0092 Screw 1
66 262-0122 Adapter kit 1
67 262-0123 120V motor with wire 1
68 262-0093 Washer 1
69 262-0120 Impeller kit 1
70 262-1085 120V pump 1
71 262-0633 Pump 1
72 262-0095 Button 1
73 262-0077 Screw 1
74 262-0097 Button 1
75 262-0077 Screw 4
76 262-0005 2 lead switch 1
77 262-0125 25 foot cord 1
78 262-0126 90 degree relief bushing 1
79 262-0098 Panel 1
80 262-0099 Plug 1
81 262-0127 Switch backer plate 1
82 262-0100 Bracket 1
83 262-0101 Plate 1
84 262-0102 Screw 1
85 262-0041 Caster 4
86 262-0104 Bolt 16
87 262-0105 Bottom grate 1
88 262-0077 Screw 1
89 262-0128 Nozzle 1
90 262-0083 Nut 1
93 262-0106 Nut 1
94 262-0044 Drain plug 1
95 262-0128 Nozzle 1
96 262-0130 Bushing holder 1
97 262-0044 Drain plug 1
98 262-0013 Quick connect 1
99 262-0108 Bolt 1
100 262-0131 Case 1
101 262-0109 Spacer 1
102 262-0110 Hose 1
103 262-0111 Plate 1
104 262-0132 15 foot hose 1
105 262-0133 1/4 inch female quick connect 1
106 262-0023 90 degree elbow 1
107 262-0134 Hose (sold by the foot) 1
109 262-0144 Hose 1
110 262-0135 2 inch hose clamp 1
111 262-0136 Dump valve adapter with nut 1
112 262-0137 Dump valve seal 1
113 262-0033 Dump valve 1
115 262-0138 Dump valve spigot 1
117 262-0113 Bracket 1
118 262-0139 20 inch thermosensor 1
119 N/A Not available 1 (240V heater)
120 262-0140 2amp connector 1
121 262-0141 Nut 1
