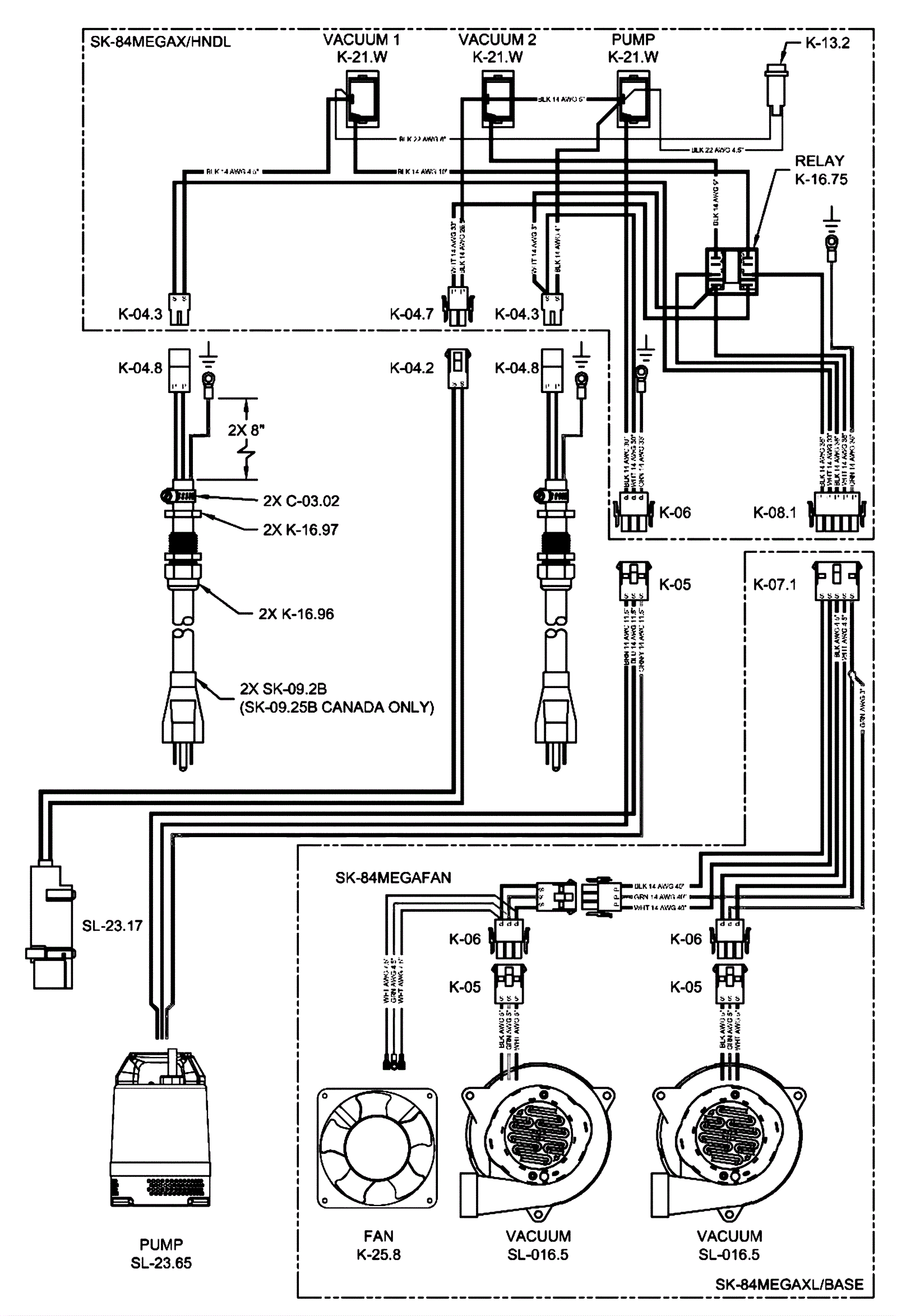

MEGA XL Electrical Diagram

#PartDescriptionPriceReqNotesAvailability
1 262-0163 Hose clamp $2.86 2 usually ships 15-19 days
2 262-0213 Green light $33.57 1 usually ships 15-19 days
3 262-0595 120V edge relay $169.40 1 usually ships 15-19 days
4 191-0285 Strain relief $8.39 2 usually ships 15-19 days
5 262-0179 Bushing $2.86 2 usually ships 15-19 days
6 262-0005 2 lead switch $49.71 3 usually ships 15-19 days
7 262-0604 25 foot cord with terminal $233.79 2 usually ships 15-19 days
8 262-0602 Base harness $21.51 1 usually ships 16-34 days
9 262-0603 Handle harness $39.34 1 usually ships 16-34 days
10 262-0592 Sub pump switch $344.74 1 usually ships 15-19 days
