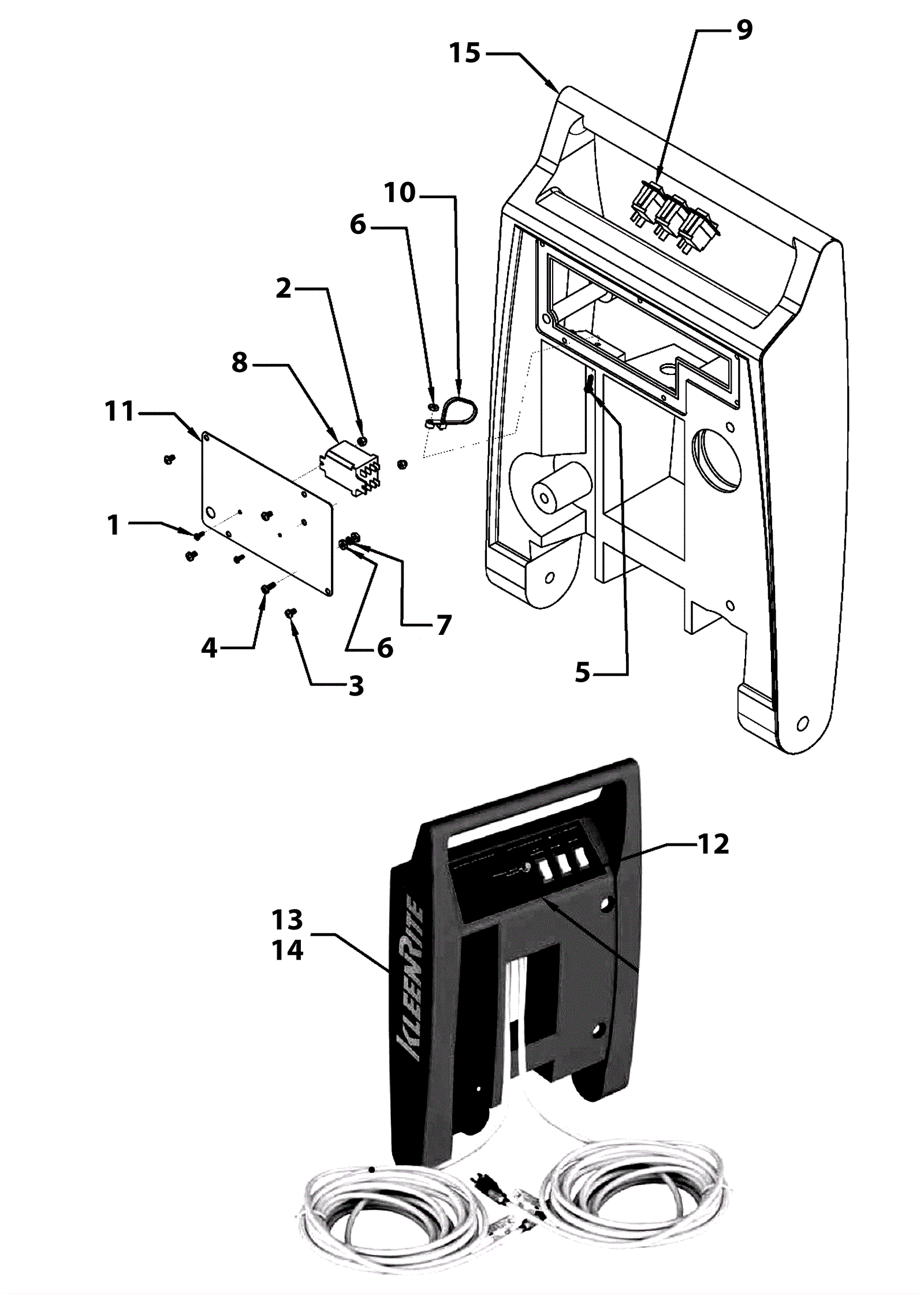

Handle Assembly

#PartDescription ReqNotesAvailability
1 262-0202 Screw 6-32 x 3/8 phillips 2
2 262-0283 Nut 2
3 262-0077 Screw 4
4 262-0284 Screw 10-32 1
5 262-0145 Screw 1
6 262-0285 Nut 1
7 262-0106 Nut 1
8 262-0595 120V edge relay 1
9 262-0005 2 lead switch 3
10 262-0290 Wire tie 1
11 262-0596 Switch cover plate handle 1
12 262-0597 Switch edge panel 1
13 262-0599 Right hand handle decal 1
14 262-0599 Right hand handle decal 1
15 262-0600 Handle (solid gray) 1
