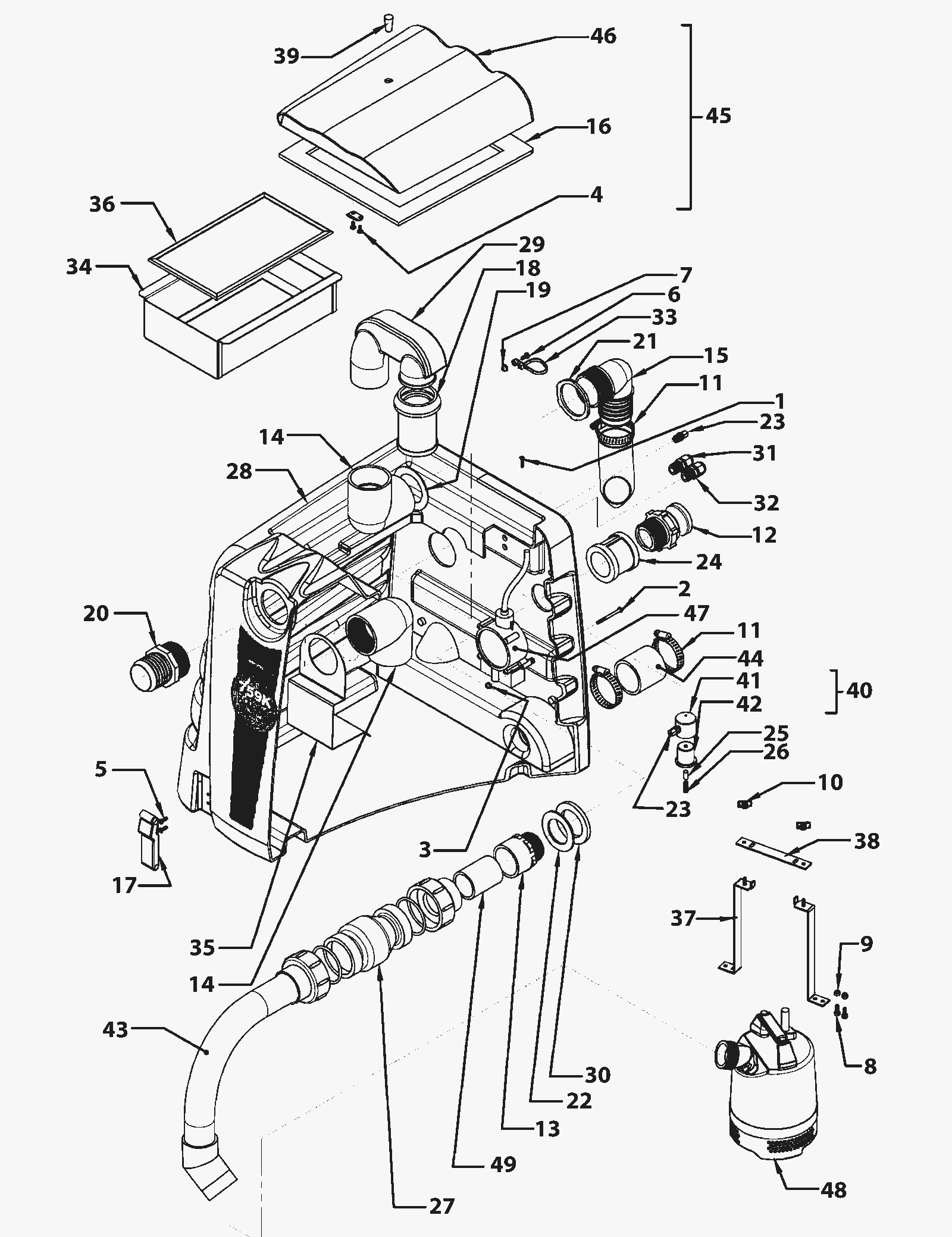

Tank Assembly

#PartDescription ReqNotesAvailability
1 262-0150 Screw 6-3 x 3/4 1
2 999-6742 Screw 6-32 x 1 1/4 pan head phillips stainless steel 2
3 262-0283 Nut 2
4 262-0309 Screw 2
5 262-0152 Screw 8-32 4
6 262-0094 Screw 2
7 262-0149 Nut 2
8 999-6743 Screw 1/4-20 x 3/4 socket cap hex head stainless steel 4
9 999-0441 Nut 1/4-20 nylon lock jam zinc plated 4
10 999-0603 Nut 1/4-20 wing stainless steel 2
11 262-0074 Clamp 3
12 262-0561 1 1/2 inch male hose coupler 1
13 262-0562 Coupling 1 1/2 female slip x 1 1/2 male 2
14 262-0563 90 degree elbow 2 slp x 2 fpt pvc short 2
15 262-0564 90 degree elbow 2 insert x 2 mpt pvc 1
16 262-0565 Vacuum lid gasket 1
17 262-0019 Latch 1
18 262-0566 Vacuum shut off float 1
19 262-0567 Rubber gasket 1
20 262-0568 Hose barb 2 mpt x 2 barb 1
21 262-0569 Locknut 1
22 262-0289 Washer 1
23 262-0570 Coupling 1/8 npt x 1/8 comp 2
24 262-0571 1 1/2 inch galvanized coupling 1
25 262-0572 Inline mesh screen 1
26 262-0573 Inline filter body stainless steel 1
27 262-0574 Check valve pvc (clear) 1
28 262-0575 Tank (gray) 1
29 262-0576 Vacuum filter neck 1
30 262-0577 Spacer 1
31 262-0578 3/8 inch NPT relief bushing 1
32 191-0285 Strain relief 1
33 262-0290 Wire tie 1
34 262-0579 Lint tray complete 1
35 262-0580 Lint hanger tray 1
36 262-0581 Screen complete 1
37 262-0582 Pump mount bracket 2
38 262-0583 Top pump bracket 1
39 262-0585 Rubber lanyard plug 1
40 262-0586 Cap with fitting 1 (includes 41,42)
41 262-0587 PVC cap with hole 1
42 262-0588 Plug 3/4 x 1/2 inch male slip with flag tap 1
43 262-0589 1 1/2 inch flex pvc (OBSOLETE) 1
44 191-0279 Vinyl hose 1
45 262-0590 Vacuum lid with gasket 1 (includes 4,16, and 41)
46 262-0591 Vacuum lid 1
47 262-0592 Sub pump switch 1
48 262-0593 110V Sub pump 1
49 262-0594 PVC tube 1 1/2 x 2 1/2 inch 1
50 262-0584 Servpro decal 1
