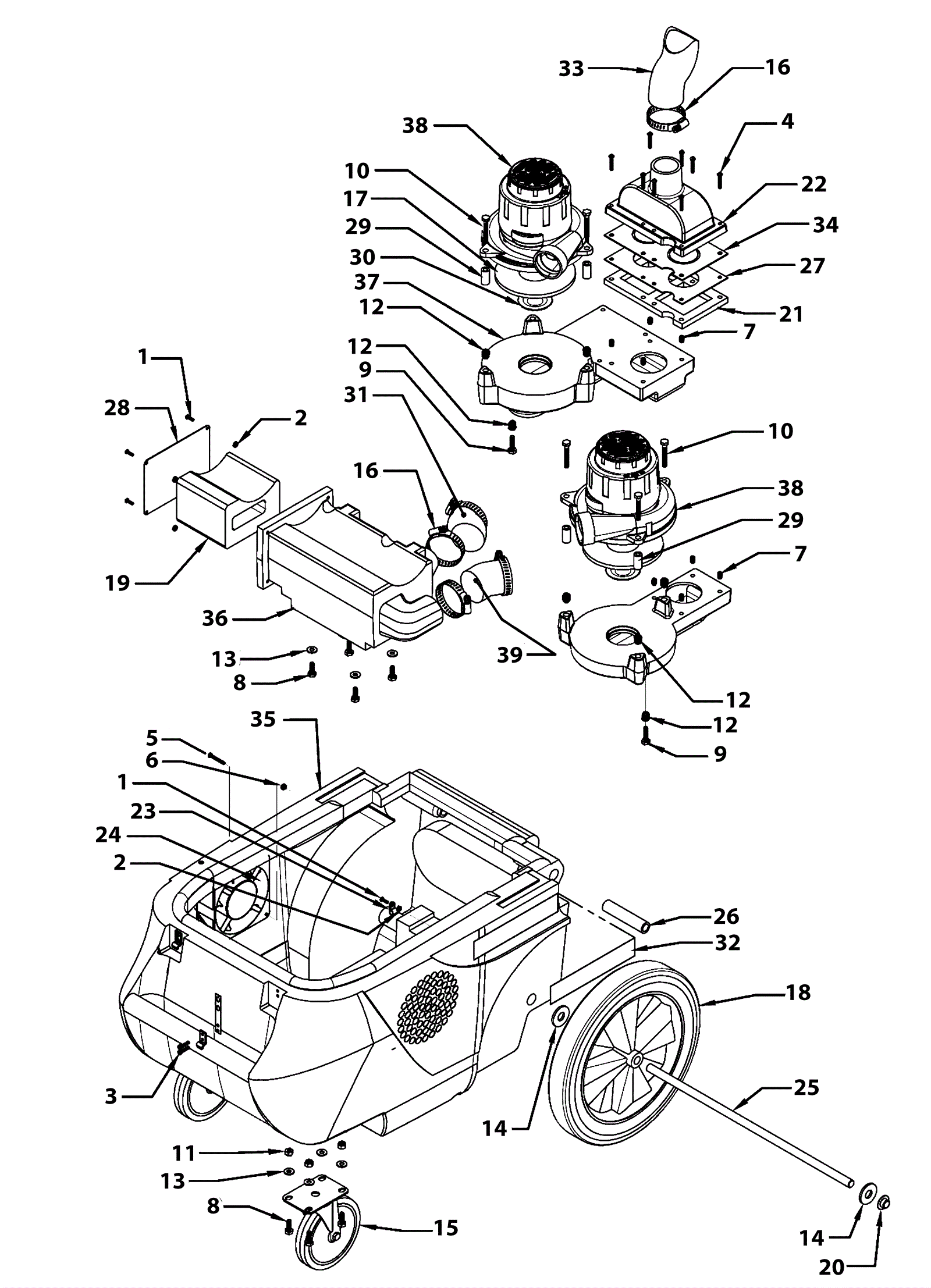

Base Assembly

#PartDescription ReqNotesAvailability
1 262-0078 Bolt 4
2 262-0151 Nut 4
3 262-0153 Screw 8-32 x 3/4 4
4 999-1574 Screw 8-32 x 1 pan head phillips stainless steel 8
5 999-0827 Screw 8-32 x 1 pan head phillips zinc plated 2
6 262-0310 Nut 2
7 262-0542 8-32 threaded insert hex drive 4
8 262-0147 Screw 12
9 262-0366 Screw 10-32 2
10 999-6741 Screw 1/4-20 x 1 3/4 button head socket cap stainless steel 6
11 999-0441 Nut 1/4-20 nylon lock jam zinc plated 8
12 262-0543 1/4-20 hex drive threaded insert 4
13 262-0057 Washer 12
14 262-0314 Washer 4
15 262-0544 5 inch swivel caster 2
16 262-0074 Clamp 5
17 175-0053 Gasket 2
18 262-0432 Wheel 2
19 262-0317 Foam muffer (2 piece style) 1
20 262-0318 Push nut fastner 2
21 262-0545 Vacuum shut off dual 2 foam valve 1
22 262-0546 Blower intake manifold 1
23 262-0325 Cable clamp 4
24 262-0547 120V cooling ac axial fan 1
25 262-0548 1/2 inch axle rod for 17.75 inch wheel 1
26 262-0329 Pivot 2
27 262-0549 Vacuum mounting plate 1
28 262-0550 Muffler/heater mount cover plate 1
29 262-0551 Stand off 6
30 262-0553 Blower guard screen 2
31 262-0554 Flex hose 1
32 262-0552 Servpro megax #759 decal 2
33 262-0555 Wire support hose 2 inch x 34 foot (clear) 1
34 262-0556 Dual flpr modi valve 1
35 262-0540 Drilled base for 12 inch wheel (black) 1
36 262-0557 Muffler and heater mount (black) 1
37 262-0558 L shaped vacuum mount with inserts 1
38 262-0559 120 2 stage blower with plug 2
39 262-0339 Flex hose 1
