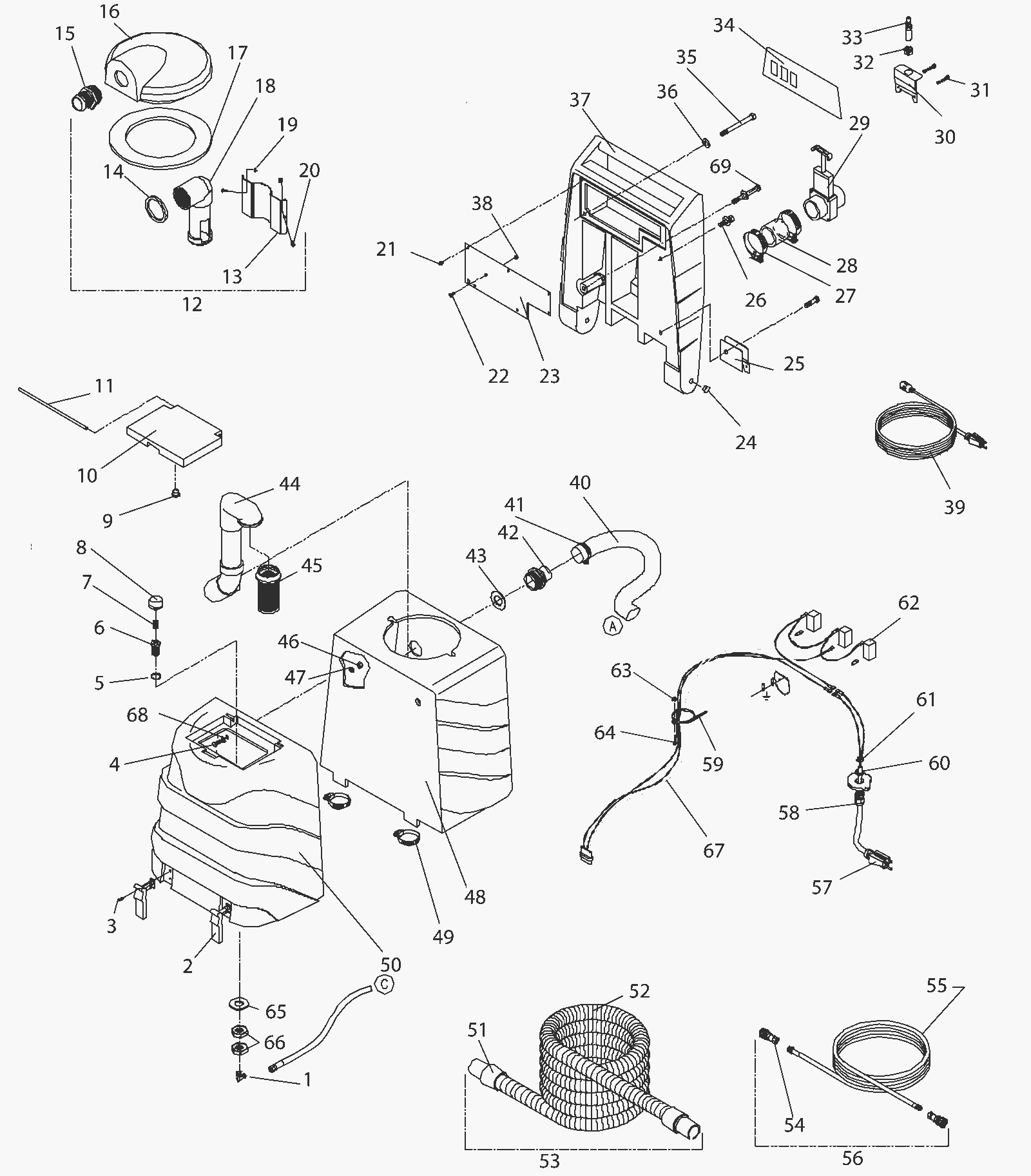

Tank Assembly - Not Heated

#PartDescription ReqNotesAvailability
1 262-0613 Straight elbow 1
2 262-0019 Latch 2
3 262-0152 Screw 8-32 4
4 262-0286 Screw 2
5 262-0374 O-ring 1
6 262-0171 Bulk head 1
7 262-0012 1/4 inch nipple 1
8 191-0267 Filter 1
9 262-0044 Drain plug 3
11 262-0010 Hinge 1
12 262-0303 Lid assembly (gray) 1
13 262-0291 Splash guard 1
14 262-0306 Spacer 1
15 262-0169 Hose barb 1
16 262-0303 Lid assembly (gray) 1
17 191-0166 Gasket 1
18 262-0296 Elbow 1
19 262-0283 Nut 2
20 262-0202 Screw 6-32 x 3/8 phillips 2
21 262-0077 Screw 6
22 262-0284 Screw 10-32 1
23 262-0294 Handle plate 1
24 262-0044 Drain plug
25 262-0293 Dump valve bracket 1
26 191-0277 Screw 2
27 262-0074 Clamp 2
28 191-0279 Vinyl hose 1
29 262-0299 Dump valve 1
30 262-0292 Bracket 1
31 191-0276 Screw 2
32 262-0130 Bushing holder 1
33 262-0128 Nozzle 1
34 262-0295 Panel 1
35 999-1566 Screw 3/8-16 x 4 3/4 hex head zinc plated 1
36 262-0287 Washer 3
37 262-0363 Switch handle 1
38 262-0285 Nut 2
39 262-0042 25 foot power cord 1
40 262-0362 Harness 1
41 262-0135 2 inch hose clamp 1
42 191-0292 1 1/2 inch hose barb 1
43 262-0289 Washer 1
44 191-0287 Vacuum hose 1
45 191-0290 Float cage 1
46 262-0159 Nut 1/4-20 stainless steel 2
47 262-0160 Washer 1/4 4
49 262-0288 Hose clamp 2
50 262-0300 Solution tank 1
51 262-0242 Hose cuff 2
52 262-0253 25 foot vacuum hose (grey) 1
53 262-0298 Vacuum hose 1
54 262-0133 1/4 inch female quick connect 2
55 262-0307 Hose 1
56 262-0250 25 foot solution hose assembly 1
57 262-0304 Pigtail 1
58 191-0285 Strain relief 2
59 262-0290 Wire tie 1
60 262-0179 Bushing 2
61 262-0163 Hose clamp 2
62 262-0005 2 lead switch 3
64 262-0145 Screw 1
65 262-0204 Washer 3/4 flat 1
66 262-0205 Nut 3/4-16 2
67 262-0362 Harness 1
68 262-0160 Washer 1/4 1
69 191-0278 Screw 1
