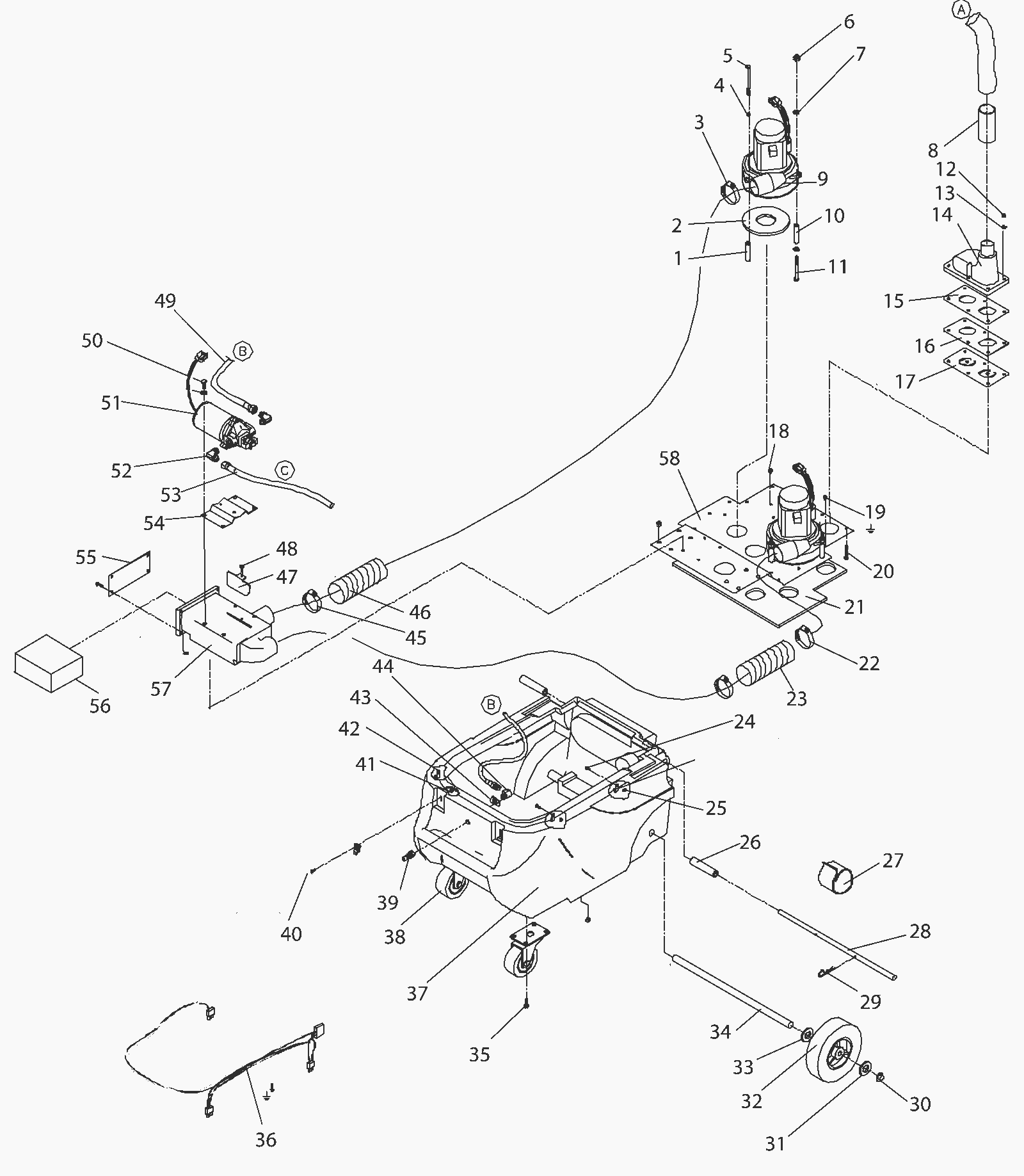

Base Assembly - Not Heated

#PartDescription ReqNotesAvailability
1 262-0334 Stand off
2 175-0053 Gasket
3 262-0074 Clamp
4 262-0313 Washer
5 262-0312 Screw
6 999-0441 Nut 1/4-20 nylon lock jam zinc plated
7 262-0057 Washer
8 262-0052 Hose cuff
9 262-0073 Vacuum motor
10 262-0334 Stand off
11 262-0348 Screw
12 262-0285 Nut
13 262-0093 Washer
14 262-0343 Vacuum manifold
15 262-0323 Vacuum shut off valve
16 262-0332 Flapper valve plate
17 262-0340 Valve
18 262-0145 Screw
19 262-0077 Screw
20 191-0276 Screw
21 262-0316 Gasket
22 262-0074 Clamp
23 262-0339 Flex hose
24 262-0078 Bolt
25 262-0151 Nut
26 262-0329 Pivot
27 262-0349 Velcro
28 262-0355 Axle
29 262-0315 Cotter pin
30 262-0318 Push nut fastner
31 262-0314 Washer
32 262-0028 Wheel
33 262-0314 Washer
34 262-0327 Axle
35 262-0147 Screw
36 262-0359 Base
37 262-0342 Base
38 262-0020 Caster wheel
39 262-0013 Quick connect
40 262-0153 Screw 8-32 x 3/4
41 262-0310 Nut
42 262-0325 Cable clamp
43 262-0109 Spacer
44 262-0023 90 degree elbow
45 262-0074 Clamp
46 262-0338 Flex hose
47 262-0356 Manifold bracket
48 262-0311 Screw
49 262-0357 Solution hose
50 262-0104 Bolt
51 209-0006 100psi pump
52 262-0117 90 degree elbow
53 262-0358 Hose
54 262-0326 Pump mount plate
55 262-0333 Muffler mount cover plate
56 262-0317 Foam muffer (2 piece style)
57 262-0324 Pump mount
58 262-0328 Plate
