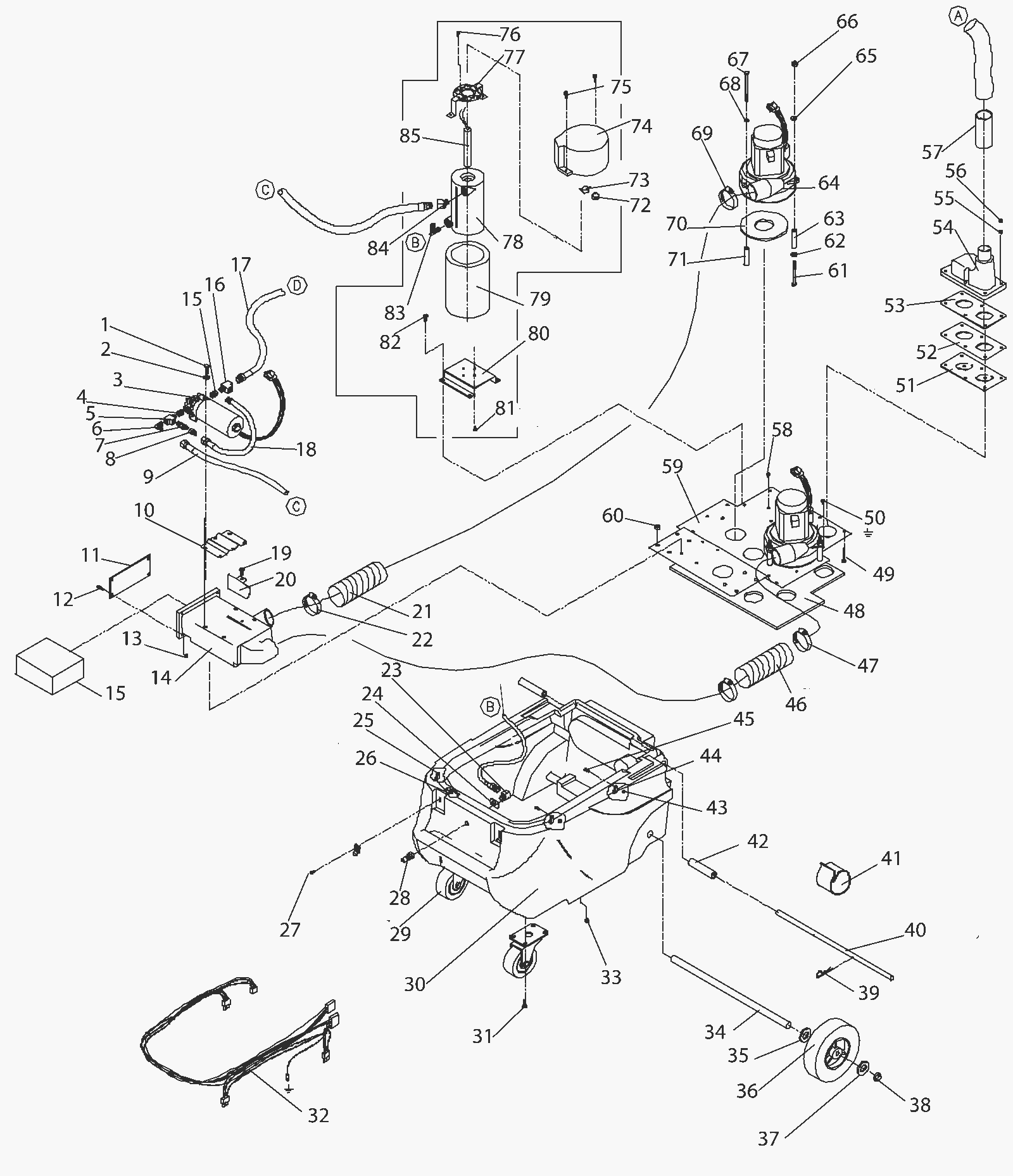

Base Assembly - Heated

#PartDescription ReqNotesAvailability
1 262-0104 Bolt 4
2 262-0057 Washer 14
3 209-0006 100psi pump 1
4 262-0347 Bushing 2
5 262-0321 Tee 2
6 262-0613 Straight elbow 1
7 262-0322 Pressure relief valve 1
8 262-0319 Bolt 1
9 262-0336 Solution hose 1
10 262-0326 Pump mount plate 1
11 262-0333 Muffler mount cover plate 1
12 262-0078 Bolt 8
13 262-0151 Nut 4
14 262-0324 Pump mount 1
17 262-0337 Hose 1
18 262-0335 Hose (blue) 1
19 262-0311 Screw 1
21 262-0338 Flex hose 1
22 262-0074 Clamp 4
23 262-0023 90 degree elbow 1
24 262-0109 Spacer 1
25 262-0325 Cable clamp 2
26 262-0310 Nut 4
27 262-0153 Screw 8-32 x 3/4 4
28 262-0013 Quick connect 1
29 262-0020 Caster wheel 2
30 262-0342 Base 1
31 262-0147 Screw 8
32a 262-0345 Base harness 1
32b 262-0344 Heater harness 1
33 262-0285 Nut 9
34 262-0327 Axle 1
35 262-0314 Washer 4
36 262-0028 Wheel 2
38 262-0318 Push nut fastner 2
39 262-0315 Cotter pin 2
41 262-0349 Velcro 2
42 262-0329 Pivot 2
43 262-0151 Nut 4
44 262-0180 P clamp 2
45 262-0078 Bolt 8
46 262-0339 Flex hose 1
48 262-0316 Gasket 1
49 191-0276 Screw 2
50 262-0077 Screw 5
51 262-0340 Valve 1
52 262-0332 Flapper valve plate 1
53 262-0323 Vacuum shut off valve 1
54 262-0343 Vacuum manifold 1
55 262-0093 Washer 6
57 262-0052 Hose cuff 1
58 262-0145 Screw 3
59 262-0328 Plate 1
60 999-0441 Nut 1/4-20 nylon lock jam zinc plated 5
61 262-0348 Screw 5
63 262-0334 Stand off 6
64 262-0073 Vacuum motor 2
67 262-0312 Screw 1
68 262-0313 Washer 1
70 175-0053 Gasket 2
72 262-0214 190 SPST thermostat 1
74 262-0270 Heater cover 1
75 262-0094 Screw 2
76 262-0202 Screw 6-32 x 3/8 phillips 4
77 262-0331 Plate 1
78 262-0341 Casting exchange 1
79 191-0264 Heater insulation 1
80 262-0330 Heater mount plate 1
81 262-0309 Screw 4
83 262-0614 Elbow fitting 1
84 262-0011 45 degree elbow 1
85 262-0228 120V heater 1
86 262-0317 Foam muffer (2 piece style) 1
