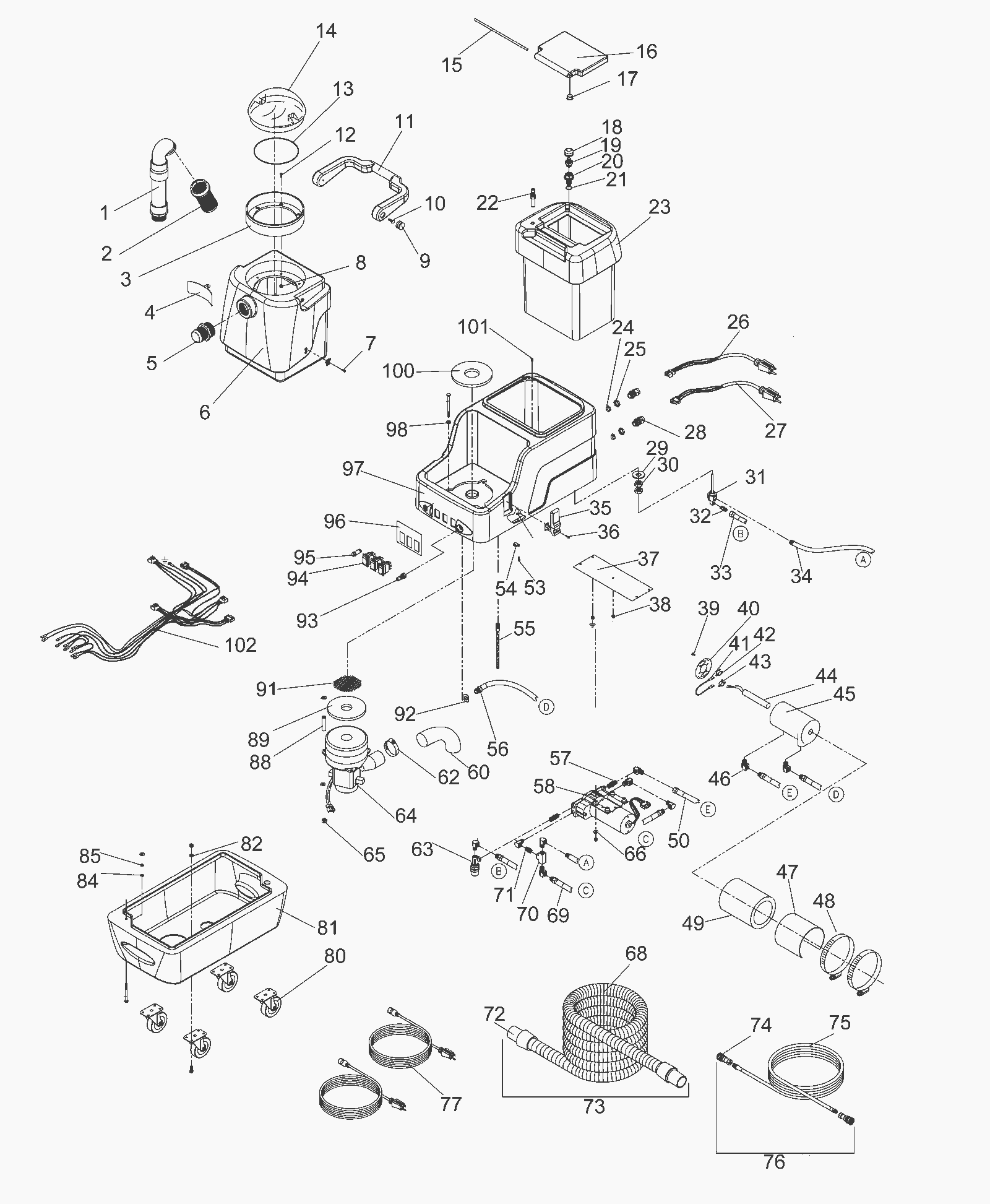

Entire Assembly - Between 2004-2005

#PartDescription ReqNotesAvailability
1 262-0197 Vacuum filter assembly (OBSOLETE) 1
2 191-0290 Float cage 1
3 262-0194 Flange 1
4 262-0217 Splash intake edge guard 1
5 262-0169 Hose barb 1
6 262-0176 Recovery tank 1
7 262-0153 Screw 8-32 x 3/4 4
8 262-0149 Nut 6
9 262-0148 Plug 2
10 262-0147 Screw 18
11 262-0146 Handle 1
12 262-0145 Screw 6
13 191-0289 Recovery tank lid gasket 1
14 262-0029 Dome 1
15 262-0010 Hinge 1
17 262-0044 Drain plug 1
18 262-0114 Mesh filter 1
19 262-0208 Adapter 1
20 262-0207 Bolt 3/4-16 1
21 262-0374 O-ring 1
22 262-0128 Nozzle 1
23 262-0212 Solution tank 1
24 262-0163 Hose clamp 2
25 262-0179 Bushing 2
26 262-0226 Pigtail auxiliary cord 1
27 262-0227 Main pigtail cord 1
28 191-0285 Strain relief 2
29 262-0204 Washer 3/4 flat 1
30 262-0205 Nut 3/4-16 2
31 262-0364 Tee (OBSOLETE)
32 262-0069 Adapter (OBSOLETE) 1
33 262-0047 12 inch solution hose 1
34 262-0365 16 inch hose
35 262-0019 Latch 2
36 262-0152 Screw 8-32 4
37 262-0218 Pump mounting plate 1
38 999-0086 Nut 10-32 nylon insert lock zinc plated 10
39 262-0202 Screw 6-32 x 3/8 phillips 4
40 262-0219 Plate 1
41 262-0230 Wire (black) 1
42 262-0215 230 SPST thermostat 1
43 262-0214 190 SPST thermostat 1
44 262-0228 120V heater 1
45 262-0224 Exchange 1
46 262-0023 90 degree elbow 9
47 262-0216 Heater exchange cover 1
48 262-0206 Hose clamp 2
49 191-0264 Heater insulation 1
50 262-0616 1/4 inch pulse hose 1
53 262-0150 Screw 6-3 x 3/4 3
54 262-0180 P clamp 3
55 262-0188 Hose 1
56 262-0221 Hose 1
57 262-0209 Nipple 2
58 262-0200 Pump (OBSOLETE) 1
60 262-0223 Flex hose 1
62 262-0074 Clamp 1
63 262-0026 Pressure relief valve 1
64 262-0045 Vacuum motor 1
65 999-0441 Nut 1/4-20 nylon lock jam zinc plated 19
66 262-0185 Washer 4
68 262-0051 Hose 1
69 262-0222 Hose (red) 1
70 262-0210 Tee 1
71 262-0012 1/4 inch nipple 1
72 262-0052 Hose cuff 2
73 262-0034 Vacuum hose 1
74 262-0133 1/4 inch female quick connect 2
75 262-0191 Hose 1
76 262-0190 Hose 1
77 191-0284 Pigtail cord 2
80 262-0041 Caster 4
81 262-0195 Base 1
82 262-0057 Washer 27
84 262-0170 Self locking retainer 2
85 999-0190 Nut 1/4-20 hex plain finish 2
88 262-0183 Stand-off 3
89 175-0053 Gasket 1
91 262-0187 Blower guard screen 1
92 262-0109 Spacer 1
93 262-0013 Quick connect 1
94 262-0005 2 lead switch 3
95 262-0213 Green light 1
96 262-0220 Panel 1
97 262-0225 Case 1
98 999-0864 Screw 1/4-20 x 4 1/2 hex head plain finish 3
100 262-0166 Blower gasket 1
101 999-1509 Screw 10-32 x 3/8 flat head phillips stainless steel 5
102 262-0229 Harness 1
