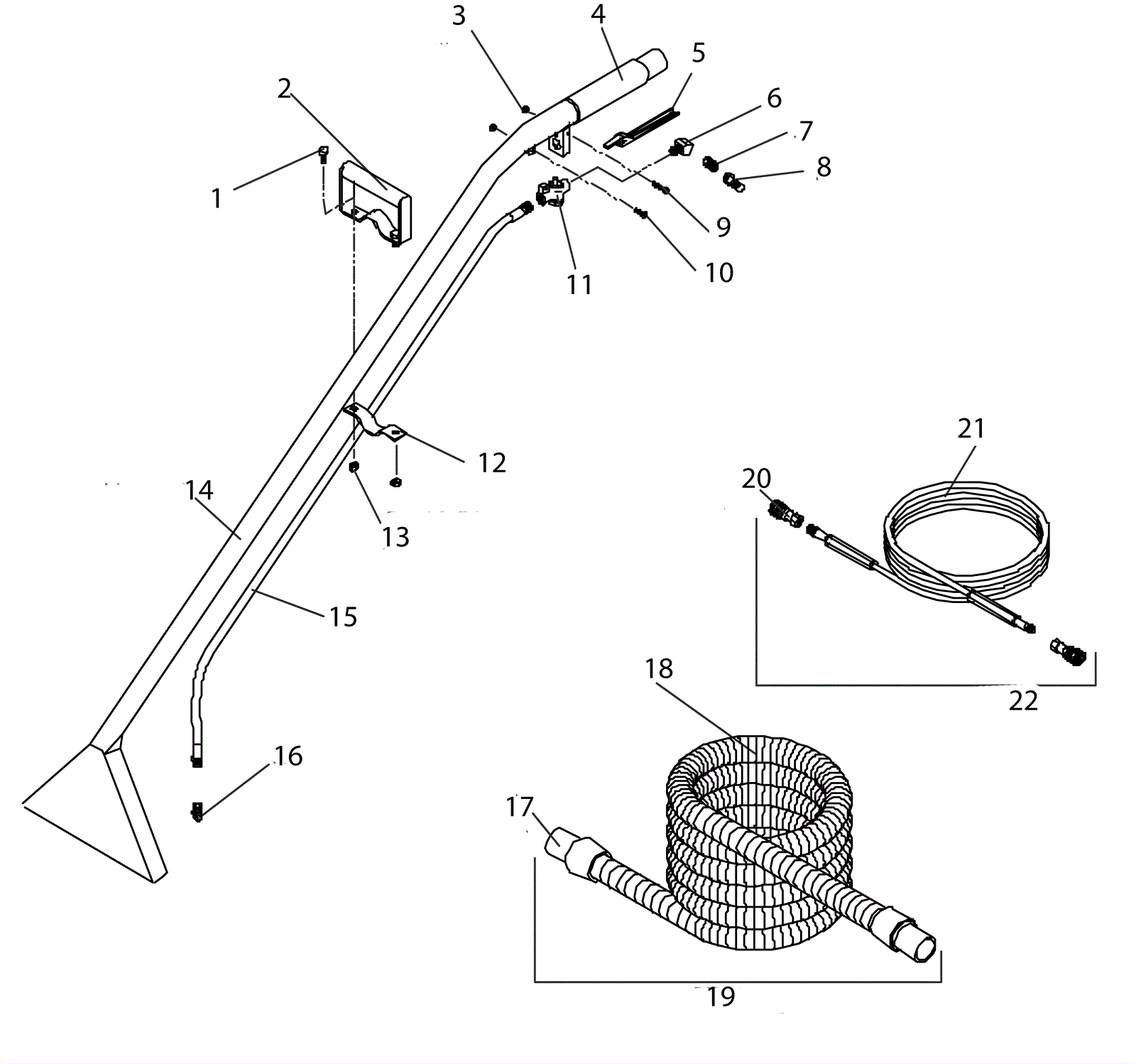

Floor Tool

#PartDescription ReqNotesAvailability
1 262-0239 Bolt 5/16-18 x 3/4 hex 2
2 262-0245 Handle 1
3 999-0086 Nut 10-32 nylon insert lock zinc plated 2
4 262-0241 Floor tool grip 1
5 262-0015 Valve trigger 1
6 262-0011 45 degree elbow 1
7 262-0012 1/4 inch nipple 1
8 262-0013 Quick connect 1
9 262-0238 Screw 10-32 x 1 3/8 1
10 262-0237 Screw 10-32 x 3/4 1
11 262-0243 Valve 1
12 262-0246 U clamp 1
13 262-0240 Nut 5/16-18 2
14 262-0247 Floor tool wand 1
15 262-0251 4 foot solution hose 1
16 262-0244 Jet 1
17 262-0242 Hose cuff 2
18 262-0253 25 foot vacuum hose (grey) 1
19 262-0252 25 foot vacuum hose with cuffs 1
20 262-0133 1/4 inch female quick connect 2
21 262-0249 25 foot solution hose 1
22 262-0250 25 foot solution hose assembly 1
