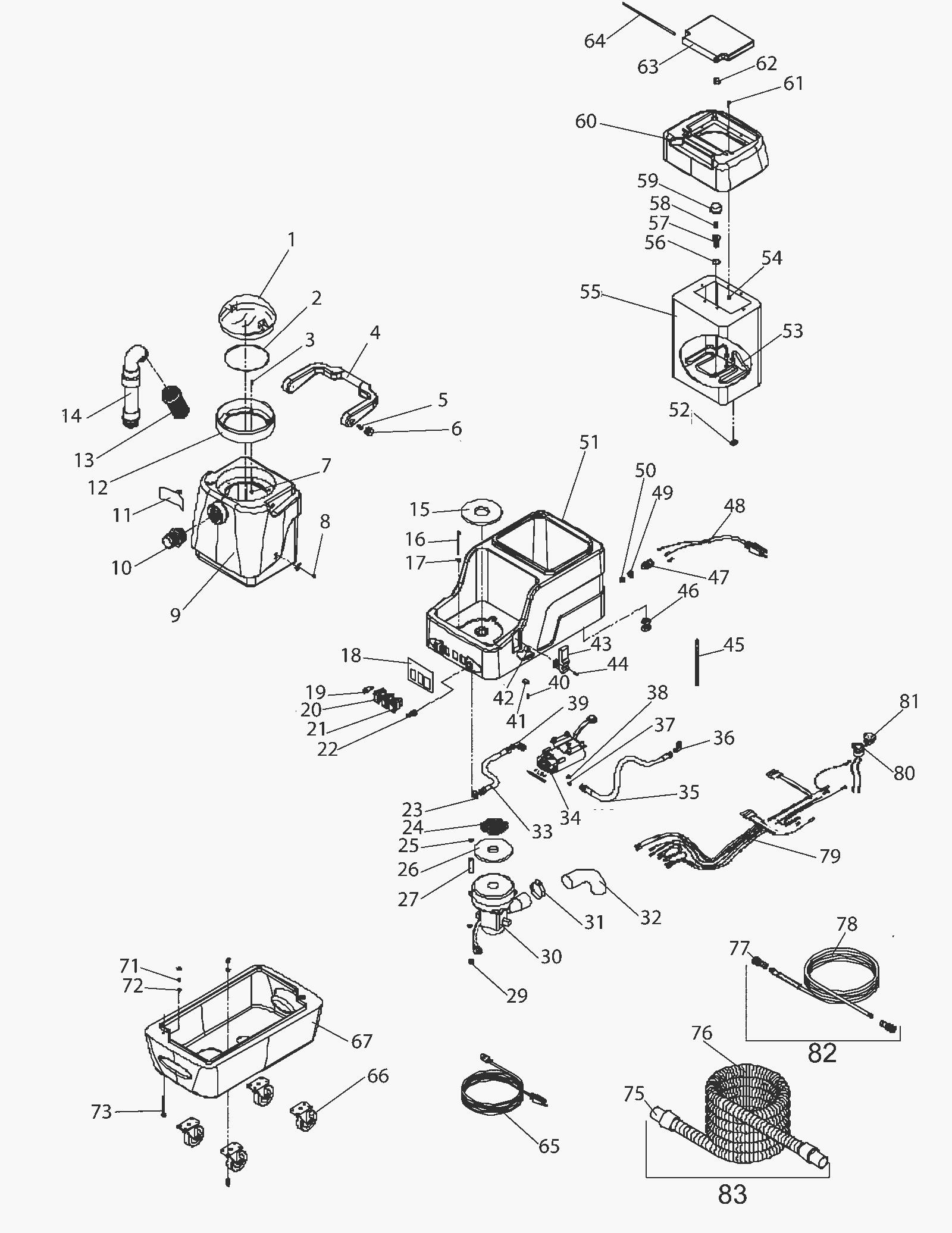

Entire Assembly - After 2000

#PartDescription ReqNotesAvailability
1 262-0029 Dome 1
2 191-0289 Recovery tank lid gasket 1
3 262-0145 Screw 6
4 262-0146 Handle 1
5 262-0147 Screw 18
6 262-0148 Plug 2
7 262-0149 Nut 6
8 262-0153 Screw 8-32 x 3/4 4
9 262-0176 Recovery tank 1
10 262-0169 Hose barb 1
11 262-0217 Splash intake edge guard 1
12 262-0194 Flange 1
13 191-0290 Float cage 1
14 262-0197 Vacuum filter assembly (OBSOLETE) 1
15 262-0166 Blower gasket 1
16 999-0864 Screw 1/4-20 x 4 1/2 hex head plain finish 2
17 262-0057 Washer 24
18 262-0186 Panel 1
19 191-0286 Switch 1
20 262-0005 2 lead switch 2
21 191-0201 DPDT 3-way switch 1
22 262-0013 Quick connect 1
23 262-0109 Spacer 1
24 262-0187 Blower guard screen 1
25 262-0160 Washer 1/4 1
26 175-0053 Gasket 1
27 262-0183 Stand-off 3
29 999-0441 Nut 1/4-20 nylon lock jam zinc plated 19
30 262-0045 Vacuum motor 1
31 262-0074 Clamp 1
32 262-0043 Flexable hose 2 inch x 10 inch 1
33 262-0192 19 inch hose 1
34 209-0006 100psi pump 1
35 262-0189 12 inch hose 1
36 262-0613 Straight elbow 1
37 999-0086 Nut 10-32 nylon insert lock zinc plated 5
38 262-0185 Washer 8
39 262-0117 90 degree elbow 1
40 262-0150 Screw 6-3 x 3/4 3
41 262-0180 P clamp 3
42 262-0151 Nut 3
43 262-0019 Latch 2
44 262-0152 Screw 8-32 4
45 262-0188 Hose 1
46 262-0162 Nut 1/4 1
47 262-0126 90 degree relief bushing 1
48 191-0283 Power cord 1
49 262-0179 Bushing 1
50 262-0163 Hose clamp 1
51 262-0196 Case 1
52 262-0161 Nut 1/2-20 hex 1
53 262-0178 Heater 1
54 262-0159 Nut 1/4-20 stainless steel 3
56 262-0374 O-ring 1
57 262-0171 Bulk head 1
58 262-0012 1/4 inch nipple 2
59 191-0267 Filter 1
60 262-0175 Solution tank 1
61 262-0155 Screw 1/4-20 x 3/4 3
62 262-0044 Drain plug 1
64 262-0010 Hinge 1
65 191-0284 Pigtail cord 1
66 262-0041 Caster 1
67 262-0195 Base 1
71 999-0190 Nut 1/4-20 hex plain finish 19
72 262-0170 Self locking retainer 2
73 262-0157 Bolt 1/4-20 x 6mm 2
75 262-0052 Hose cuff 1
76 262-0051 Hose 1
77 262-0133 1/4 inch female quick connect 2
78 262-0191 Hose 1
79 262-0198 Harness 1
80 262-0199 Thermostat switch 1
81 262-0182 Thermostat 1
82 262-0190 Hose 1
83 262-0034 Vacuum hose 1
