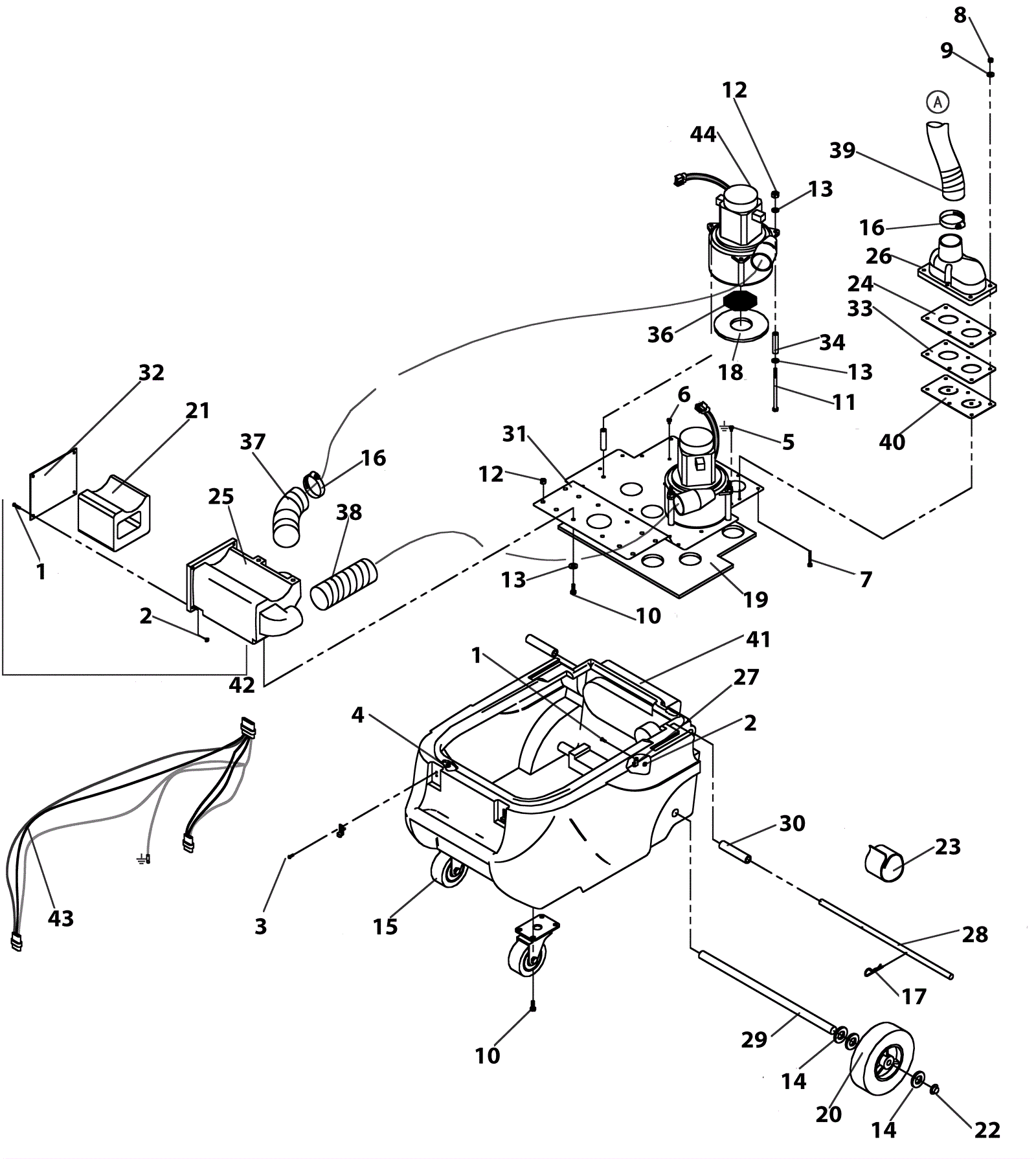

MEGA 3 Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 262-0078 Bolt $0.99 5 usually ships 3-14 days
2 262-0151 Nut $0.99 5 usually ships 3-14 days
3 262-0153 Screw 8-32 x 3/4 $1.12 4 usually ships 3-14 days
4 262-0310 Nut $0.99 4 usually ships 3-14 days
5 262-0077 Screw $1.10 1 usually ships 3-14 days
6 262-0145 Screw $0.99 1 usually ships 3-14 days
7 191-0276 Screw $1.58 2 usually ships 3-14 days
8 262-0285 Nut $0.99 6 usually ships 3-14 days
9 262-0093 Washer $0.99 6 usually ships 3-14 days
10 262-0147 Screw $0.99 12 usually ships 3-14 days
11 999-0864 Screw 1/4-20 x 4 1/2 hex head plain finish $0.99 6 ships same day
12 999-0441 Nut 1/4-20 nylon lock jam zinc plated $0.99 14 ships same day
13 262-0057 Washer $0.99 16 usually ships 3-14 days
14 262-0314 Washer $0.99 6 usually ships 3-14 days
15 262-0020 Caster wheel $88.48 2 usually ships 3-14 days
16 262-0074 Clamp $7.79 5 usually ships 3-14 days
17 262-0315 Cotter pin $0.99 2 usually ships 3-14 days
18 175-0053 Gasket $8.14 2 ships same day
19 262-0316 Gasket $24.77 1 usually ships 3-14 days
20 262-0028 Wheel $58.89 2 usually ships 3-14 days
21 262-0317 Foam muffler $27.08 1 usually ships 3-14 days
22 262-0318 Push nut fastner $3.85 2 usually ships 3-14 days
23 262-0349 Velcro $3.34 1 usually ships 3-14 days
24 262-0323 Vacuum shut off valve $16.73 1 usually ships 3-14 days
25 262-0324 Pump mount $203.98 1 usually ships 3-14 days
26 262-1077 Blower intake manifold Call for price 1 usually ships 3-14 days
27 262-0325 Cable clamp $0.99 1 usually ships 3-14 days
28 262-0355 Axle $32.75 1 usually ships 3-14 days
29 262-0327 Axle $36.76 1 usually ships 3-14 days
30 262-0329 Pivot $19.12 2 usually ships 3-14 days
31 262-0328 Plate Call for price 1 usually ships 3-14 days
32 262-1078 Muffler end plate Call for price 1 usually ships 3-14 days
33 262-0332 Flapper valve plate $19.90 1 usually ships 3-14 days
34 262-0183 Stand-off $12.56 6 usually ships 3-14 days
36 262-0187 Blower guard screen $10.02 2 usually ships 3-14 days
37 262-0338 Flex hose $4.63 1 usually ships 3-14 days
38 262-0618 Flex hose Call for price 1 usually ships 3-14 days
39 262-0555 Wire support hose 2 inch x 34 foot (clear) $14.03 1 usually ships 3-14 days
40 262-0340 Valve $21.12 1 usually ships 3-14 days
41 262-1079 Base Call for price 1 usually ships 3-14 days
42 262-1080 Muffler edge assembly Call for price 1 usually ships 3-14 days
43 262-1081 Mega base harness Call for price 1 usually ships 3-14 days
44 262-0424 120V 3 stage vacuum motor $284.63 2 usually ships 3-14 days
N/S 262-0295 Panel $18.18 1 usually ships 3-14 days
